REPLACING THE SENSOR HEAD
Chapter E - C-ARM AND IMAGING ARM

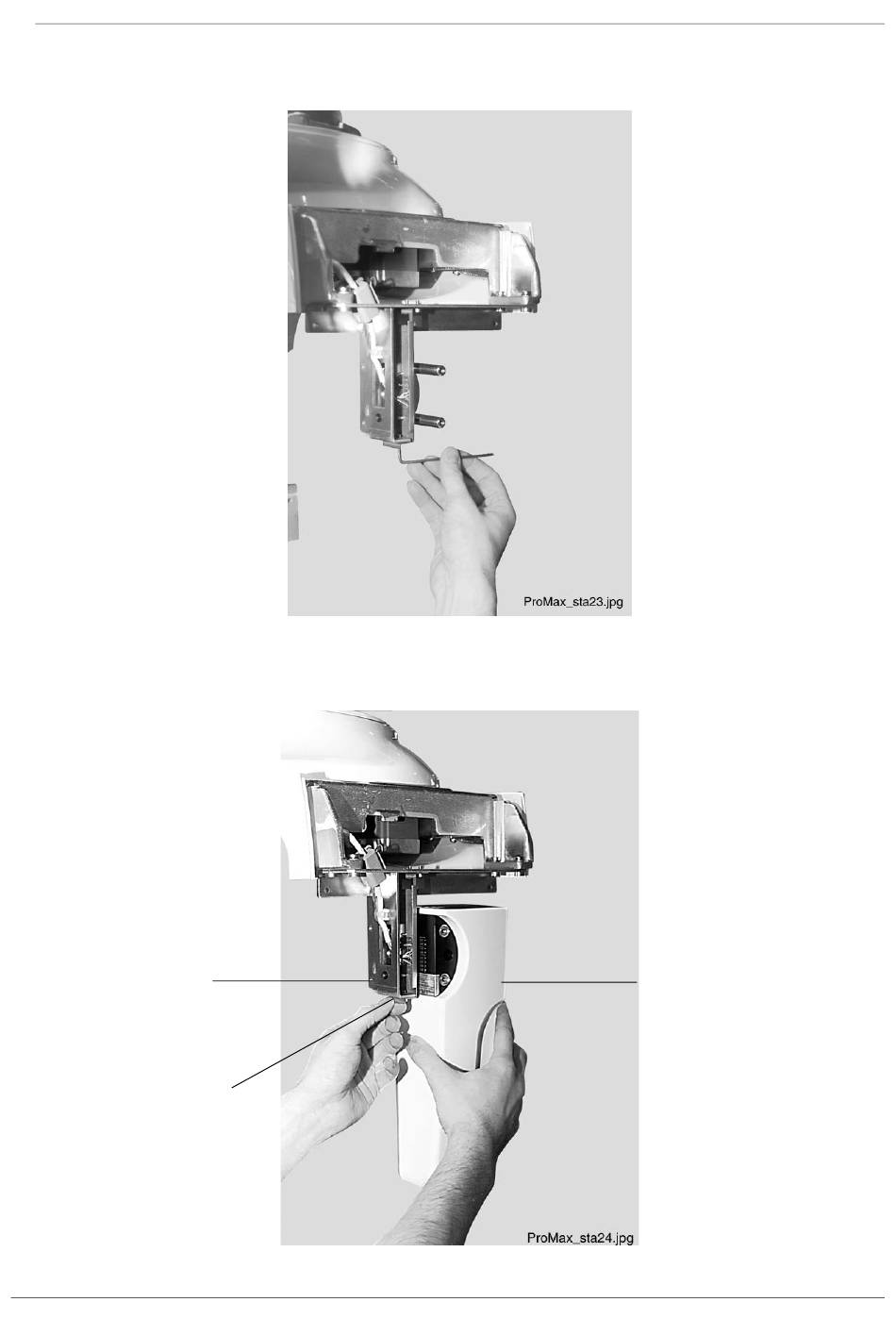

Loosen the electrical connector plate screw with the 2.5mm Allen key.
Figure 141
Pull the electrical connector plate towards the connector frame and push the sensor head to
its connector.
Connector frame
Sensor head
Electrical connector plate
Figure 142
ProMax X-ray unit with Dimax3 E-95
Technical Manual
