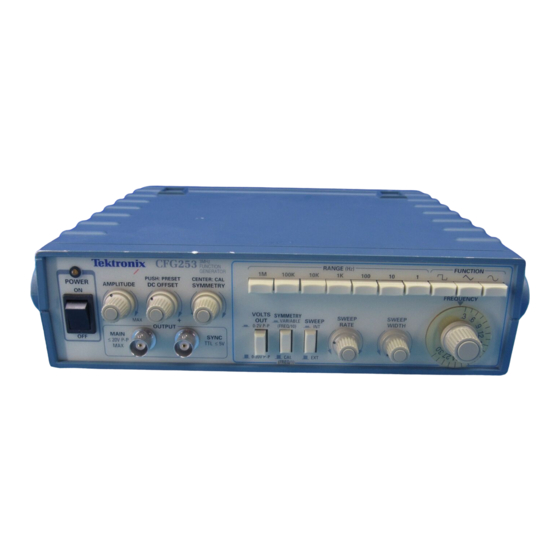

Tektronix CFG253 Service Procedures

3 mhz function generator
Hide thumbs Also See for CFG253:
Table of Contents

Advertisement

Quick Links

See also: User Manual
p
Product:
Title:
Prepared By:
REVISION LEVEL SUMMARY:
Revision # Date
A
5/16/97
CFG253
Page 1 of 19
CFG253
Performance Verification & Adjustment
Procedure #: CP1005
Roy Lindley
Measurement Business Service Support
Initiator
Roy Lindley
Performance Verification & Adjustment Procedures
Procedure #: CP1005 Revision: A
Service Procedures
3 Mhz Function Generator
Revision: A
Level Change
From:
To:
n/a
Description
Initial release

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFG253 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tektronix CFG253

Summary of Contents for Tektronix CFG253

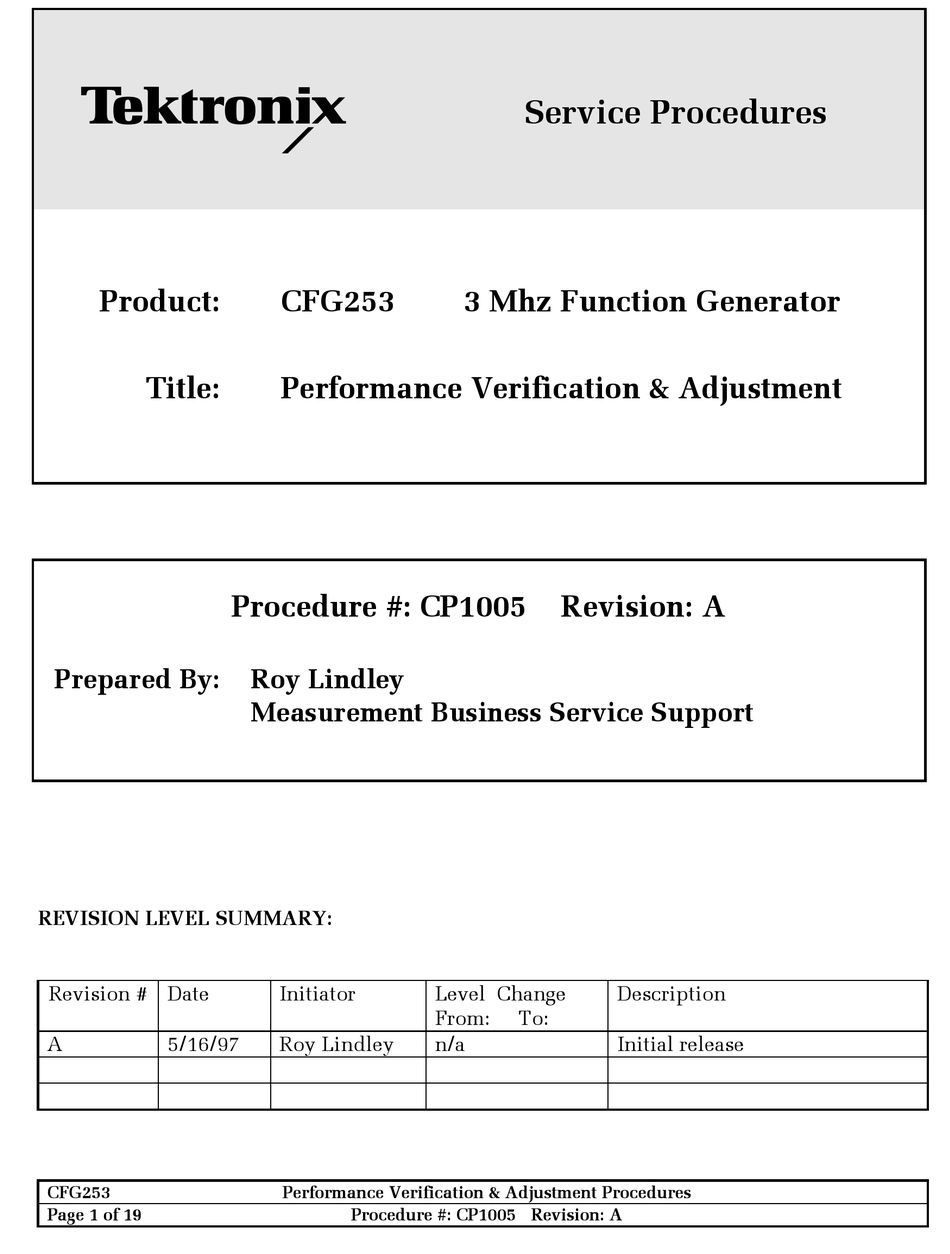

  • Page 1 Service Procedures Product: CFG253 3 Mhz Function Generator Title: Performance Verification & Adjustment Procedure #: CP1005 Revision: A Prepared By: Roy Lindley Measurement Business Service Support REVISION LEVEL SUMMARY: Revision # Date Initiator Level Change Description From: 5/16/97 Roy Lindley...
