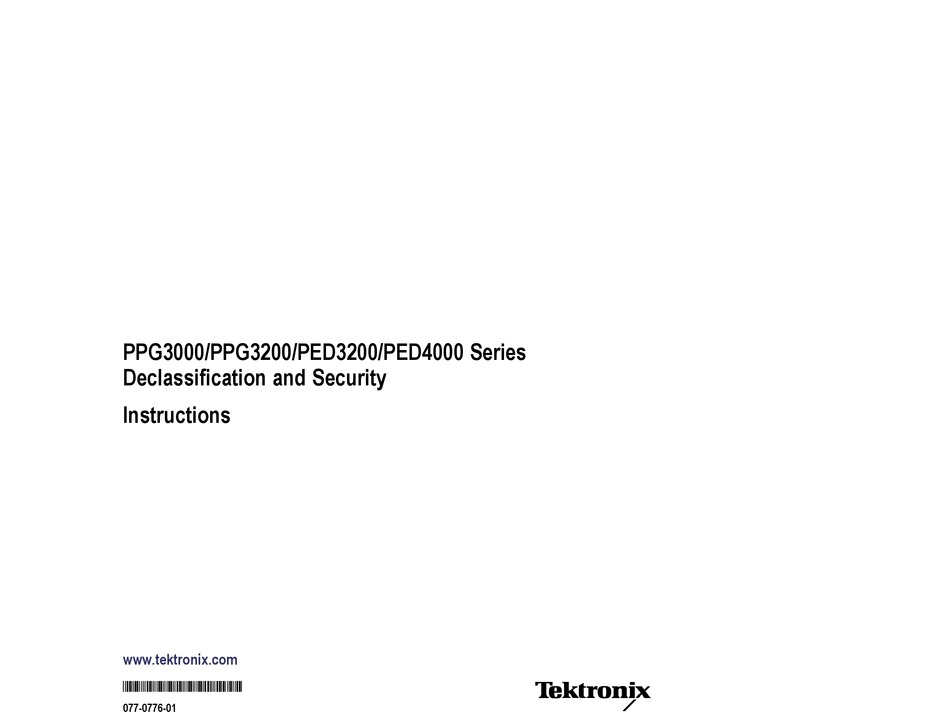

- Page 1 PPG3000/PPG3200/PED3200/PED4000 Series Declassification and Security Instructions www.tektronix.com *P077077601* 077-0776-01...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Table Of Contents
Table of Contents Preface ................................Clear and sanitize procedures ............................. Memory devices ............................... Media and data export devices ..........................Troubleshooting..............................Clear or sanitize a nonfunctional instrument ....................... Change log ................................PPG3000/PPG3200/PED3200/PED4000 Series Declassification and Security Instructions... - Page 4 Table of Contents PPG3000/PPG3200/PED3200/PED4000 Series Declassification and Security Instructions...
-
Page 5: Preface
NISPOM, DoD 5220.22–M, Chapter 8 ISFO Process Manual for Certification & Accreditation of Classified Systems under NISPOM Products The following Tektronix products are covered by this document: PPG3001, PPG3002, PPG3004 Programmable Pattern Generators PPG3201, PPG3202, PPG3204 Programmable Pattern Generators PED3201, PED3202 Programmable Error Detectors... - Page 6 Preface Media storage/data export device. Any of several devices that can be used to store or export data from the instrument, such as a USB port. Nonvolatile memory. Data is retained when the instrument is powered off. Power off. Some instruments have a “Standby” mode, in which power is still supplied to the instrument. For the purpose of clearing data, putting the instrument in Standby mode does not qualify as powering off.
-
Page 7: Clear And Sanitize Procedures
Clear and sanitize procedures Memory devices The following tables list the volatile and nonvolatile memory devices in the standard instrument and listed options. Detailed procedures to clear or sanitize these devices, if any, are shown following each table. Terminology The following terms are used in the tables in this section: User data –... - Page 8 Clear and sanitize procedures Table 1: Volatile memory devices Type and Type of user Backed-up Method of Data input User min. size Function info stored by battery modification method Location accessible To clear Process to sanitize Microprocessor Holds programs System and Indirectly Firmware Processor...
- Page 9 Restore factory defaults to functionality. (Note: instrument. Factory calibration opening instrument data remains. and removing SD card invalidates customer warranty. Contact Tektronix for more information.) Holds instrument Used to Programmed at Internal Not accessible to user Not applicable, does EEPROM configuration data...
- Page 10 Clear and sanitize procedures 6. Touch the FILE MGMT soft key. Follow the on-screen procedure to delete all user pattern data files. The instrument should now have the factory default parameters loaded and all user instrument setup files and all user pattern data files should be deleted.
-
Page 11: Media And Data Export Devices
Clear and sanitize procedures Media and data export devices The following table lists the data export devices. Procedures to disable these devices, if any, are shown following the table. Table 3: Media and data export devices Function Data input method Location User accessible Process to disable... - Page 12 Clear and sanitize procedures PPG3000/PPG3200/PED3200/PED4000 Series Declassification and Security Instructions...
-
Page 13: Troubleshooting
If your instrument is not functioning and you need to clear or sanitize it, the SD card should be removed and the instrument should be returned to Tektronix Inc. To remove the SD card, the chassis covers must be removed and the SD card must be removed from the processor board. -
Page 14: Change Log
Change log Change log Document part number Revision date Change description 077-0776-00 1-17-2013 Initial release 077–0776–01 06/25/2012 Updated for Lerxst II program to include references to the PED4000 series PPG3000/PPG3200/PED3200/PED4000 Series Declassification and Security Instructions...
