B. Monitoring Statuses

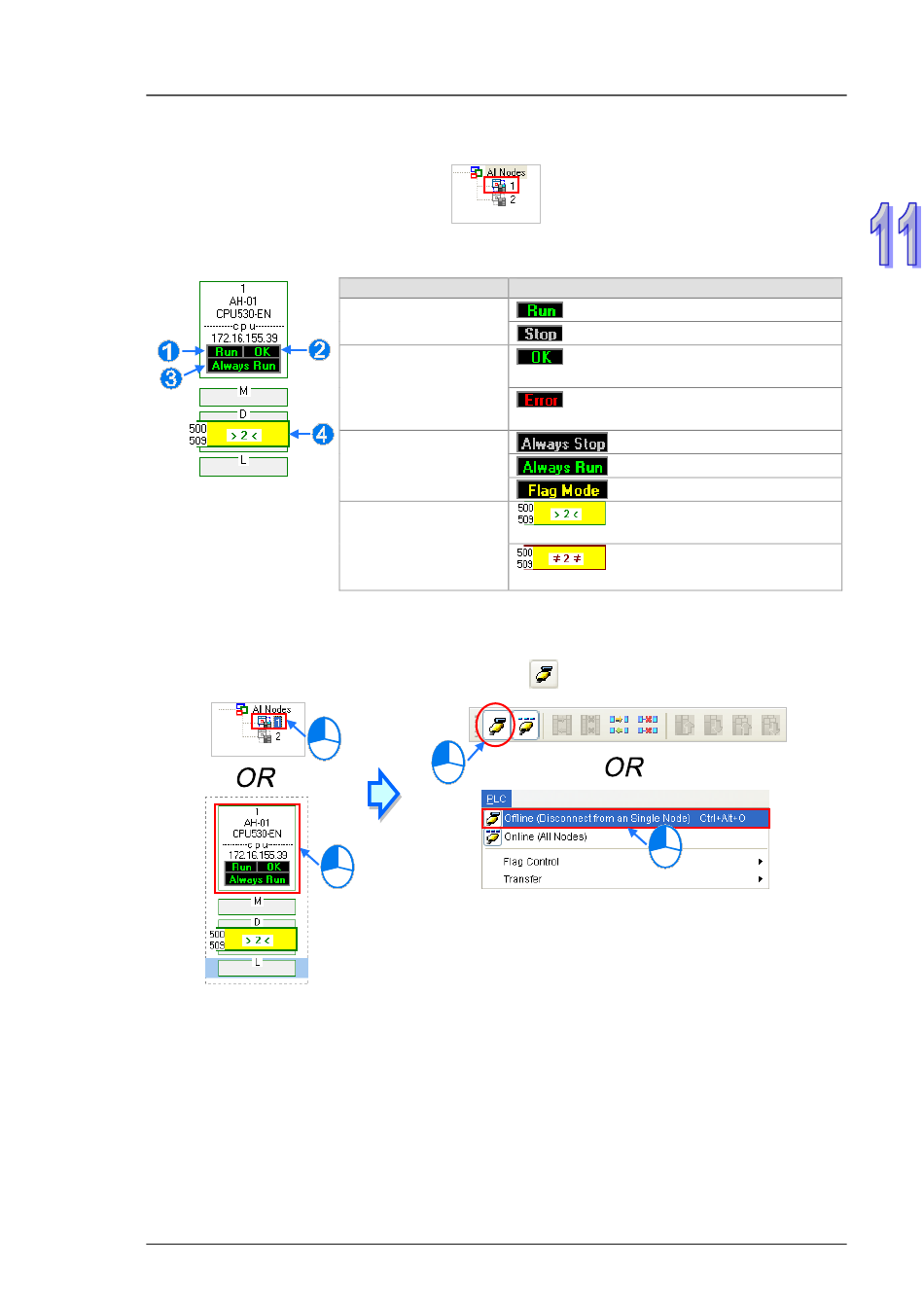

After the system enters a monitoring mode, the node which is monitored will be colored on the node list.
Besides, the words and the pictures in the display area will indicate the execution status of the current
Ether Link after the system enters a monitoring mode.
C. Disabling a Monitoring Function

Disabling the function of monitoring a single node

Method 1
Select a data demanding node, and then click
a Single node) on the PLC menu.
Status

Running/Stopping

Operating status

Start mode

Data block
C h a p t e r 11 C o n v e n i e n t F u n c t i o n s
Description
: The Ether Link constructed is executed.
: The Ether Link is not executed.
: The Ether Link constructed is executed
normally.
: The Ether Link constructed is not
executed normally.
: Always Stop
: Always Run
: SM Flag
: The data exchange is being
performed.
: The performance of the data
exchange stops.
on the toolbar, or Offline (Disconnect from
