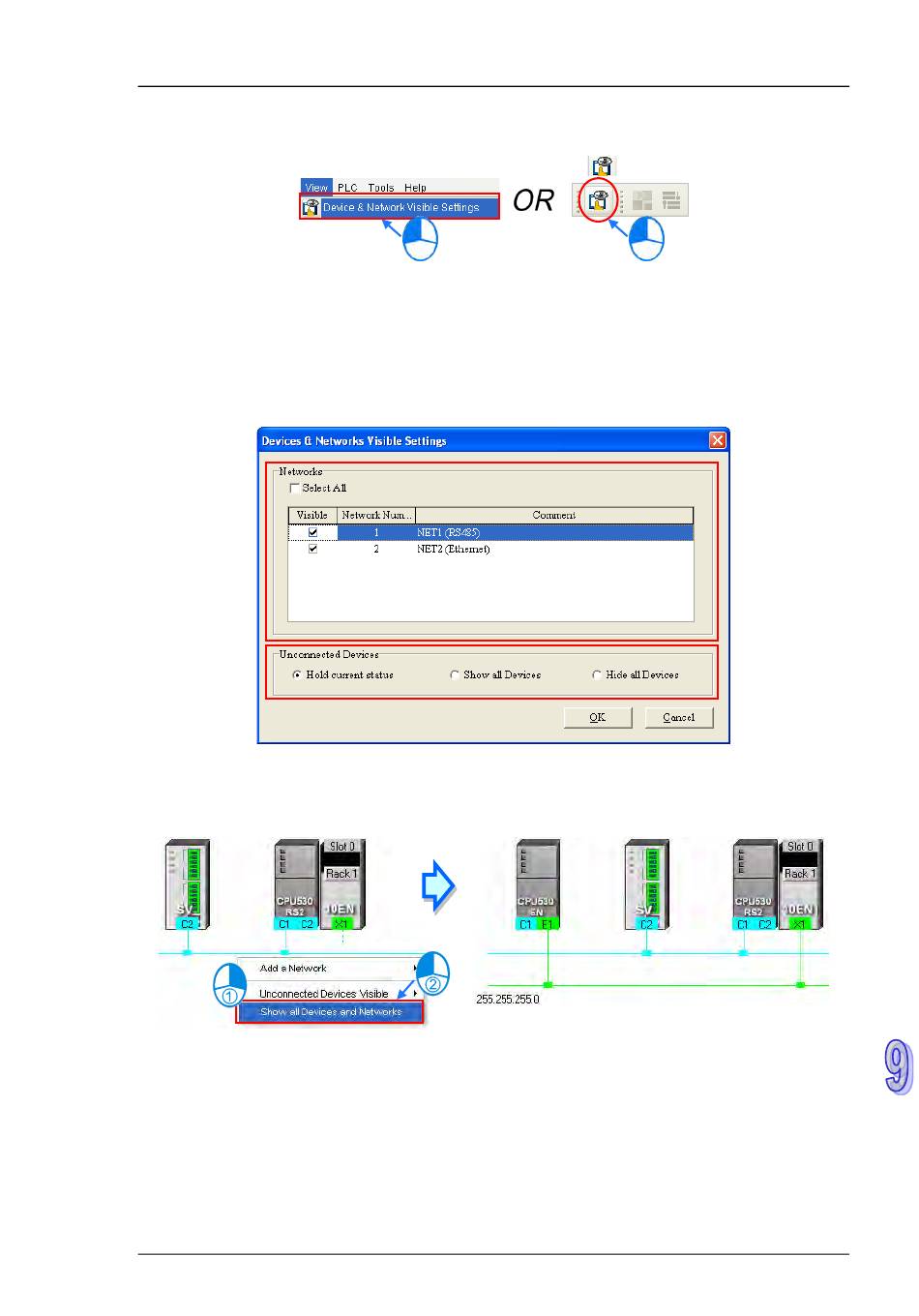

Setting the display states of all the objects at the same time
Users can set the display states of all the devices at the same time.
Click Device & Network Visible Settings on the View Menu, or
Select networks which will be displayed in the Networks section in the Devices & Networks Visible
Settings window. The networks which are not selected will not be displayed in the working area. If the
users select the Select All checkbox, all the networks in the Networks section will be selected. If the
users unselect the Select All checkbox, all the networks in the Networks section will be unselected.
In the Unconnected Devices section, the users can set the display states of the devices which are not
connected to any networks. This operation affects the devices in the present working area. It does not
affect the devices which will be added latter.

Displaying all the objects
After users right-click the blank in the working area, click Show All Devices and Networks on the context
menu, the devices and the networks which are hidden will be displayed.
C h a p t e r 9 N e t w o r k C o n f i g u r a t i o n
on the toolbar.
