A H 5 0 0 H a r d w a r e a n d O p e r a t i o n M a n u a l

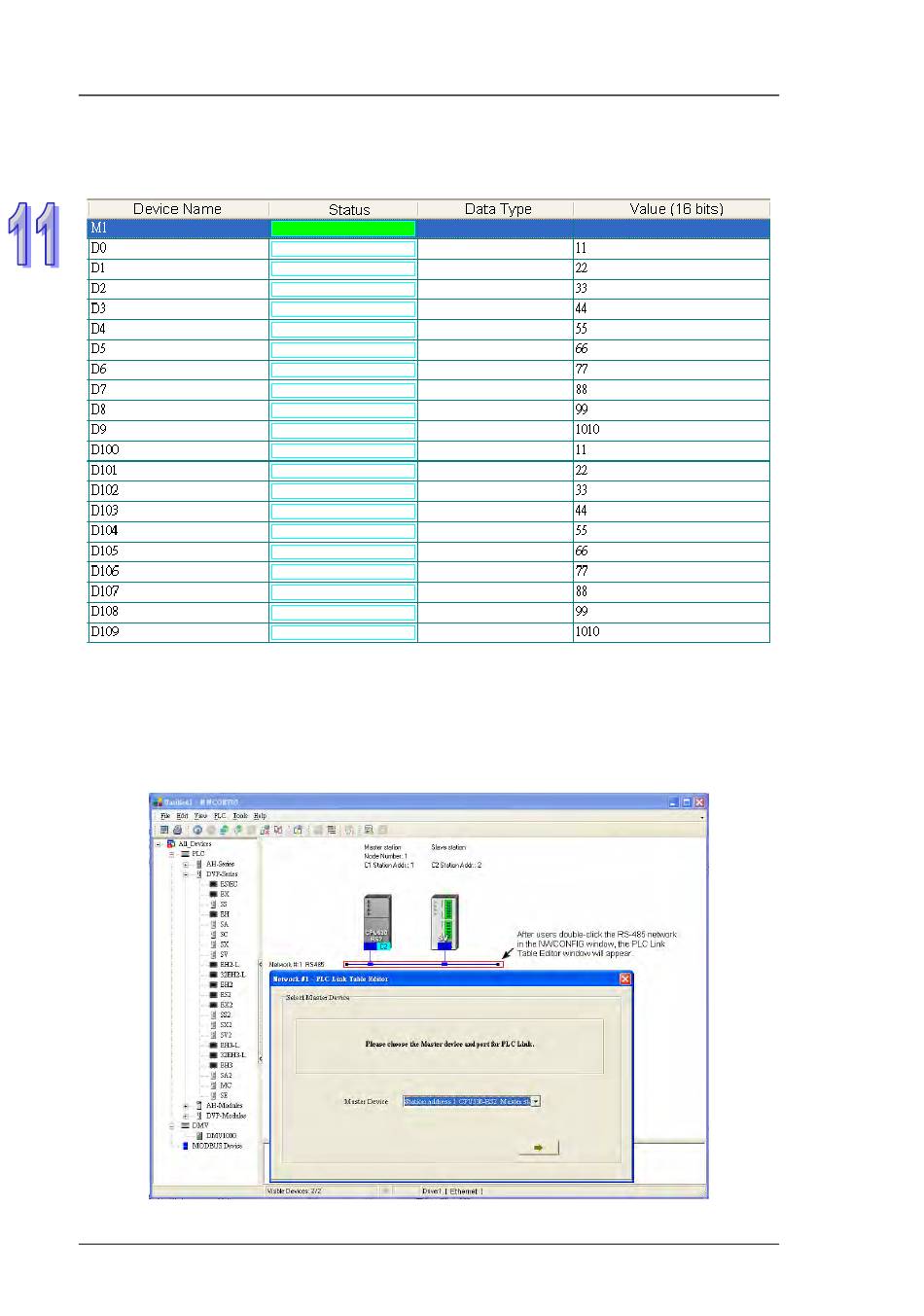

Step 2: Open the Monitor Table window in ISPSoft. Add M1, D0~D9, and D100~D109 to the window. Set

M1 to ON, and then set values for D0~D9. Users can check whether data exchange is preformed

correctly by comparing the data in D0~D9 with the data in D100~D109.

If users write a program, they will spend much time setting special data registers and special auxiliary

relays. It is more convenient for users to construct a PLC Link by means of NWCONFIG in ISPSoft.

(Please refer to section 11.1.2 for more information about NWCONFIG in ISPSoft.)

Step 1: After users double-click the RS-485 network in the NWCONFIG window, the PLC Link Table

Editor window will appear. The users have to select Station address 1 CPU530-RS2 in the

Master Device drop-down list box.
