Temperature Input Terminals
Terminal Arrangement
DRT1-TS04T
DRT1-TS04P
Wiring
Internal circuit power supply
Source: 24 V DC
Internal circuit
power supply
Temperature Conversion
Data for the DRT1-TS04T
and DRT1-TS04P
162
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Input 0
SOURCE
24 V DC
Input 0
SOURCE
24 V DC
−
Note Do not touch or remove the Cold Junction Compensator.
Input 0
SOURCE
24 V DC
Input 0
SOURCE
24 V DC

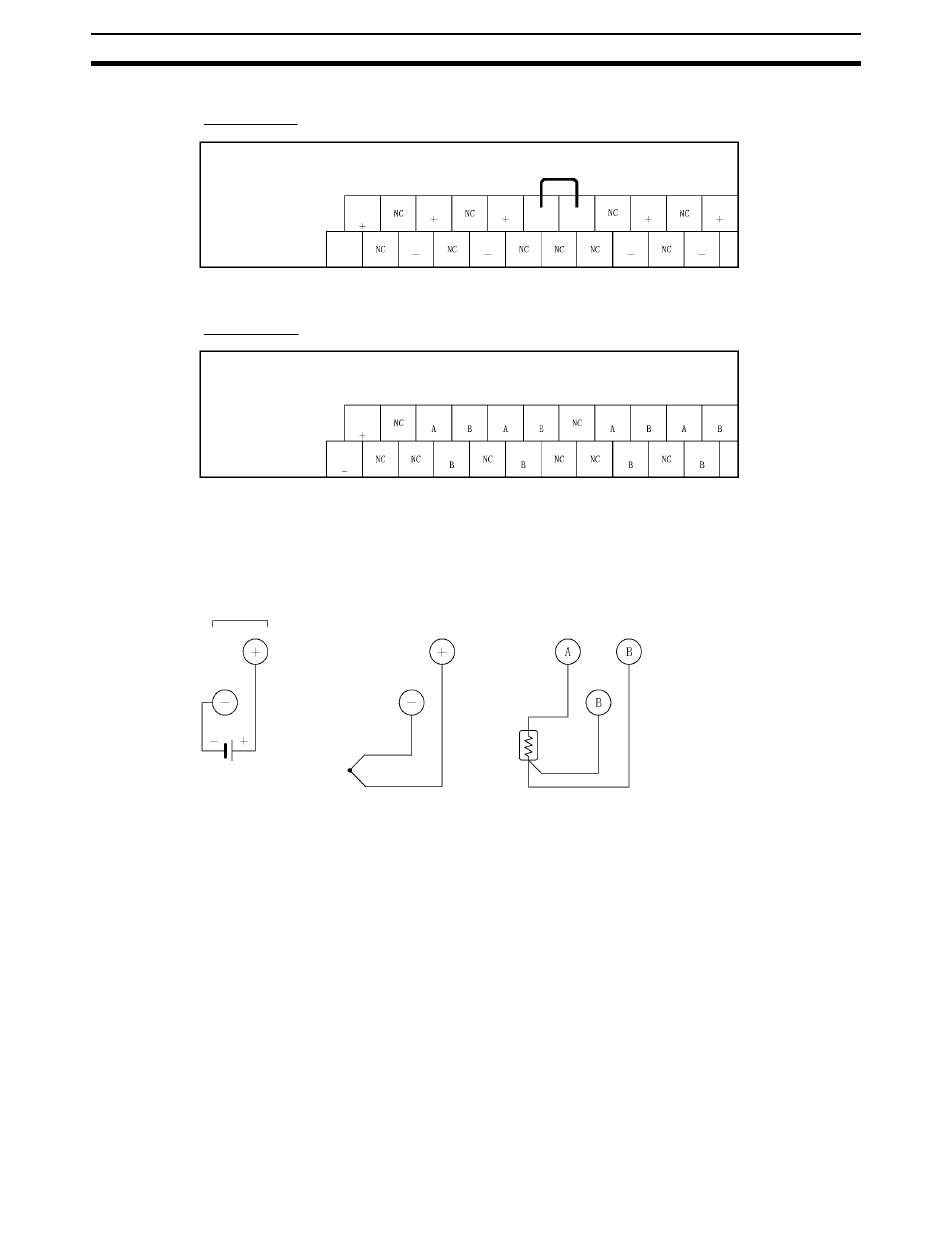

Connect the inputs to the Temperature Input Terminal's terminal block as
shown in the following diagram, depending on whether thermocouple inputs
or resistance temperature sensor inputs are used.
DRT1-TS04T
Thermocouple input
Data that is input is converted to binary data (4-digit hexadecimal) and the
Master is notified. If the converted data is a negative number, it is expressed
as a two's complement.
Cold Junction Compensator
Input 1 Input 2
Input 1 Input 2
Input 0 Input 1 Input 1 Input 2 Input 2
Input 1 Input 2
DRT1-TS04P
Resistance temperature sensor input
Section 4-9
Input 3
Input 3
Input 3 Input 3
Input 3
