Transistor Remote I/O Terminals with 3-tier I/O Terminal Blocks
Mounting Direction
4-4-9

Wiring Internal Power Supplies, I/O Power Supplies, and I/O Lines

Wiring the Internal Power
Supply
Wiring the I/O Power
Supply
86
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

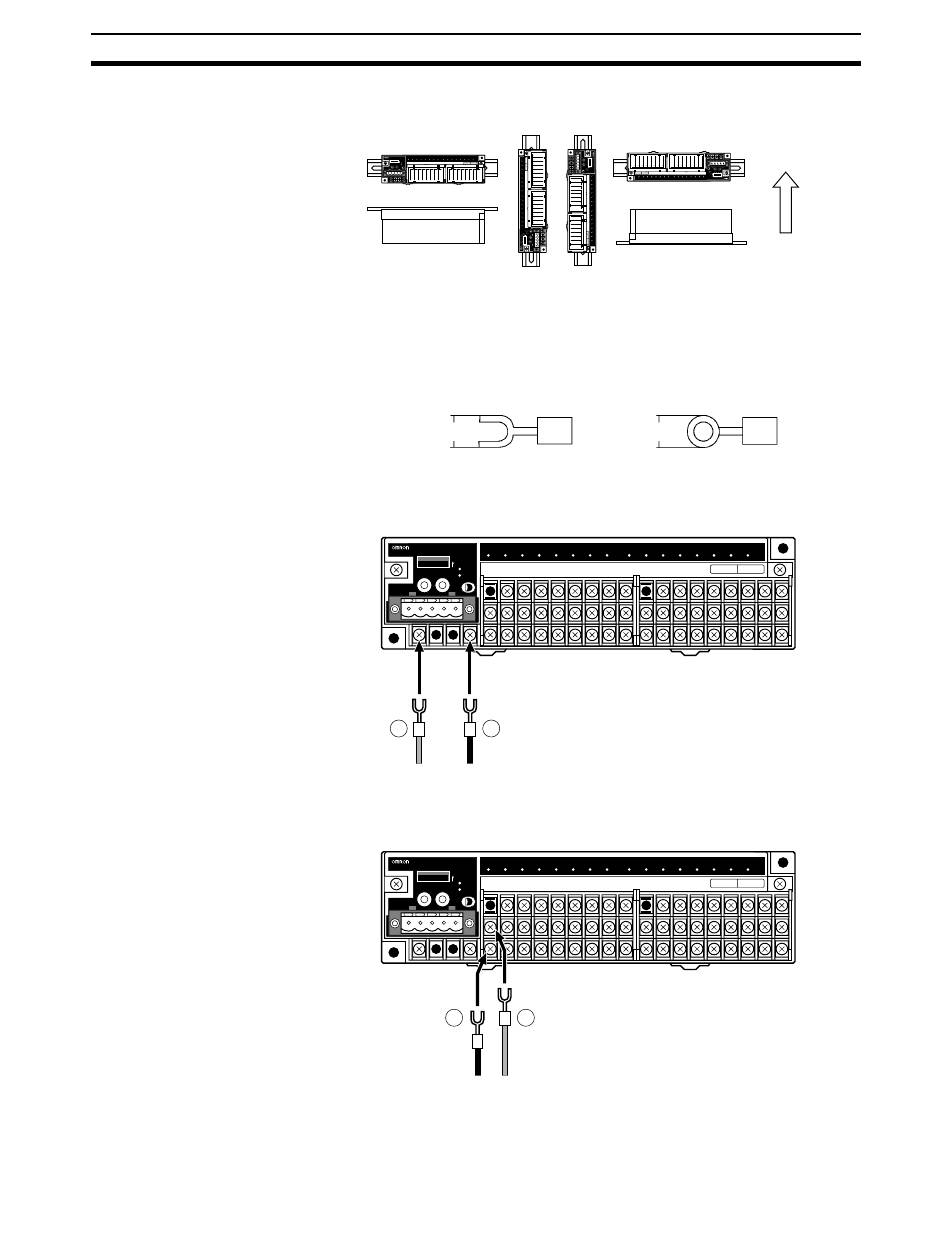

Unless specific restrictions are given for the Slave, it can be mounted in any
direction. Any of the following directions are okay.
DRT1-ID16T 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
REMOTE TERMINAL DC24V
ON
DR0 DR1 NC NC MS IN
NS
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
The internal circuit power supplies, I/O power supplies, and I/O lines are all
wired to M3 screw terminals. Connect M3 crimp terminals and then connect
them to the terminal block. Tighten the screws fixing the crimp terminals to a
torque of 0.3 to 0.5 N ⋅ m.
6.0 mm max.
Refer to the wiring details for each Slave for information on the terminal
arrangement at the terminal block. The following example shows the internal
power supply for a DRT1-ID16T Remote Input Terminal
DRT1-ID16T
0
REMOTE TERMINAL DC24V
ON
MS
DR0
NS
−
+
Refer to the wiring details for each Slave for information on the terminal
arrangement at the terminal block. The following example shows the I/O
power supply for a DRT1-ID16T Remote Input Terminal.
DRT1-ID16T
0
REMOTE TERMINAL DC24V
ON
MS
DR0
NS
−
6.0 mm max.
1 2 3 4 5 6 7 8 9 10 11
1 2 3 4 5 6 7 8 9 10 11
+
Section 4-4
Vertical
12 13 14 15
IN
12 13 14 15
IN
