Environment-resistive Terminals (IP66)
5-3-6 Environment-resistive Terminal (IP66) with 8 Inputs 8 Outputs:
DRT1-MD16C (NPN) and DRT1-MD16C-1 (PNP)
Specifications
Components
DIP switch pins 1 and 2:
Baud rate
(Refer to page 179)
Rotary switches 1 and 2:
Node address
(Refer to page 179)
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Input Specifications
Item
Model
Internal I/O common
Input points
ON voltage
OFF voltage
OFF current
Input current
ON delay time
OFF delay time
Number of circuits
Output Specifications
Item
Model
Internal I/O common
Output points
Rated output current
Residual voltage
Leakage current
ON delay time
OFF delay time
Number of circuits

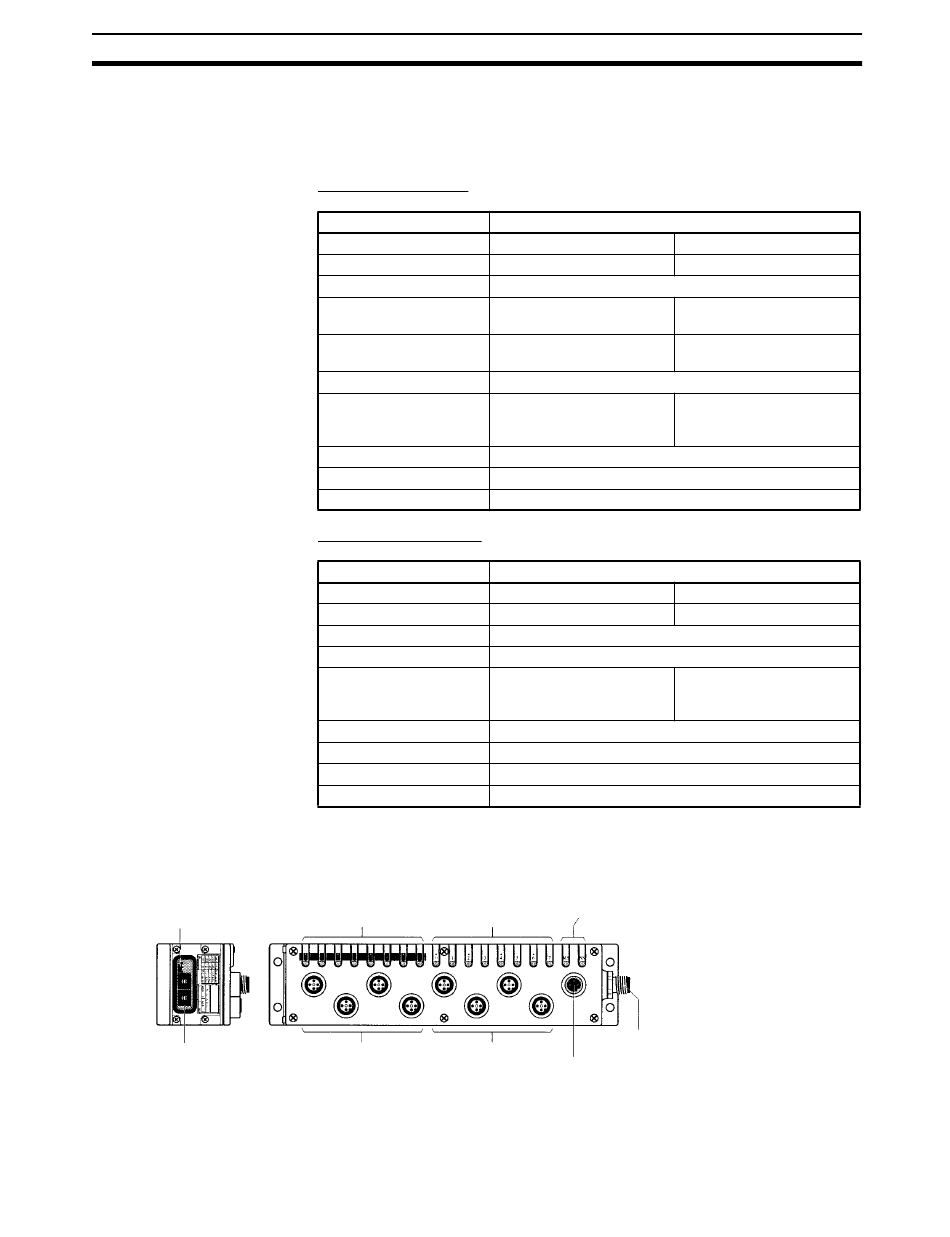

The following diagram shows the main components of the DRT1-MD16C and
DRT1-MD16C Environment-resistive Terminals.
Input indicators
Output indicators
Indicates the input status
Indicates the output
of each contact.
status of each contact.
(Lit when the input is ON.)
(Lit when the output is ON.)
Output connector
Input connector
Specification
DRT1-MD16C
NPN
8 points (Uses one word in Master.)
15 V DC min. (between
each input terminal and V)
5 V DC max. (between
each input terminal and V)
1 mA max.
6 mA max./point at 24 V DC
(between each input termi-
nal and V)
1.5 ms max.
2.5 ms max.
8 points with one common
Specification
DRT1-MD16C
NPN
8 points (Uses one word in Master.)
0.3 A/point, 2.4 A/common
1.2 V max. (at 0.3 A,
between each output termi-
nal and G)
0.1 mA max.
0.5 ms max.
1.5 ms max.
8 points with one common
DeviceNet indicators
(Refer to page 312.)
DeviceNet communications
connector
External power supply connector
Section 5-3
DRT1-MD16C-1
PNP
15 V DC min. (between
each input terminal and G)
5 V DC max. (between
each input terminal and G)
6 mA max./point at 24 V DC
(between each input termi-
nal and G)
DRT1-MD16C-1
PNP
1.2 V max. (at 0.3 A,
between each output termi-
nal and V)
