Transistor Remote I/O Terminals With 8 Inputs And 8 Outputs And 3-Tier I/O Terminal Blocks: Drt1-Md16Ta (Npn) And Drt1-Md16Ta-1 (Pnp) - Omron DeviceNet CV Series Operation Manual

Transistor Remote I/O Terminals with 3-tier I/O Terminal Blocks
4-4-7 Transistor Remote I/O Terminals with 8 Inputs and 8 Outputs and
3-tier I/O Terminal Blocks:
DRT1-MD16TA (NPN) and DRT1-MD16TA-1 (PNP)
Input Specifications
Output Specifications
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

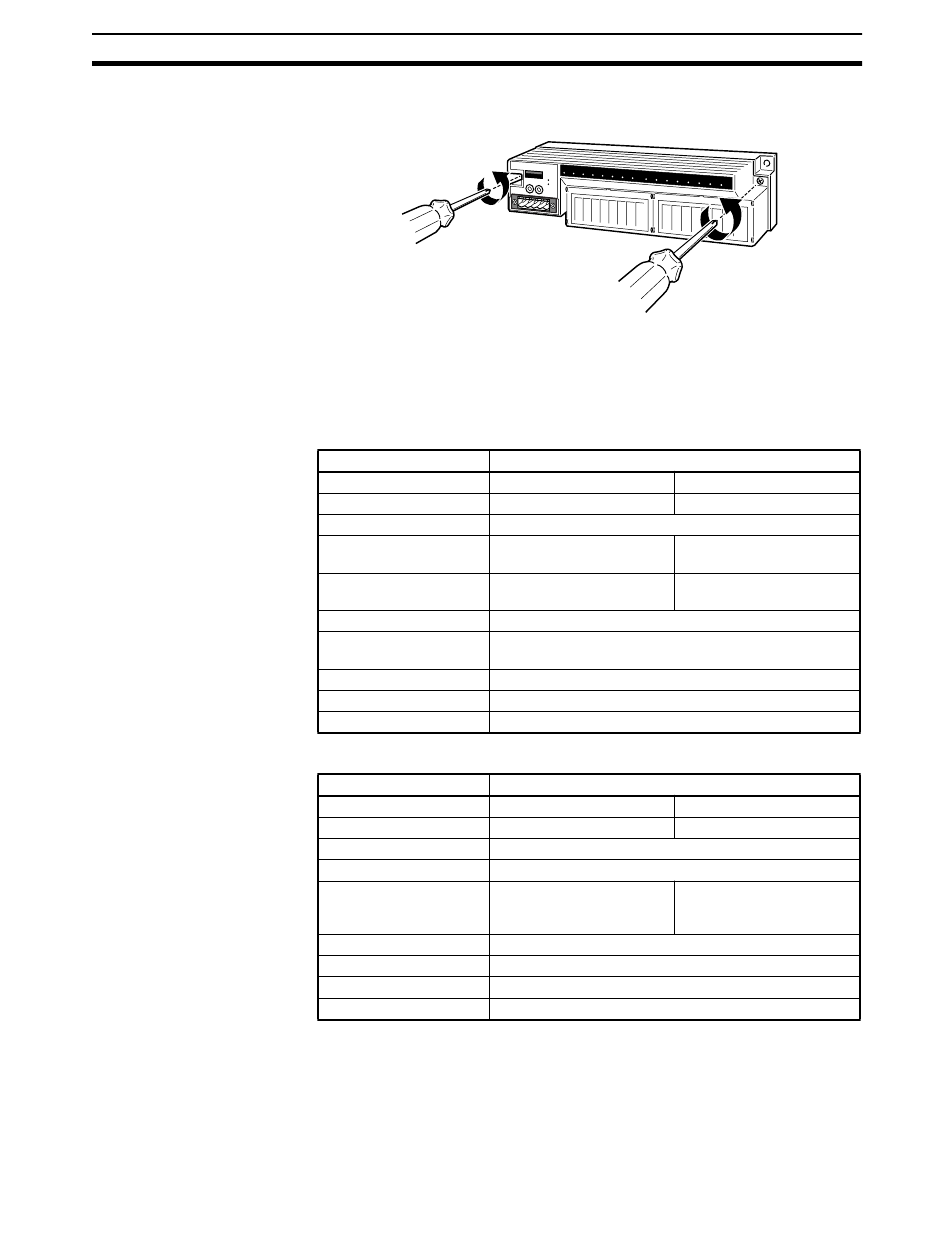

Always turn OFF the communications, internal, and I/O power supplies before
removing or attaching the circuit section.
Item
Model DRT1-MD16TA
Internal I/O common NPN
Input points 8 points
ON voltage 15 V DC min. (between
each input terminal and V)
OFF voltage 5 V DC max. (between
each input terminal and V)
OFF current 1.0 mA max.
Input current 6.0 mA max./point at 24 V DC
3.0 mA min./point at 17 V DC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
Item
Model DRT1-MD16TA
Internal I/O common NPN
Output points 8 points
Rated output current 0.5 A/point
Residual voltage 1.2 V max. (at 0.5 A,
between each output termi-
nal and G)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
Section 4-4
Specification
DRT1-MD16TA-1
PNP
15 V DC min. (between
each input terminal and G)
5 V DC max. (between
each input terminal and G)
Specification
DRT1-MD16TA-1
PNP
1.2 V max. (at 0.5 A,
between each output termi-
nal and V)
81
