Transistor Remote I/O Terminals with 3-tier I/O Terminal Blocks
Setting Pins 3 and 4
4-4-2 Transistor Remote Input Terminals with 16 Points and 3-tier I/O
Terminal Blocks: DRT1-ID16T (NPN) and DRT1-ID16T-1 (PNP)
Input Specifications
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

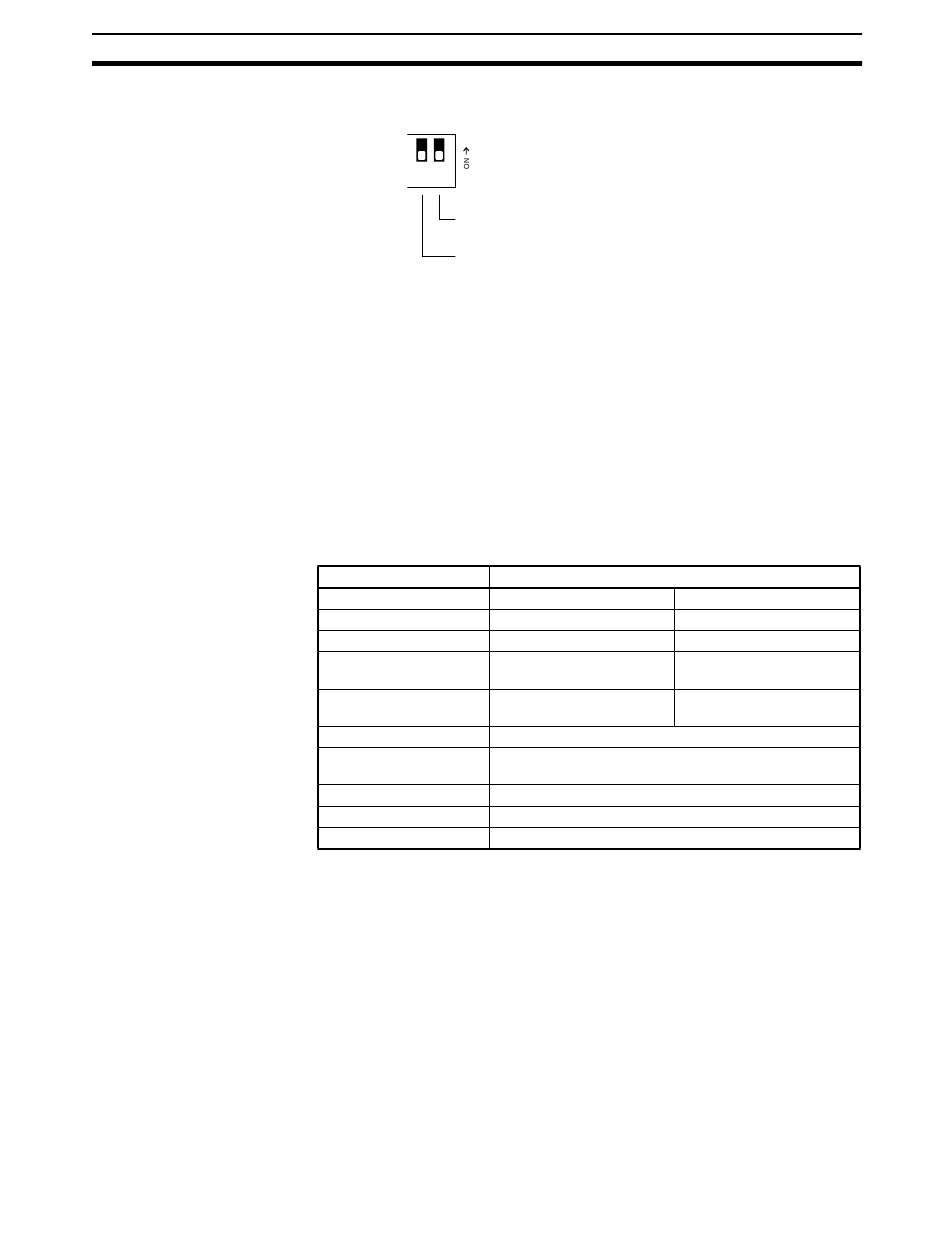

The functions of pins 3 and 4 differ for inputs and outputs, as shown in the fol-
lowing diagram.
3 4
Input: Not used (Always OFF)
Output: Hold/Clear outputs for communications error
Reserved: Always OFF
Pin 3: Reserved (Always OFF)
Pin 4: As follows:
Inputs: No function (Always OFF)
Outputs: Hold/Clear outputs for communications error
OFF (Clear): All output data from the Master will be cleared to 0 when a
communications error occurs.
ON (Hold): All output data from the Master will be retained when a
communications error occurs.
Pins 3 and 4 are factory-set to OFF.
Item
Model DRT1-ID16T
Internal I/O common NPN
Input points 16 points
ON voltage 15 V DC min. (between
each input terminal and V)
OFF voltage 5 V DC max. (between
each input terminal and V)
OFF current 1.0 mA max.
Input current 6.0 mA max./point at 24 V DC
3.0 mA min./point at 17 V DC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with two commons
Section 4-4
Specification
DRT1-ID16T-1
PNP
15 V DC min. (between
each input terminal and G)
5 V DC max. (between
each input terminal and G)
63
