System Configuration Example; Preparations - Omron DeviceNet CV Series Operation Manual

Preparations

2-1-2

System Configuration Example

C200H-OD215
Output Unit
C200HX PLC
H7F 7-segment
Display Device
DRT1-ID16 Remote
I/O Terminal
16 transistor inputs
(Node 01)
DRT1-OD16 Remote
I/O Terminal
16 transistor outputs
(Node 02)
2-2 Preparations
Selecting Units
Wiring
Communications Power
Supply
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

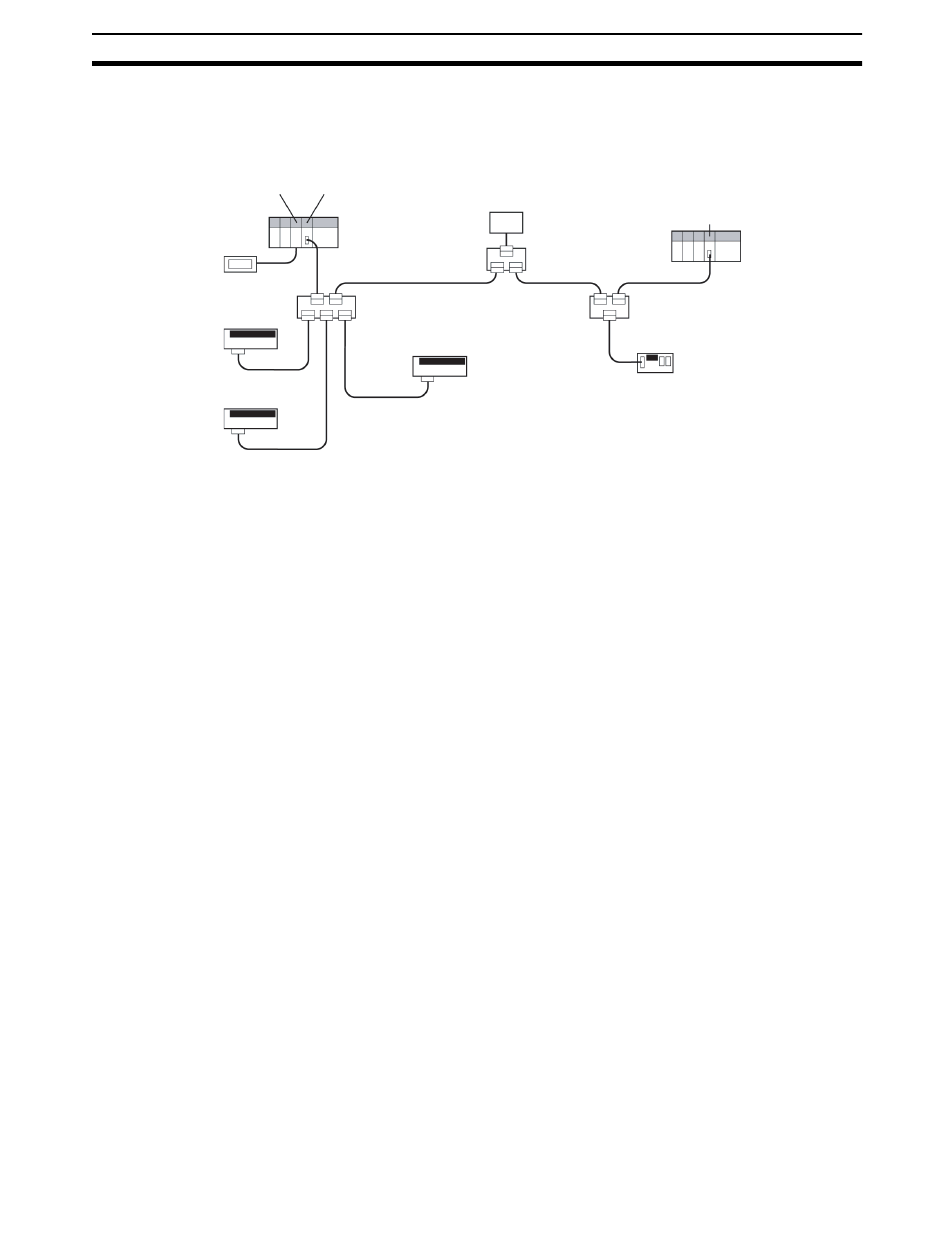

The following diagram shows the operating procedure using a system config-
uration example. The system configuration shown here uses Thin Cables.
C200HW-DRM21-V1 Master Unit
S82K-05024 24-V DC Power Supply
(Node 00)
(100 V AC, 50 W)
DCN1-3 T-branch Tap with
Terminating Resistor
DRT1-TS04T Temperature Input Terminal
with 4 inputs (allocated 4 words)
(Node 03)
Power is supplied to each node in the above diagram using the following
devices.
Internal power: S82K-05024 (100 V AC, 50 W)
I/O power: S82K-05024 (100 V AC, 50 W)
Select the following Units as shown in 2-1-2 System Configuration Example .
Master Unit:
Slave Units:
There is a complete line of OMRON Master Units and Slave Units available
that are compatible with DeviceNet. Select Units that suit the needs of the
system. For further details on types of Units, refer to 1-1-2 Slaves .
Either Thick Cables or Thin Cables can be used to wire a DeviceNet Network.
Flexible branching of cables is possible by using either T-branch Taps or
multi-drop connections. Restrictions on the maximum network length and total
branch line length depends on the baud rate and type of cable used. For
details, refer to the DeviceNet Operation Manual (W267) .
In 2-1-2 System Configuration Example , Thin Cables are used with T-branch
Taps for connecting Slave Units to the trunk line.
Each node (Master or Slave) must be supplied with a 24-V DC power supply
for proper DeviceNet communications. The communications power, however,
can be supplied by communications cables and does not require separate wir-
ing.
For systems that have a short maximum network length, power can be sup-
plied to all nodes by using one communications power supply. Various condi-
tions, constraints, and measures affect how the communications power is
DCN1-1C T-branch Tap
DCN1-1C T-branch Tap with
Terminating Resistor
C200HW-DRM21-V1
DRT1-ID16
DRT1-OD16
DRT1-TS04T
C200HW-DRT21
DRT1-232C2
Section 2-2
C200HW-DRT21 I/O Link Unit
(Node 07)
C200HX PLC
DRT1-232C2 RS-232C Unit
allocated 1 input word
(Node 08)
15
