Waterproof Terminals (IP67)
Dimensions
5-4-5 Waterproof Terminal (IP67) with 8 Transistor Outputs:
DRT1-OD08CL (NPN) and DRT1-OD08CL-1 (PNP)
Output Specifications
210
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

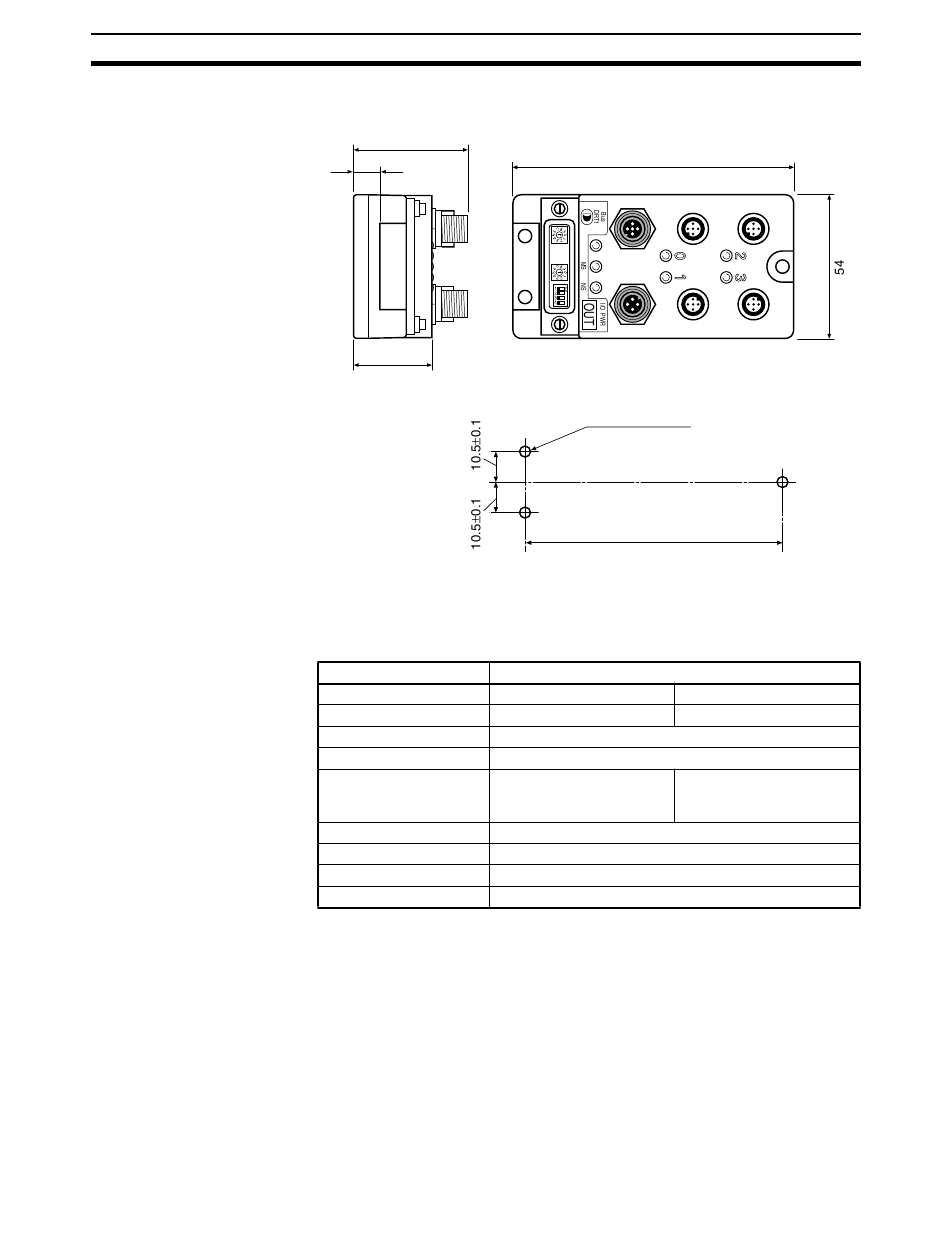

The following diagram shows the dimensions for the DRT1-OD04CL and
DRT1-OD04CL-1 Waterproof Terminals. All dimensions are in mm.
45
10
30
Item
Model DRT1-OD08CL
Internal I/O common NPN
Output points 8 points (Uses one word in Master.)
Rated output current 0.5 A/point, 2.4 A/common
Residual voltage 1.2 V max. (at 0.5 A,
between each output termi-
nal and G)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
114
Mounting holes
Three, 4.0 dia. or M5
104±0.2
Specification
DRT1-OD08CL-1
PNP
1.2 V max. (at 0.5 A,
between each output termi-
nal and V)
Section 5-4
