6-2-12 Rs-232C Unit Application Examples - Omron DeviceNet CV Series Operation Manual

RS-232C Units

6-2-12 RS-232C Unit Application Examples

C200HW-DRM21-V1 Master Unit
(node address 00, unit number 0)
C200HX PLC
Setting Port Parameters
288
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

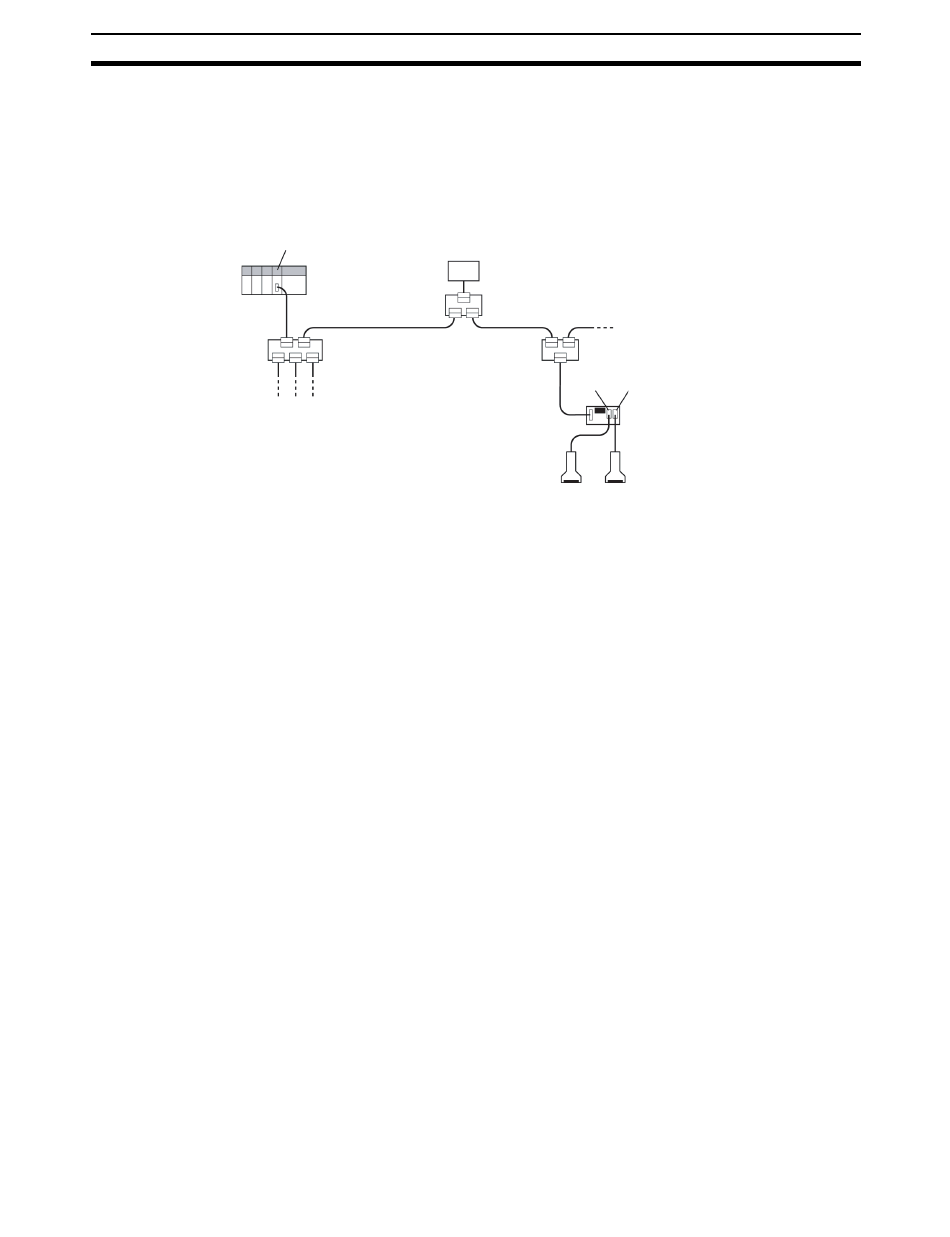

This section explains the procedure for using explicit messages with an RS-
232C Unit. The following system configuration example is used in this exam-
ple. When explicit messages are used with an RS-232C Unit, the communica-
tions conditions for ports 1 and 2 on the RS-232C Unit can be set individually,
and data can be read or written to the RS-232C Unit.
24-V DC power supply
T-branch Tap
Terminating Resistor
T-branch Tap
When IR 00000 (port 1 settings) or IR 00001 (port 2 settings) turns ON in the
CPU Unit of the Master Unit, the RS-232C Unit's port parameters will be set.
For details on Bar Code Reader settings, refer to the Bar Code Reader's
Operation Manual .
Set the port parameters as follows:
• Port 1 Parameters
Data length: 8 bits
Parity: None
Stop bits: 1
Header code: Disabled
Delimiter code: Enabled
Flow control: Enabled
Baud rate: 9,600 bps
Delimiter code
CR code: 0D Hex
Number of bytes received after delimiter:0
• Port 2 Parameters
Data length: 7 bits
Parity: Even
Stop bits: 2
Header code: Enabled
Delimiter code: Enabled
Flow control: Disabled
Baud rate: 2,400 bps
Header code
STX code: 02 Hex
Terminating Resistor
T-branch Tap
Port 1 Port 2
DRT1-232C2 RS-232C Unit
(node address 08)
Bar Code Bar Code
Reader 1 Reader 2
Section 6-2
