Omron DeviceNet CV Series Operation Manual page 69

Transistor Remote I/O Terminals
Dimensions
Mounting holes
52
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

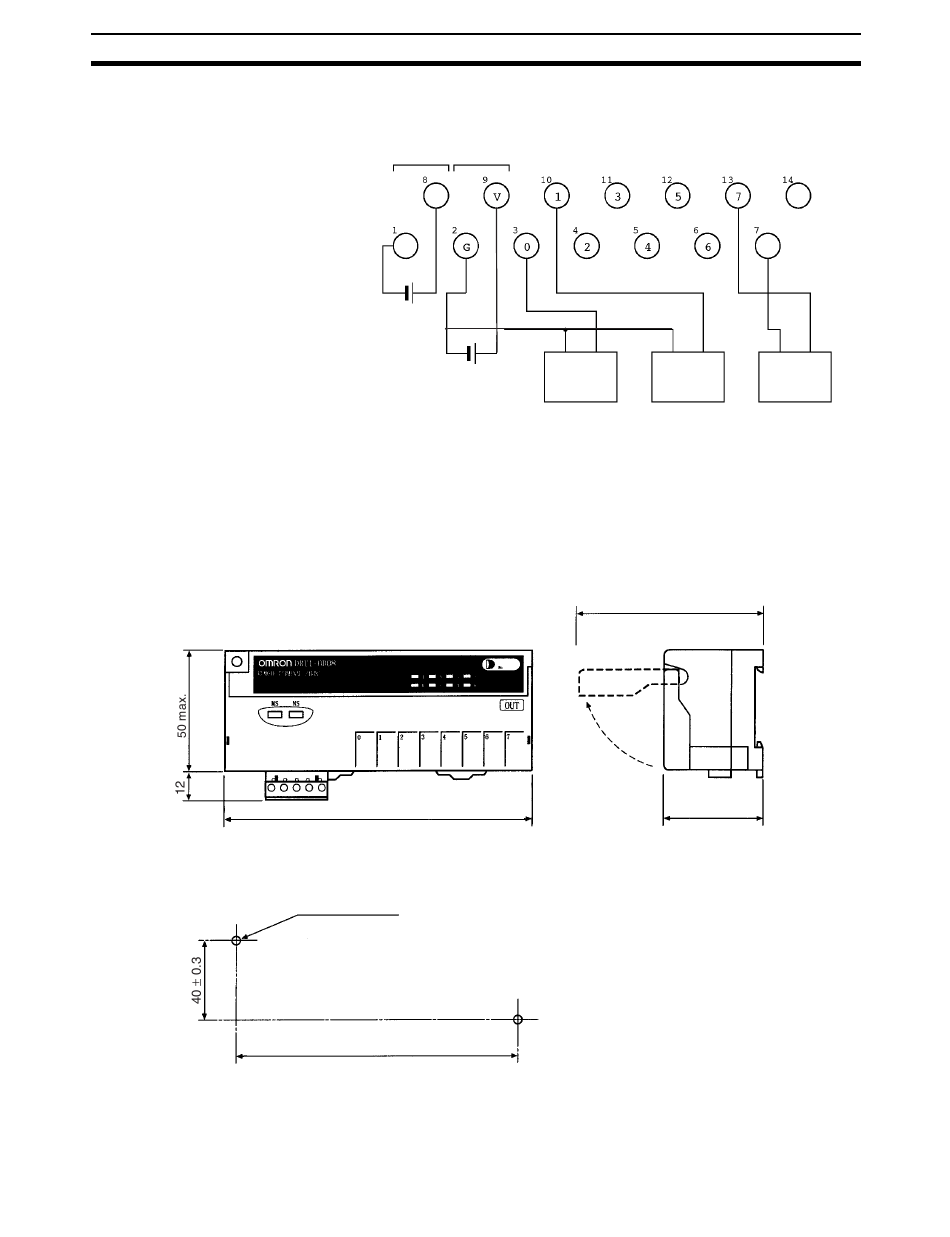

The following diagram shows the wiring of the DRT1-OD08-1 Remote Output
Terminal.
SOURCE
24 V DC
+
–
– +
Internal circuits
power supply
I/O power supply
Note The G terminals (terminal numbers 2, 7, and 14) are connected internally.
When I/O power is supplied to terminal 2, power can be supplied to output
devices from terminals 7 and 14.
When the power supply exceeds 1.2 A, the power supply should not be input
through the terminals; an external power supply must be used instead.
The following diagram shows the dimensions for the DRT1-OD08 and DRT1-
OD08-1 Remote Output Terminals. All dimensions are in mm.
(With connector attached)
125 max.
Two, 4.2 dia. or M4
115 ± 0.3
24 V DC
– +
Solenoid
Section 4-3
G
G
Valve Solenoid
Approx. 73
40 max.
