6-2-11 Wiring - Omron DeviceNet CV Series Operation Manual

RS-232C Units
Mounting Direction

6-2-11 Wiring

Internal Power Supply
Note
286
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Connecting End Plates

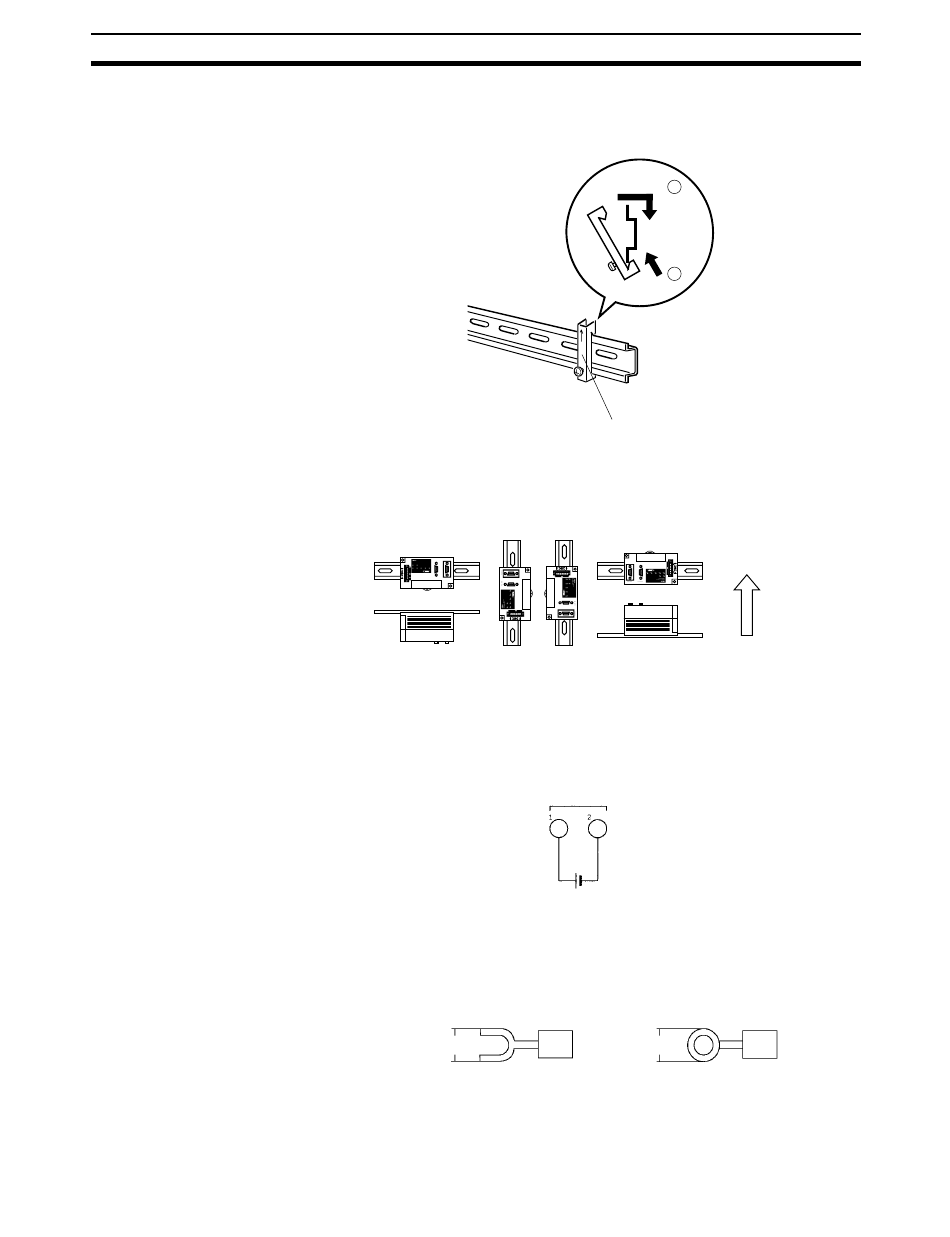

Hook the bottom of the End Plate onto the DIN Track, as shown at (1) in the
following diagram, then hook the top of the End Plate as shown at (2).
Note Always attach End Plate to both ends of Slaves connected to DIN Track.
Unless specific restrictions are given for the Slave, it can be mounted in any
direction. Any of the following directions are okay.
PORT1 PORT2
DRT1-232C2
RS232C UNIT
MS NS
ERR RD1 SD1 RD2 SD2
No.
The recommended Power Supply Units are as follows:
• S82K-05024 (OMRON) or equivalent.
• S82J-@524 (OMRON) or equivalent.
1. Always use crimp terminals for wiring.
2. Do not connect wires directly to the terminals.
3. Tighten terminal screws to a torque of 0.3 to 0.5 N • m.
4. Use the following M3 crimp terminals.
6.0 mm max.
2
1
End Plate
Source
24 V DC
–
+
+ –
Internal power supply
6.0 mm max.
Section 6-2
Vertical
