Transistor Remote I/O Terminals
Wiring the Internal Power
Supply
Wiring the I/O Power
Supply
Wiring I/O
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

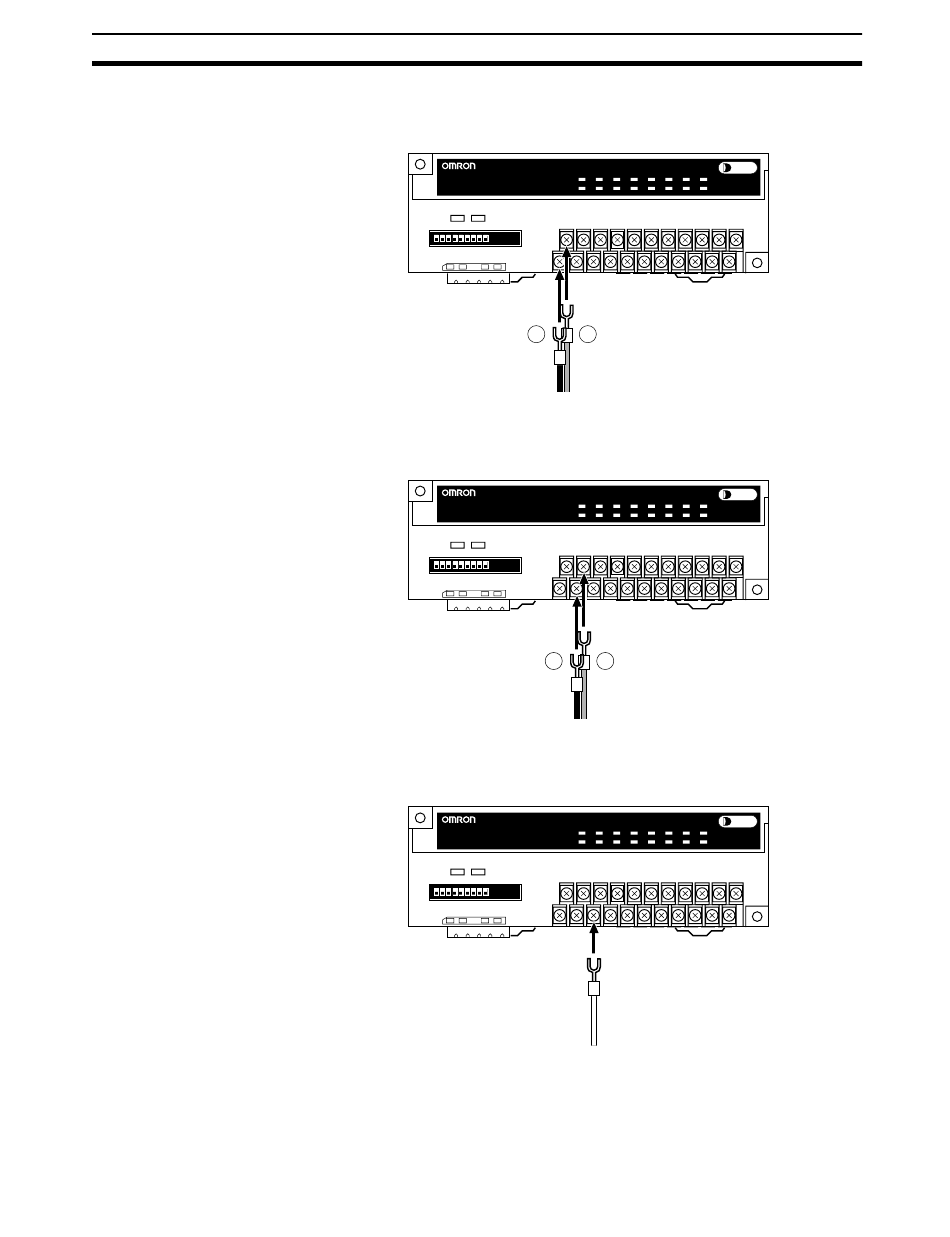

Refer to the wiring details for each Slave for information on the terminal
arrangement at the terminal block. The following example shows the internal
power supply for a DRT1-ID16 Remote Input Terminal.
DRT1-ID16
REMOTE TERMINAL 24VDC
Refer to the wiring details for each Slave for information on the terminal
arrangement at the terminal block. The following example shows the I/O
power supply for a DRT1-ID16 Remote Input Terminal.
DRT1-ID16
REMOTE TERMINAL 24VDC
Refer to the wiring details for each Slave for information on the terminal
arrangement at the terminal block and external I/O wiring. The following
example shows the wiring to input 0 on a DRT1-ID16 Remote Input Terminal.
DRT1-ID16
REMOTE TERMINAL 24VDC
1 3 5 7 9 11 13 15
0 2 4 6 8 10 12 14
−
+
1 3 5 7 9 11 13 15
0 2 4 6 8 10 12 14
−
+
1 3 5 7 9 11 13 15
0 2 4 6 8 10 12 14
Section 4-3
No.
No.
No.
61
