Omron DeviceNet CV Series Operation Manual page 143

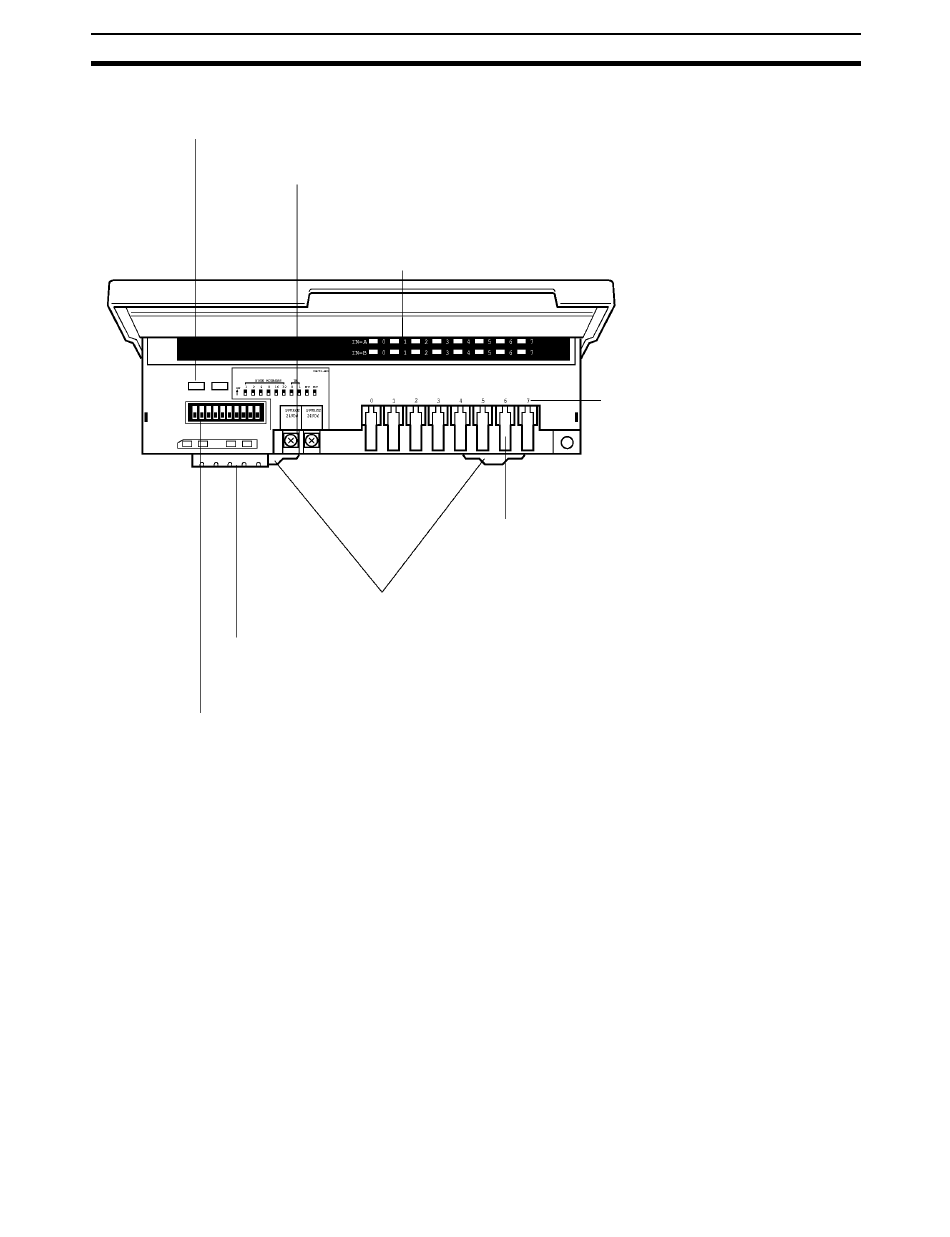

Sensor Terminals
Components
DeviceNet Indicators
(Refer to page 312.)
Power supply terminals
Communications connector
DIP switch
(Refer to page 40.)
Pins 1 to 6: Node address setting
Pins 7 and 8: Baud rate setting
Pin 9 and 10: Reserved (Always OFF.)
126
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
I/O indicators
Indicate the status of each contact. (Lit when the input or output is ON.)
I/O connectors
Connect the special connectors from the sensors here.
(The special connectors are attached to the sensor's cable.)
DIN track mounting hooks
Section 4-7
Word address
Indicates the word which the
sensor uses.
