Waterproof Terminals (IP67)
Dimensions
5-4-3 Waterproof Terminal (IP67) with 8 Transistor Inputs:
DRT1-ID08CL (NPN) and DRT1-ID08CL-1 (PNP)
Input Specifications
204
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
supplied to external power supply connectors, power can be supplied to
sensors from input lines G and V provided that the total current does not
exceed 1.0 A. If the total current exceeds 1.0 A, the power must not be
supplied from the connector; it must be supplied externally instead.
2. Wire colors in parentheses are the previous JIS colors for photoelectric
and proximity sensors.

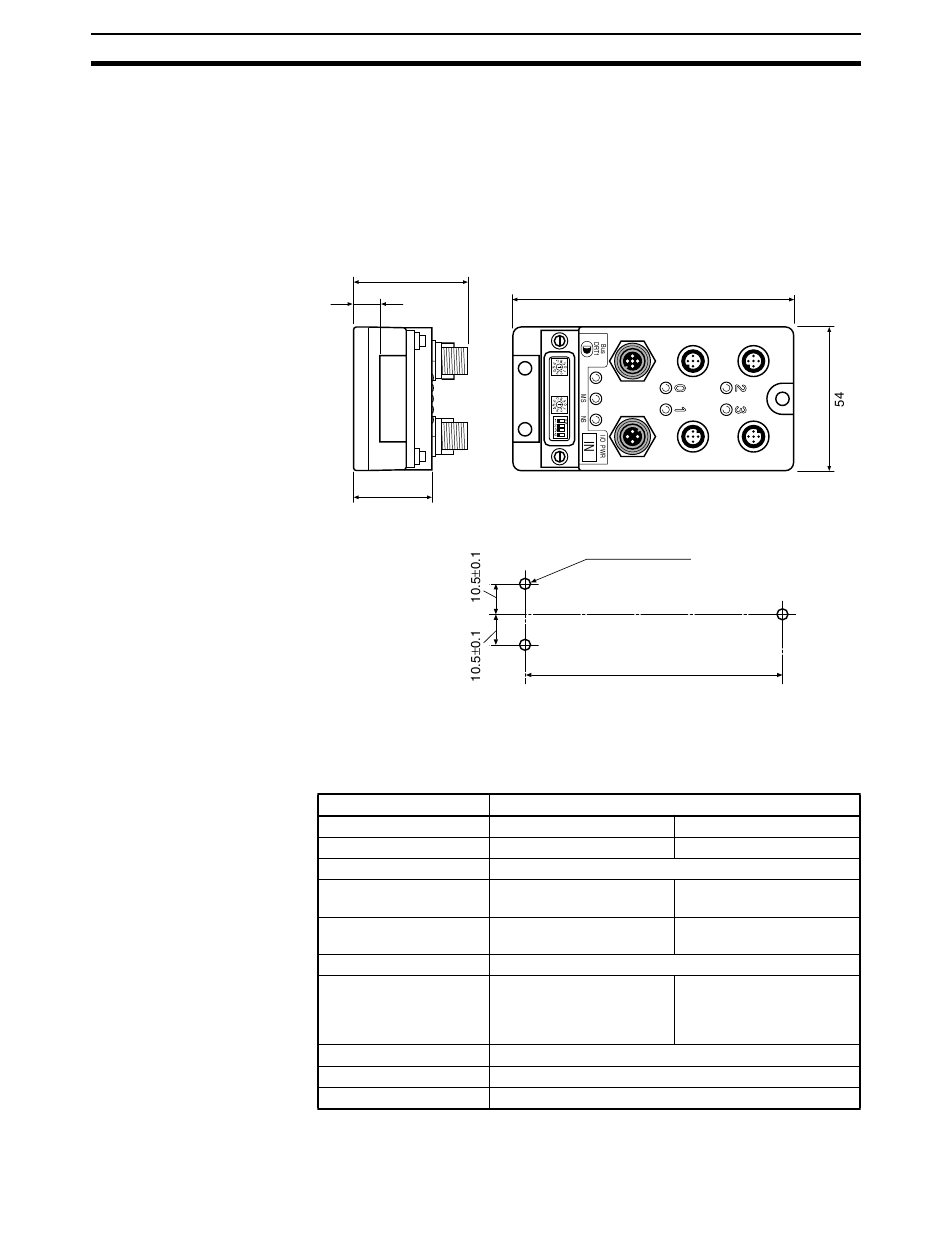

The following diagram shows the dimensions for the DRT1-ID04CL and
DRT1-ID04CL-1 Waterproof Terminals. All dimensions are in mm.
45
10
30
Item
Model DRT1-ID08CL
Internal I/O common NPN
Input points 8 points (Uses one word in Master.)
ON voltage 15 V DC min. (between
each input terminal and V)
OFF voltage 5 V DC max. (between
each input terminal and V)
OFF current 1 mA max.
Input current 6 mA max./point at 24 V DC
3 mA max./point at 17 V DC
(between each input termi-
nal and V)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
114
Mounting holes
Three, 4.0 dia. or M4
104±0.2
Specification
DRT1-ID08CL-1
PNP
15 V DC min. (between
each input terminal and G)
5 V DC max. (between
each input terminal and G)
6 mA max./point at 24 V DC
3 mA max./point at 17 V DC
(between each input termi-
nal and G)
Section 5-4
