Waterproof Terminals (IP67)

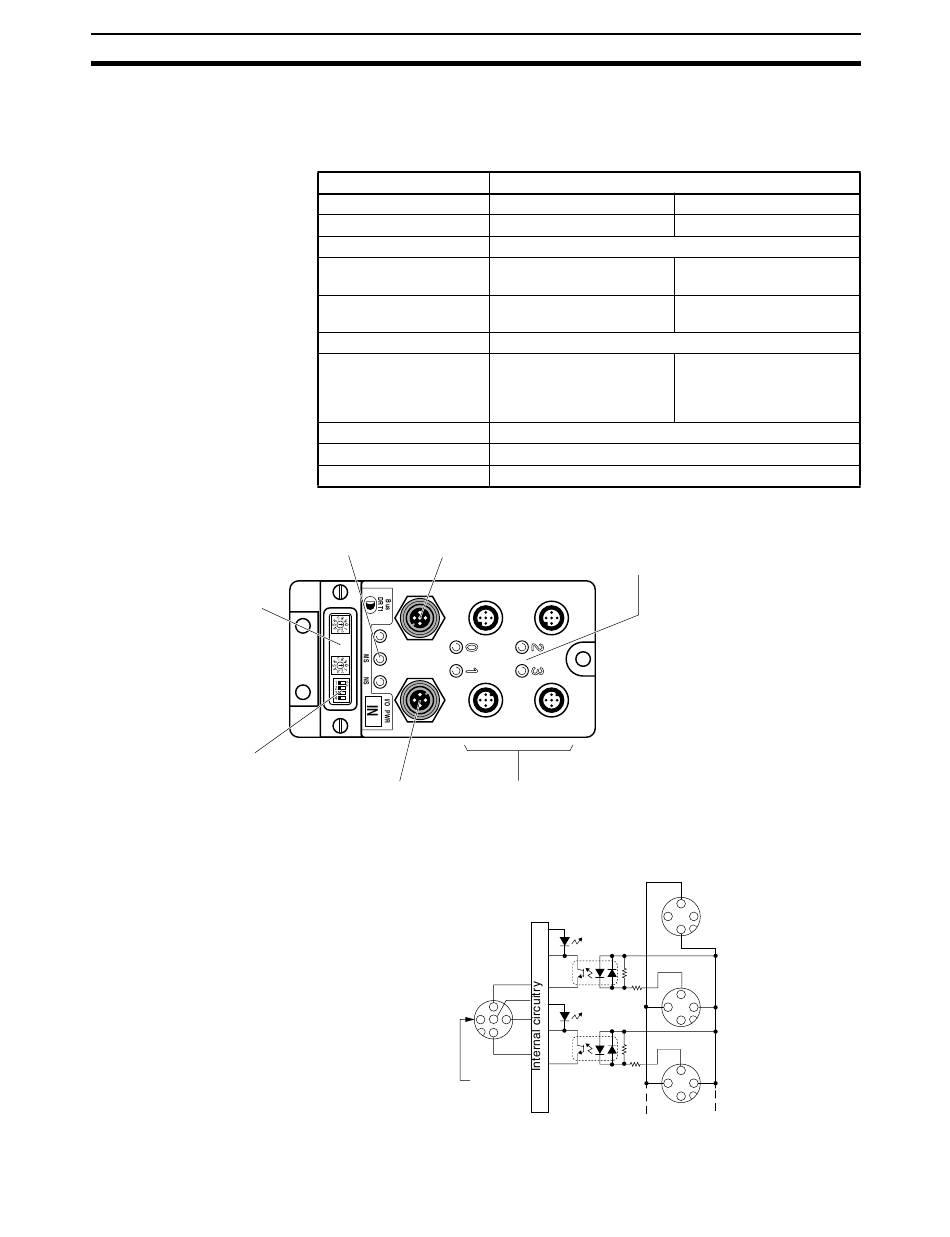

5-4-2 Waterproof Terminal (IP67) with 4 Transistor Inputs:
DRT1-ID04CL (NPN) and DRT1-ID04CL-1 (PNP)
Input Specifications
Components of the DRT1-ID04CL and DRT1-ID04CL-1
Rotary Switches 1 and 2:
Node address setting
(Refer to page 200.)
DIP switch:
Pins 1 and 2: Baud rate setting
Pins 3 and 4: Reserved (Always OFF.)
(Refer to page 200.)
Internal Circuits
202
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Item
Model
Internal I/O common
Input points
ON voltage
OFF voltage
OFF current
Input current
ON delay time
OFF delay time
Number of circuits
DeviceNet indicators DeviceNet communications
(Refer to page 312.) connector
External power
supply connector
The following diagram shows the internal circuits for the DRT1-ID04CL Water-
proof Terminal (NPN).
Specification
DRT1-ID04CL
NPN
4 points (Uses one word in Master.)
15 V DC min. (between
each input terminal and V)
5 V DC max. (between
each input terminal and V)
1 mA max.
6 mA max./point at 24 V DC
3 mA max./point at 17 V DC
(between each input termi-
nal and V)
1.5 ms max.
1.5 ms max.
4 points with one common
Input indicators
Indicate the input status of each contact.
(Lit when the input is ON.)
Input connector
CAN-H
CAN-L
G
4
V-
1 5 3
2
V+
G
DRAIN
Section 5-4
DRT1-ID04CL-1
PNP
15 V DC min. (between
each input terminal and G)
5 V DC max. (between
each input terminal and G)
6 mA max./point at 24 V DC
3 mA max./point at 17 V DC
(between each input termi-
nal and G)
G
3
4 2
1
V
IN0
4
V
3 1
2
IN1
4
V
3 1
2
