Connecting Communications Cables to Environment-resistive Slaves

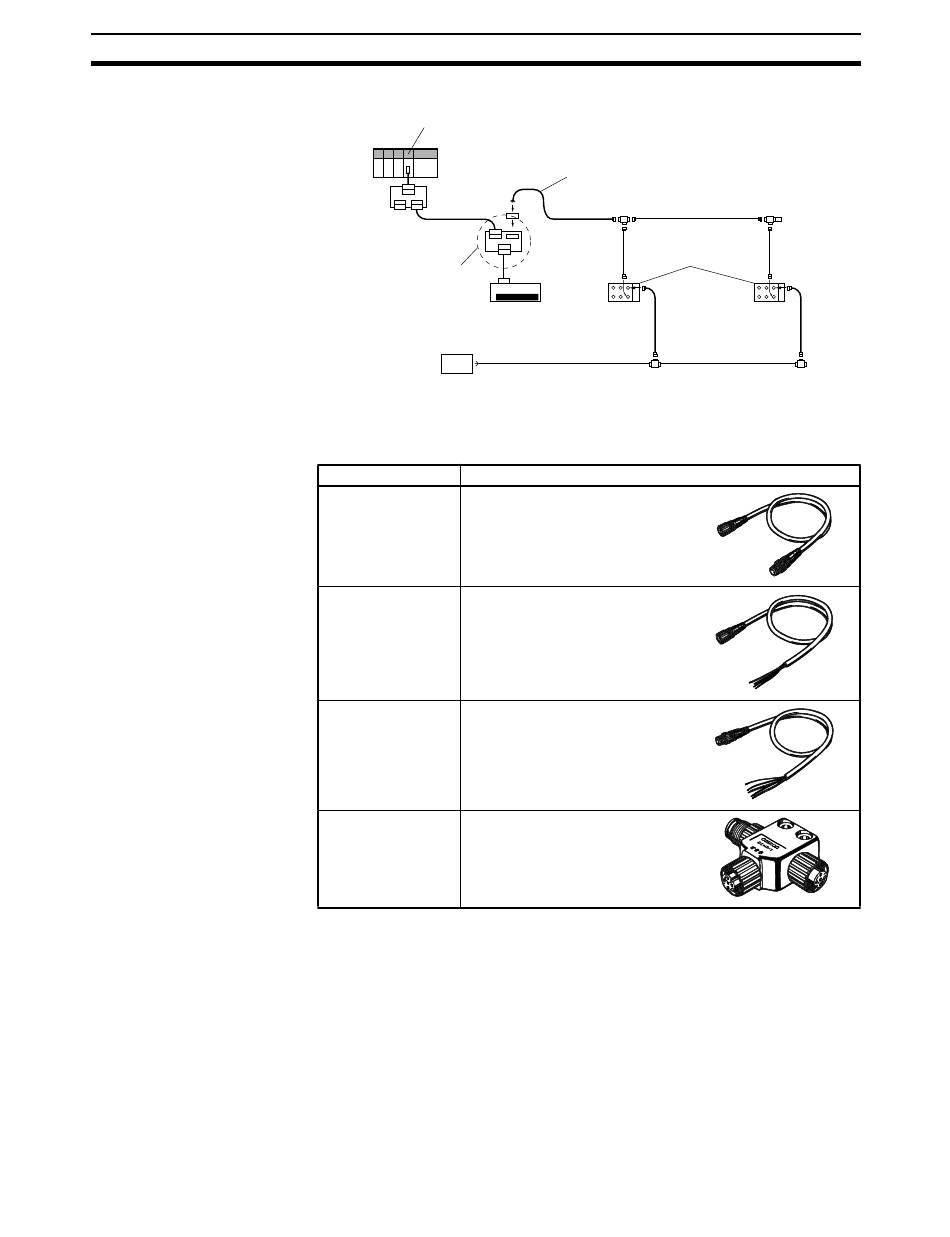

System with Slaves using Round Shielded Connectors and Regular Square Connectors
178
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
DeviceNet Master Unit
T-branch Tap
Slaves using different
kinds of connectors
can be connected
through a T-branch
Tap
Power supply
Always use the communications cables listed in the following table to connect
Waterproof Terminals, Environment-resistive Transistor Terminals, and B7AC
Interface Units.
Model
DCA1-5CN@@W1
DCA1-5CN@@F1
DCA1-5CN@@H1
DCN2-1
The blank spaces (@@) in the model numbers indicate the cable length in 0.1-
m units. For example, add "C5" for a cable 0.5 m long.
Note Standard thin DeviceNet cable is used for these cables, so the cables cannot
be used in an environment that is subject to spattering unless steps are taken
to protect the cables.
DCA1-5CN@@H1 Cable
with shielded connector
on one end
DCN2-1 shielded
T-branch connector
Environment-resistive
T-branch Tap
Terminals or other Slaves
using shielded connectors
Slave with normal
connector
Description
Cable with round shielded connec-
tors on both ends
Cable with round shielded connec-
tor (female socket) on one end
Cable with round shielded connec-
tor (male plug) on one end
Shielded T-branch Connector (for
1 branch line)
Section 5-2
I/O Power Supply Cable
