Remote Adapters
4-6-4

Mounting in Control Panels

Using Screws
Using DIN Track
Mounting Direction
4-6-5

Wiring Internal Power Supplies, I/O Power Supplies, and I/O Lines

Wiring the I/O Power
Supply
122
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Either of the following methods can be used to mount an Remote Adapter in a
control panel.
Open mounting holes in the control panel according to the dimensions pro-
vided for mounting holes in the dimensions diagrams and then secure the
Remote Adapter with M4 screws. The appropriate tightening torque is 0.6 to
0.98 N ⋅ m.
Mount the back of the Remote Adapter to a 35-mm DIN Track. To mount the
Adapter, pull down on the mounting hook on the back of the Terminal with a
screwdriver, insert the DIN Track on the back of the Terminal, and then secure
the Terminal to the DIN Track. When finished, secure all Slaves on both ends
of the DIN Track with End Plates.

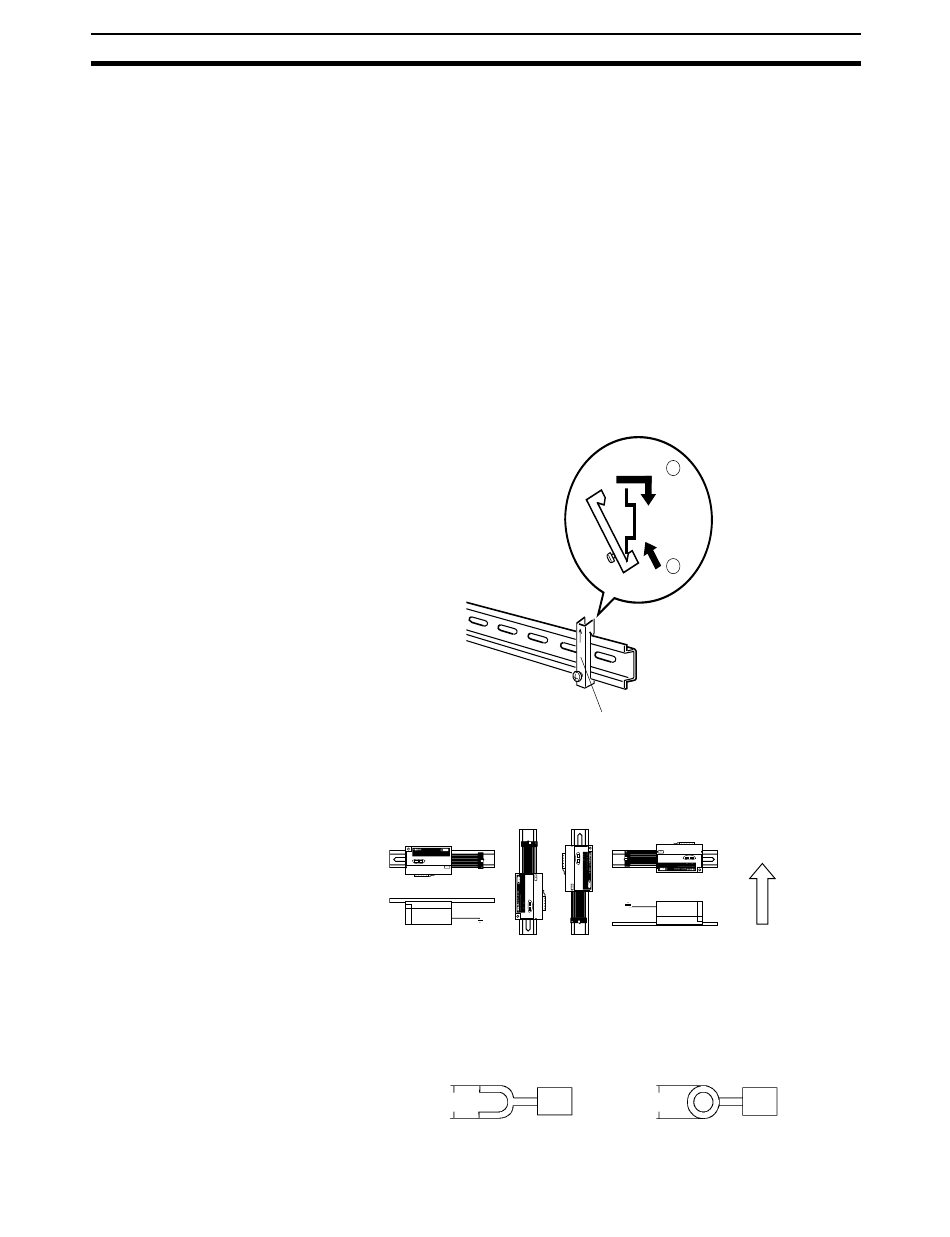

Connecting End Plates
Hook the bottom of the End Plate onto the DIN Track, as shown at (1) in the
following diagram, then hook the top of the End Plate as shown at (2).
Note Always attach End Plate to both ends of Slaves connected to DIN Track.
Unless specific restrictions are given for the Slave, it can be mounted in any
direction. Any of the following directions are okay.
DRT1-ID16X
No.
REMOTE ADAPTER 24VDC
MS NS
IN
The internal circuit power supplies, I/O power supplies, and I/O lines are all
wired to M3 screw terminals. Connect M3 crimp terminals and then connect
them to the terminal block. Tighten the screws fixing the crimp terminals to a
torque of 0.3 to 0.5 N ⋅ m.
6.0 mm max.
Section 4-6
2
1
End Plate
Vertical
6.0 mm max.
