Transistor Remote I/O Terminal With 8 Inputs And 8 Outputs: Drt1-Md16 (Npn); Drt1-Md16 - Omron DeviceNet CV Series Operation Manual

Transistor Remote I/O Terminals
Dimensions
Mounting holes
4-3-6 Transistor Remote I/O Terminal with 8 Inputs and 8 Outputs:
DRT1-MD16 (NPN)
Input Specifications
56
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

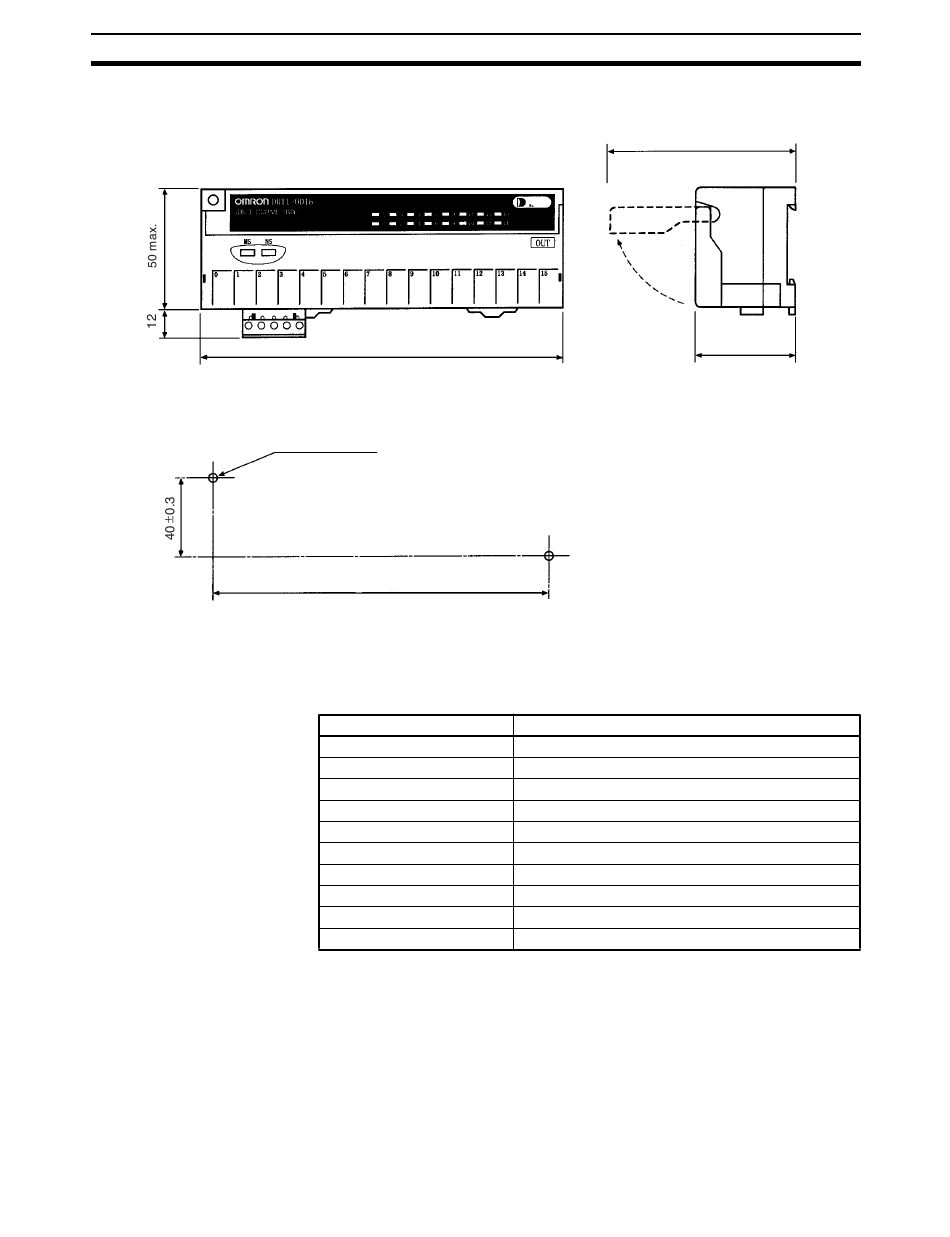

The following diagram shows the dimensions for the DRT1-OD16 and DRT1-
OD16-1 Remote Output Terminals. All dimensions are in mm.
(With connector attached)
150 max.
Two, 4.2 dia. or M4
±
140 0.3
Item
Model
Internal I/O common
Input points
ON voltage
OFF voltage
OFF current
Input current
ON delay time
OFF delay time
Number of circuits
Approx. 73
Specification

DRT1-MD16

NPN
8 points
15 V DC min. (between each input terminal and IN V)
5 V DC max. (between each input terminal and IN V)
1 mA max.
10 mA max./point
1.5 ms max.
1.5 ms max.
8 points with one common
Section 4-3
40 max.
