Transistor Remote I/O Terminals with Connectors
Dimensions
4-5-5

Mounting in Control Panels

Note
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

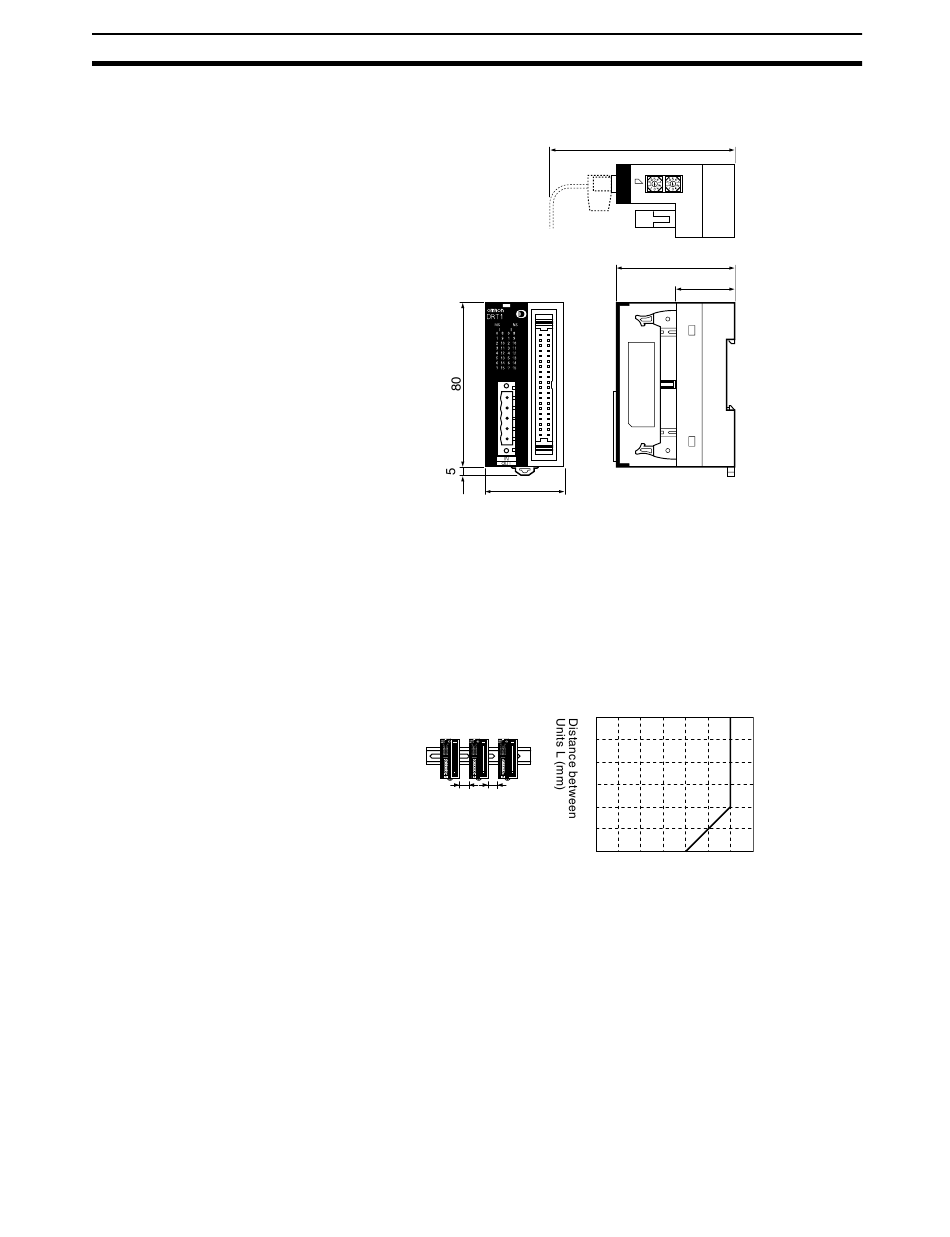

The following diagram shows the dimensions for the DRT1-MD32ML and
DRT1-MD32ML-1 Remote I/O Terminals. All dimensions are in mm.
Note There are restriction when using the 32-point Transistor Remote I/O Terminals
with Connectors depending on the ambient operating temperature.
• If the Terminals are not mounted facing up, they can be mounted side-by-
side and all inputs can be turned ON simultaneously at 55 ° C or less.
• If the Terminals are mounted facing up, the distances and temperatures in
the graph given below must be maintained to enable turning ON all inputs
simultaneously. For example, at an ambient temperature of 55 ° C, the Ter-
minals must be separated by at least 10 mm.
Either of the following three methods can be used to mount an Remote I/O
Terminal in a control panel.
• Mounting to DIN Track (page 104)
• Mounting perpendicular to a panel using a Mounting Bracket (page 105)
• Mounting parallel to a panel using a Mounting Bracket (page 106)
1. There are restriction when using the 32-point Transistor Remote I/O Termi-
nals with Connectors or 32-point Transistor Remote Input Terminals with
Connectors depending on the ambient operating temperature.
(83)
Values in parentheses
are reference values.
35
30
20
L L
10
0
40 45
Ambient operating temp. ( ° C)
Section 4-5
60
27.8
50 55
103
