Transistor Remote I/O Terminals
Dimensions
Mounting holes
4-3-4 Transistor Remote Output Terminals with 8 Points:
DRT1-OD08 (NPN) and DRT1-OD08-1 (PNP)
Output Specifications
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

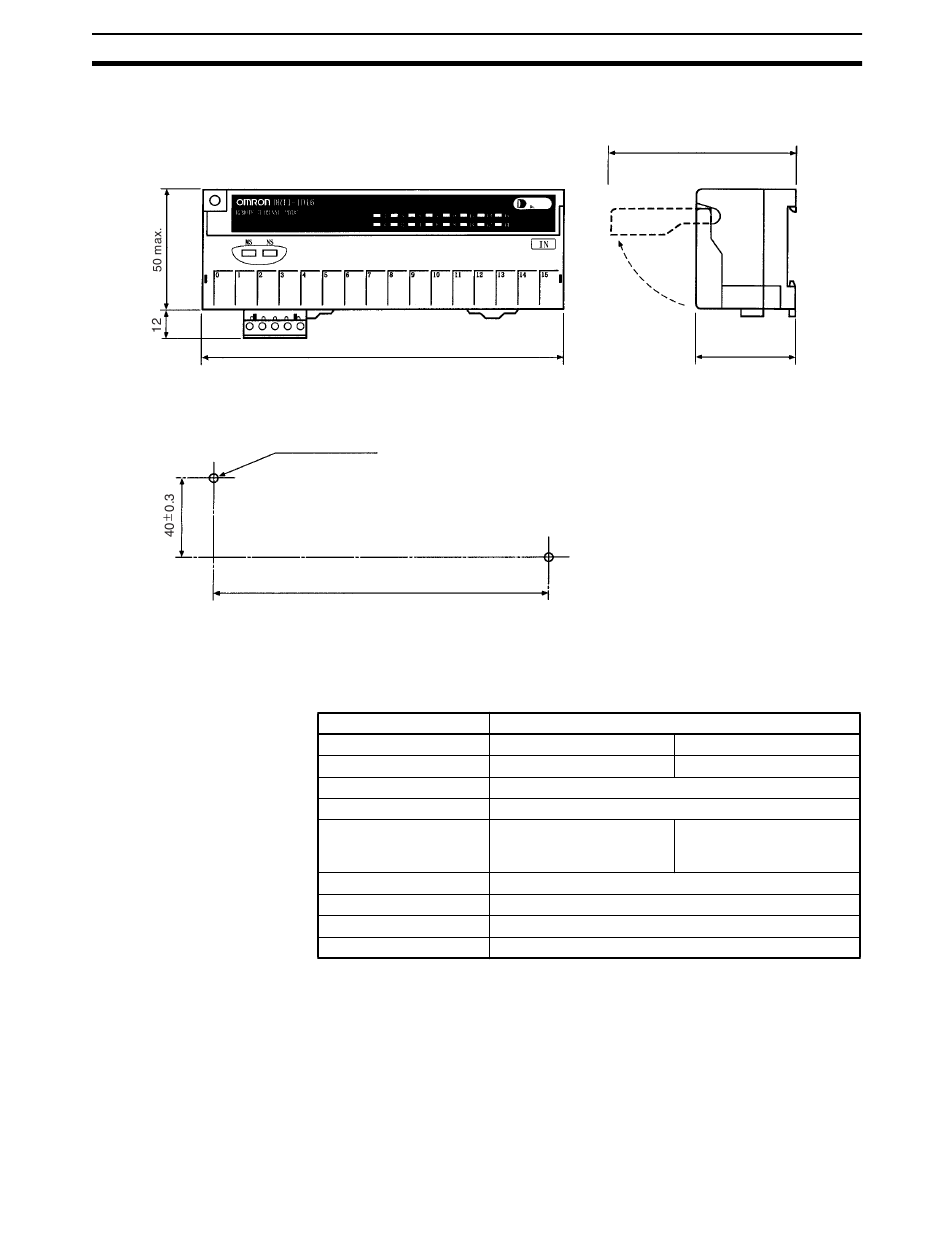

The following diagram shows the dimensions for the DRT1-ID16 and DRT1-
ID16-1 Remote Input Terminals. All dimensions are in mm.
(With connector attached)
150 max.
Two, 4.2 dia. or M4
±
140 0.3
Item
Model
Internal I/O common
Output points
Rated output current
Residual voltage
Leakage current
ON delay time
OFF delay time
Number of circuits
Specification
DRT1-OD08
NPN
8 points (Master Unit uses one word)
0.3 A/point, 2.4 A/common
1.2 V max. (at 0.3 A,
between each output termi-
nal and G)
0.1 mA max.
0.5 ms max.
1.5 ms max.
8 points with one common
Section 4-3
Approx. 73
40 max.
DRT1-OD08-1
PNP
1.2 V max. (at 0.3 A,
between each output termi-
nal and V)
49
