Remote Adapters

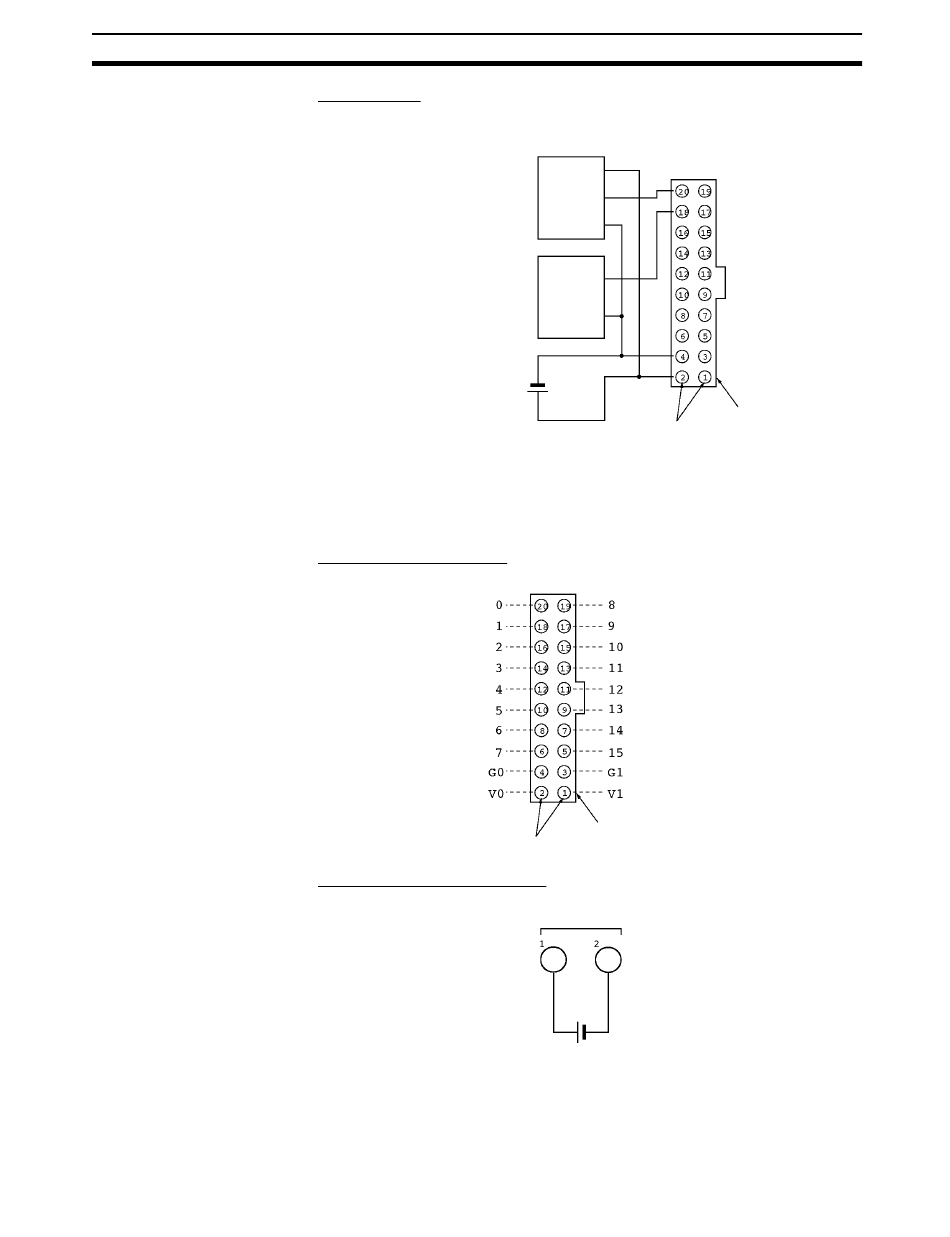

Wiring of the DRT1-ID16X-1 (PNP)
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Input Devices
Use a printed circuit board to wire I/O devices to a flat cable MIL plug which
can be connected to the Remote Adapter.
NPN output 3-wire sensor
(photoelectric or proximity sensor)
2-wire sensor
(limit switch)
I/O power supply
Note In accordance with the changes in the standards for photoelectric sensors
and proximity sensors, wire colors have been changed. Colors in parentheses
are the old wire colors.
Connector Pin Allocation
Internal Circuits Power Supply
Brown
(red)
Black
(white)
Blue
(black)
Brown
(white)
Blue
(black)
+
Connector pin No.
TOP VIEW
▲ Triangle mark
Connector pin No.
SOURCE
24 V DC
+
+
Internal circuits
power supply
Section 4-6
Top View
▲ Triangle mark
115
