Waterproof Terminals (IP67)
Dimensions
45
10
30
5-4-6

Mounting in Control Panels

Installation Direction
5-4-7

Wiring Internal Power Supplies, I/O Power Supplies, and I/O Lines

Wiring the Internal Power
Supply and I/O Power
Supply
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

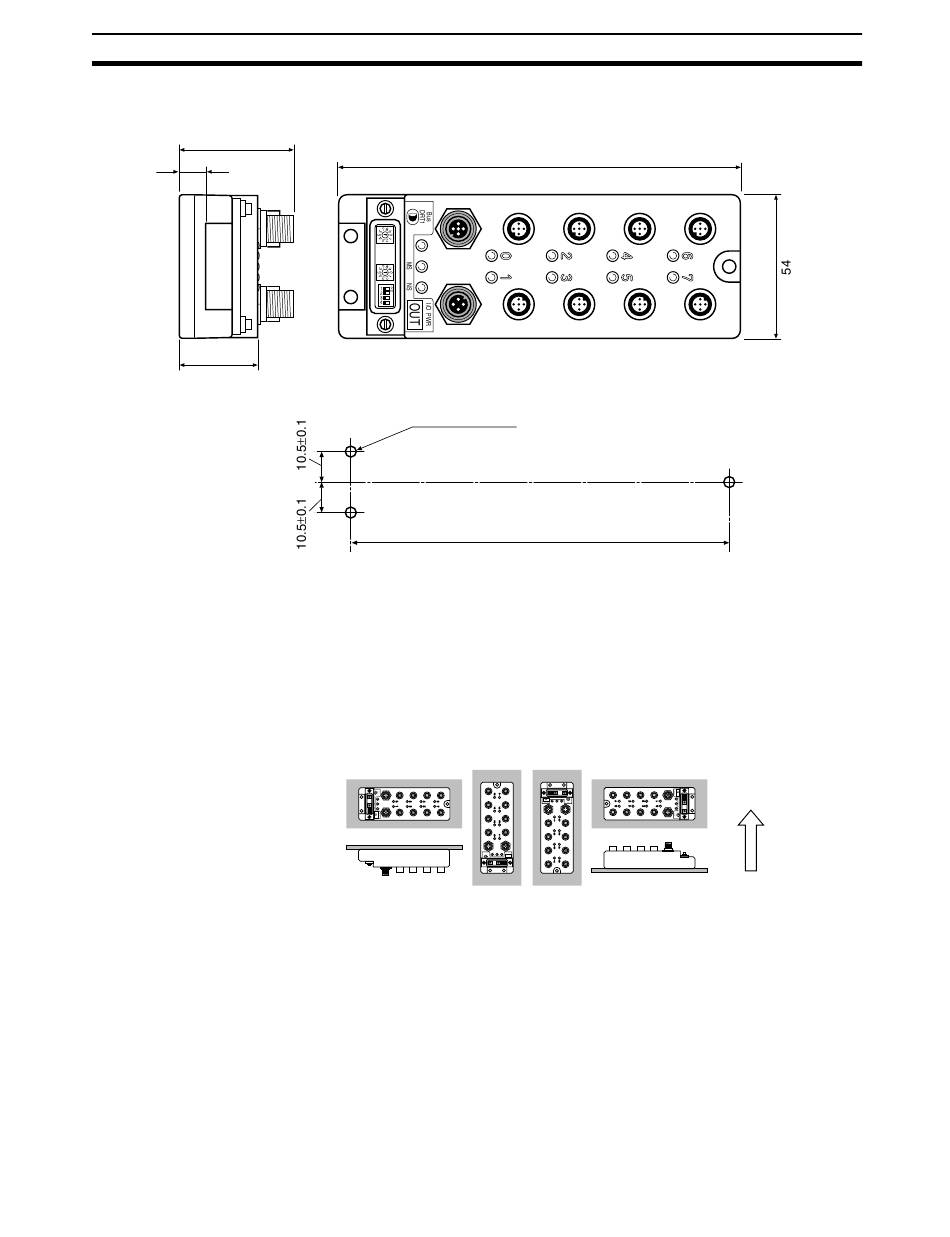

The following diagram shows the dimensions for the DRT1-OD08CL and
DRT1-OD08CL-1 Waterproof Terminals. All dimensions are in mm.
Mounting holes
Three, 4.0 dia. or M5
Use screws to mount a Waterproof Terminal in a control panel. These Termi-
nals cannot be mounted on a DIN Track.
Drill the mounting holes in the control panel according to the dimensions
shown in the dimensions diagrams and secure the Terminal with M5 screws.
The appropriate tightening torque is 1.47 to 1.96 N ⋅ m.
The Terminal can be mounted in any direction. Any one of the following 6
directions is acceptable.
Bus
DRT1
MS
The internal power supply shares the communications power supply, so it isn't
necessary to connect a separate internal power supply.
To provide the I/O power supply, connect the external power supply to the Ter-
minal with an XS2-series Round Waterproof Connector listed in the following
table.
160
150±0.2
I/O PWR
IN
NS
Section 5-4
Vertical
