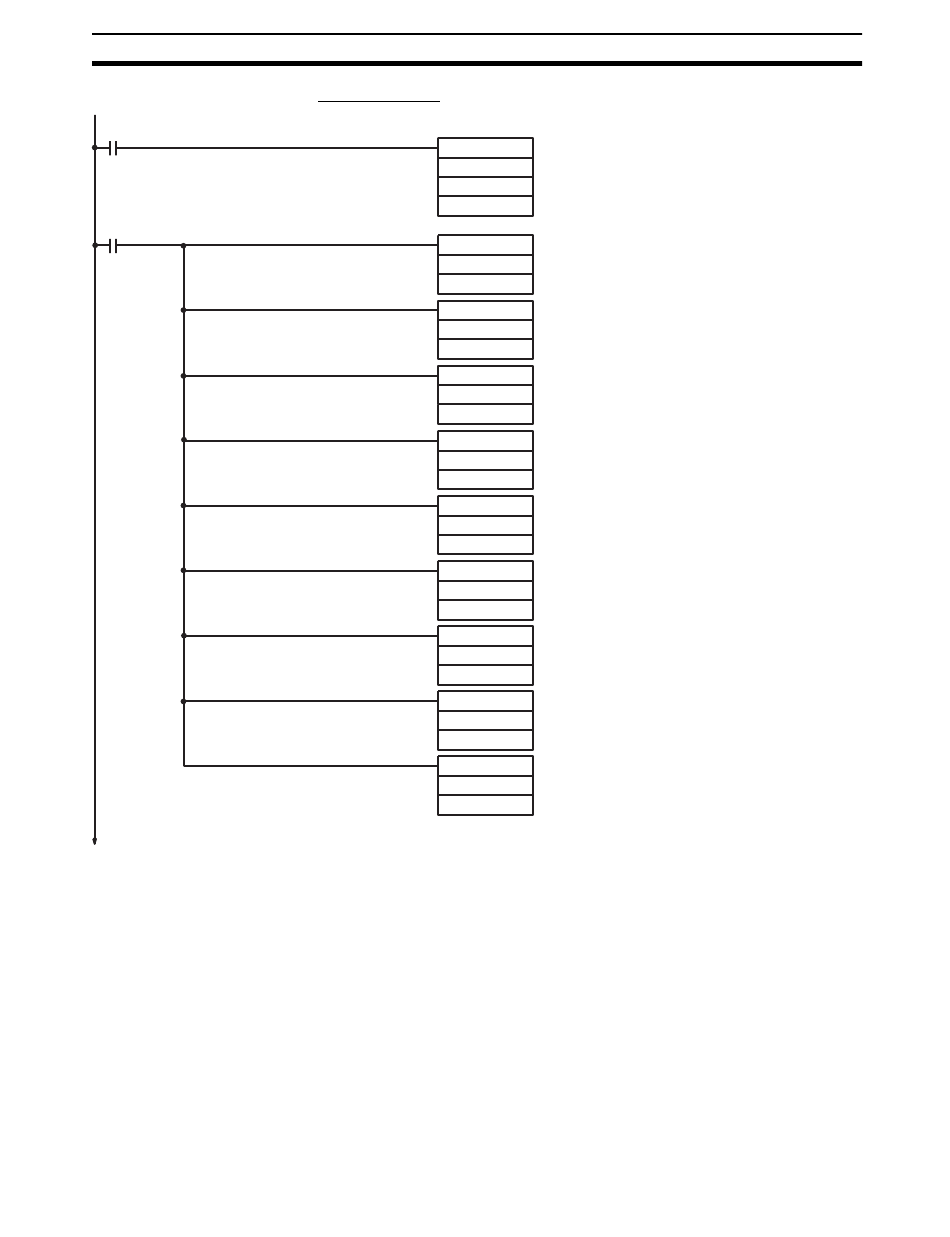

Ladder Program
BSET(71)
DM0000
DM0999
MOV(21)
DM0200
MOV(21)
DM0201
MOV(21)
DM0202
MOV(21)
DM0203
MOV(21)
DM0204
MOV(21)
DM0205
MOV(21)
DM0206
MOV(21)
DM0207
MOV(21)
DM0208
Clears all DM Area words being used when the
program starts.
#0000
Setting data for executing the RECEIVE DATA READ
command for port 1
#8201
Response storage word: DM 0300
(82 Hex: DM; 012C Hex: word 300; 00 Hex: Word
data)
#2C00
Response monitoring time: 10 s
#0064
Number of command data bytes: 9 bytes
#0009
EXPLICIT MESSAGE SEND command code (FINS):
2801 Hex
#2801
Slave node address: 08
RECEIVE DATA READ command service code: 0E Hex
#080E
Class ID: 94 Hex
#0094
Port 1 RECEIVE DATA READ Instance ID: 02 Hex
#0002
Attribute ID: 64 Hex
#6400
