Transistor Remote I/O Terminals with Connectors
Mounting Parallel to a
Panel Using a Mounting
Bracket
1,2,3...
106
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

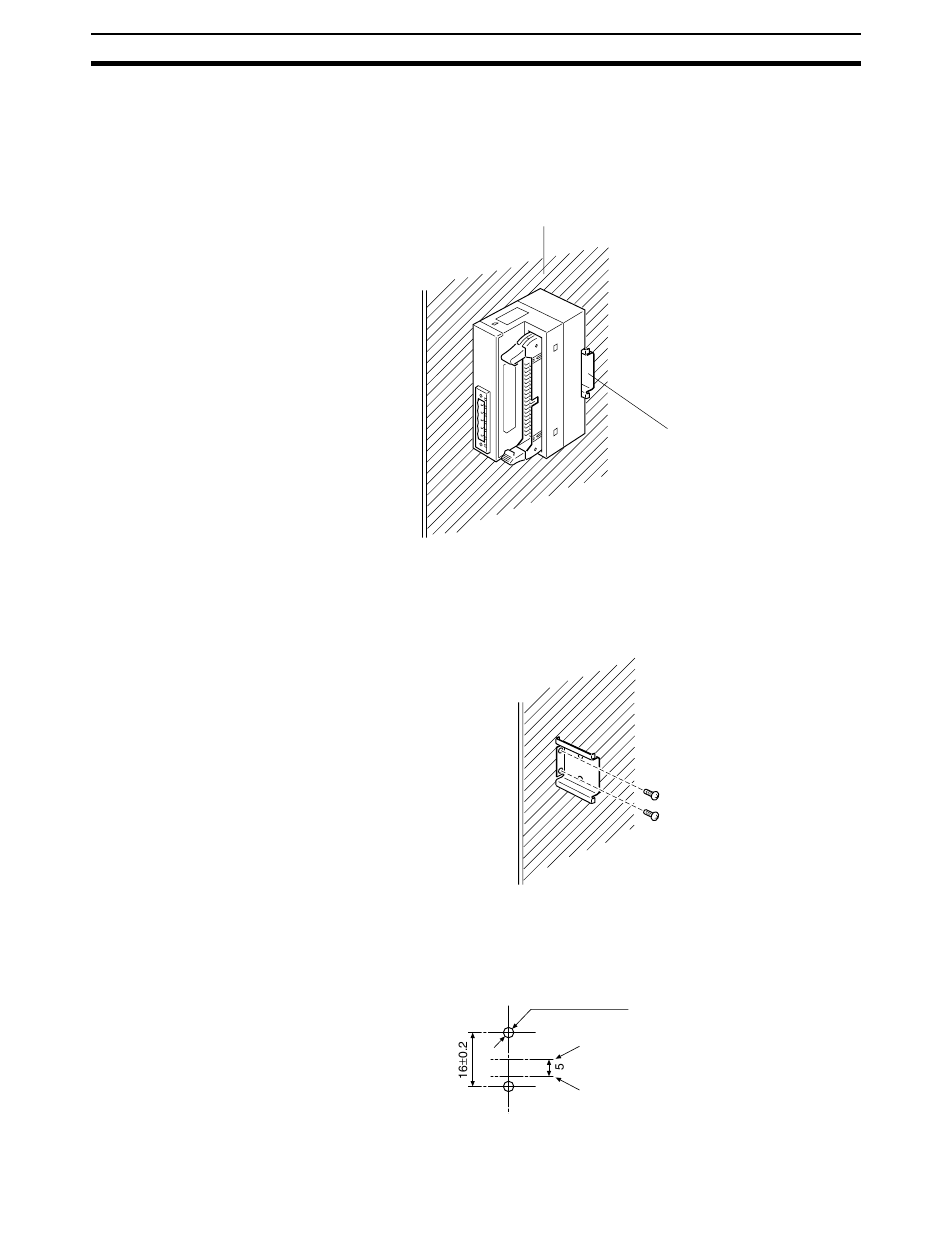

A Remote I/O Terminal with a Connector can be mounted parallel to a panel
by using the SRT2-ATT02 Mounting Bracket B (sold separately).
Note A multi-drop DeviceNet connector cannot be used if the Remote I/O Terminal
is mounted parallel to the panel.
Mounting Method
Use the following procedure to mounted the Remote I/O Terminal.
1. Mount the SRT2-ATT02 Mounting Bracket B to the wall using two Phillip's
screws as shown below. Refer to page 107 for mounting dimensions.
2. Mount the Remote I/O Terminal to the Mounting Bracket B. The Mounting
Bracket B is shaped like a DIN Track. Use the same mounting procedure
as for DIN Track.
Mounting Holes and Slave Center Line
Panel surface
Mounted
parallel to a
panel
Mounting
Bracket B
Two, 3.2 dia. or M3
Center of mounting holes
Center of Slave
Unit: mm
Section 4-5
