Omron DeviceNet CV Series Operation Manual page 199

Environment-resistive Terminals (IP66)

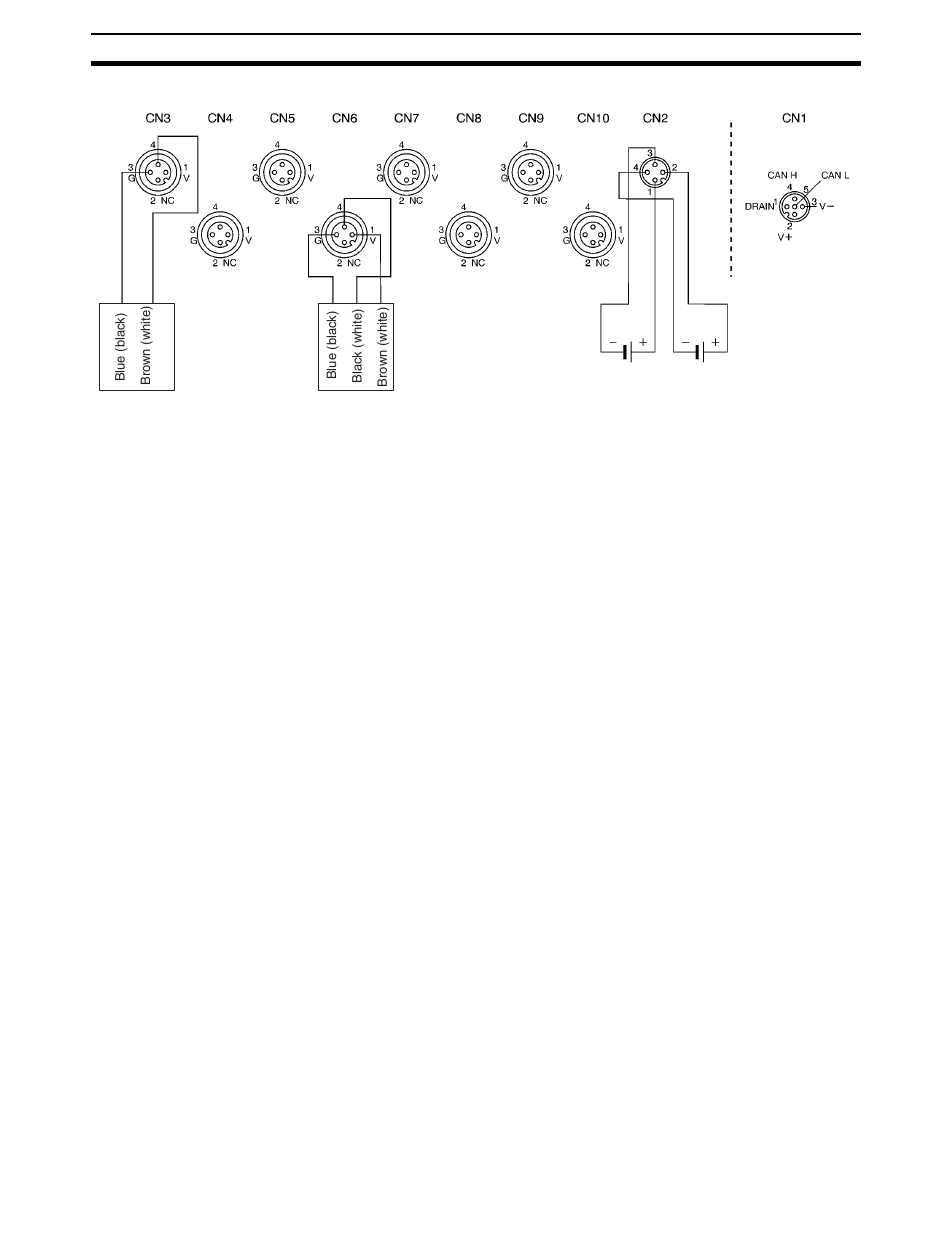

Wiring
Input 0
Input 1
2-wire sensor
(limit switch)
Note
182
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Input 2 Input 4
Input 3
NPN output 3-wire sensor
(photoelectric or proximity
sensor)
1. External power supply line 0V and input line G are connected internally, as
are external power supply line 24V and input line V. When input power is
supplied to external power supply connectors, power can be supplied to
sensors from input lines G and V provided that the total current does not
exceed 1.0 A. If the total current exceeds 1.0 A, the power must not be
supplied from the connector; it must be supplied externally instead.
2. Wire colors in parentheses are the previous JIS colors for photoelectric
and proximity sensors.
Input 6
Input 5
Input 7
Internal power
supply
Section 5-3
(end surface)
I/O power
supply
