Temperature Input Terminals
166
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

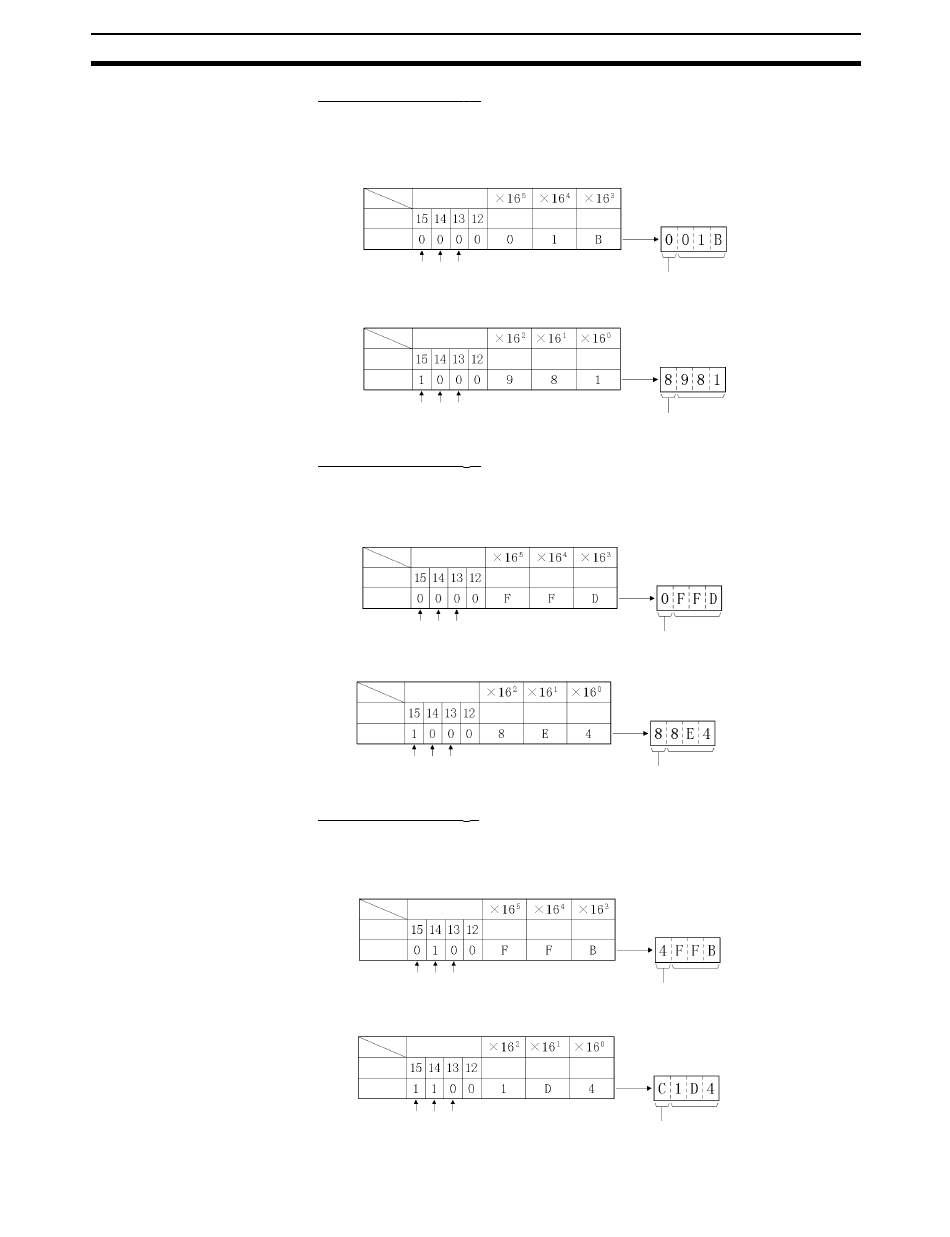

Example 1: 1130.25 ° C
Value multiplied by 100: 113025
Notification value: 01B981 (113025 expressed in hexadecimal)
Contents of 3 Leftmost Digits
Sign/Determin.
Bits 11 to 8 7 to 4
Data
Leftmost C Normal
Contents of 3 Rightmost Digits
Sign/Determin.
11 to 8 7 to 4
Bits
Data
Rightmost Normal
C
Example 2: –100.12 ° C
Value multiplied by 100: –10012
Notification value: FFD8E4 (–10012 expressed in hexadecimal)
Contents of 3 Leftmost Digits
Sign/Determin.
11 to 8 7 to 4
Bits
Data
Leftmost Normal
C
Contents of 3 Rightmost Digits
Sign/Determin.
11 to 8 7 to 4 3 to 0
Bits
Data
Rightmost Normal
C
Example 3: –200.12 ° F
Value multiplied by 100: –20012
Notification value: FFB1D4 (–20012 expressed in hexadecimal)
Contents of 3 Leftmost Digits
Sign/Determin.
11 to 8 7 to 4 3 to 0
Bits
Data
Leftmost F Normal
Contents of 3 Rightmost Digits
Sign/Determin.
11 to 8 7 to 4 3 to 0
Bits
Data
Rightmost F Normal
Temperature conversion data
3 to 0
Data area
Sign/determination area
Temperature conversion data
3 to 0
Data area
Sign/determination area
Temperature conversion data
3 to 0
Data area
Sign/determination area
Temperature conversion data
Data area
Sign/determination area
Temperature conversion data
Data area
Sign/determination area
Temperature conversion data
Data area
Sign/determination area
Section 4-9
