C200H I/O Link Units

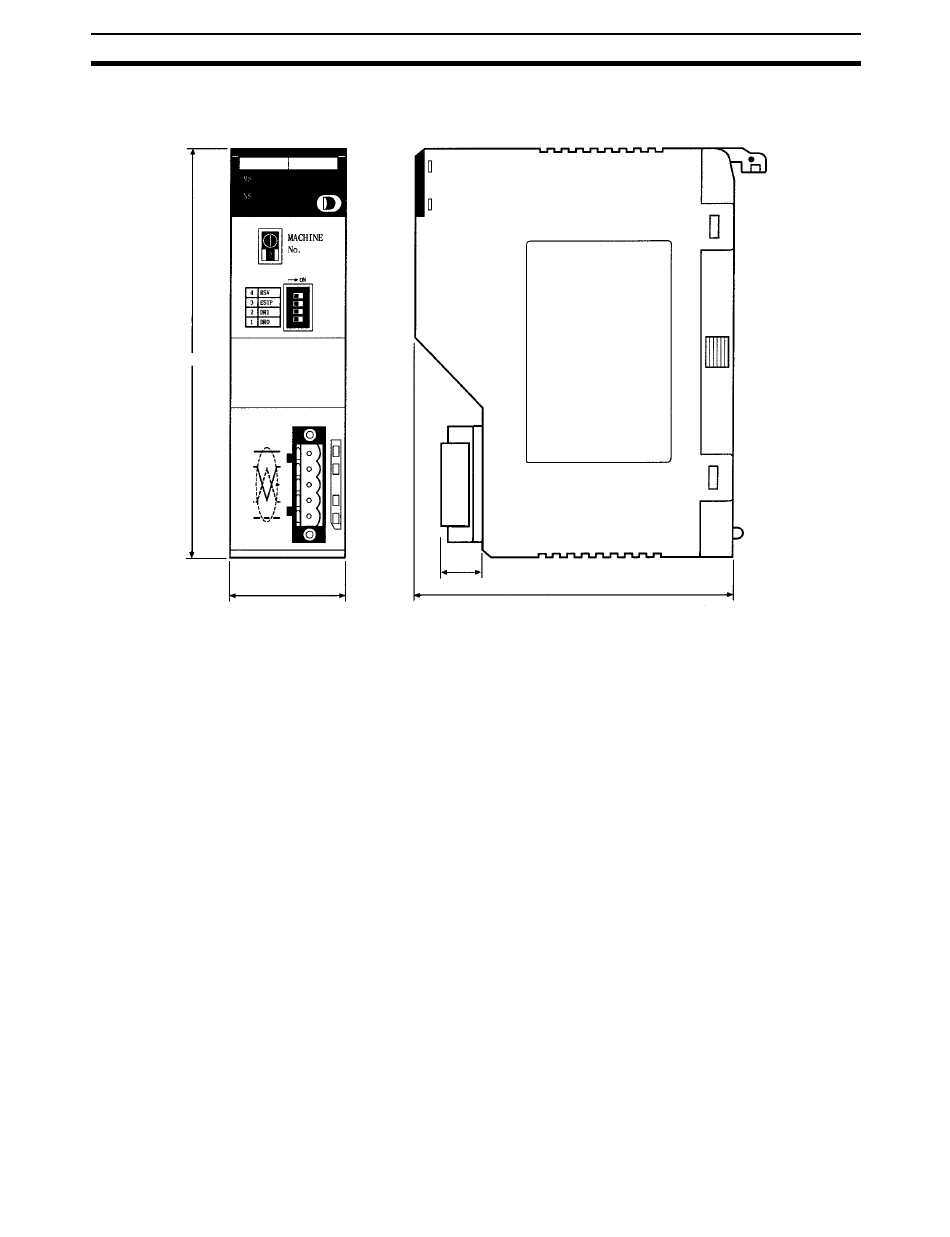

6-1-10 Dimensions

Unit: mm
DRT21
130

6-1-11 Installing in a Control Panel

6-1-12 C200H I/O Link Unit Application Examples

256
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
35
For dimensions of the Unit when mounted to a Backplane, refer to the SYS-
MAC C200HX/HG/HE PLC Operation Manual or the SYSMAC CS1G/H PLC
Operation Manual .
The C200H I/O Link Unit must be mounted in the Backplane of a CS1H/G or
C200HX/HG/HE PLC. The Unit mounts in the Backplane just like standard
Units. Refer to the PLC's Operation Manual or Installation Guide for details on
mounting the Unit in the Backplane and installing the PLC in a control panel.
Note The C200H I/O Link Unit uses work words in the PLC (CS1H/G or C200HX/
HG/HE) to exchange I/O data with the Master, so it isn't necessary to wire an
internal power supply, I/O power supply, or I/O lines.
This section explains the procedure for using explicit messages with a C200H
I/O Link Unit. The following system configuration example is used in this
example. When explicit messages are used with a C200H I/O Link Unit, the
areas in the Slave's PLC can be read or written.
(With connector attached)
13
101
Section 6-1
