Transistor Remote Input Terminals With 16 Points And 3-Tier I/O Terminal Blocks: Drt1-Id16Ta (Npn) And Drt1-Id16Ta-1 (Pnp) - Omron DeviceNet CV Series Operation Manual

Transistor Remote I/O Terminals with 3-tier I/O Terminal Blocks
4-4-3 Transistor Remote Input Terminals with 16 Points and 3-tier I/O
Terminal Blocks: DRT1-ID16TA (NPN) and DRT1-ID16TA-1 (PNP)

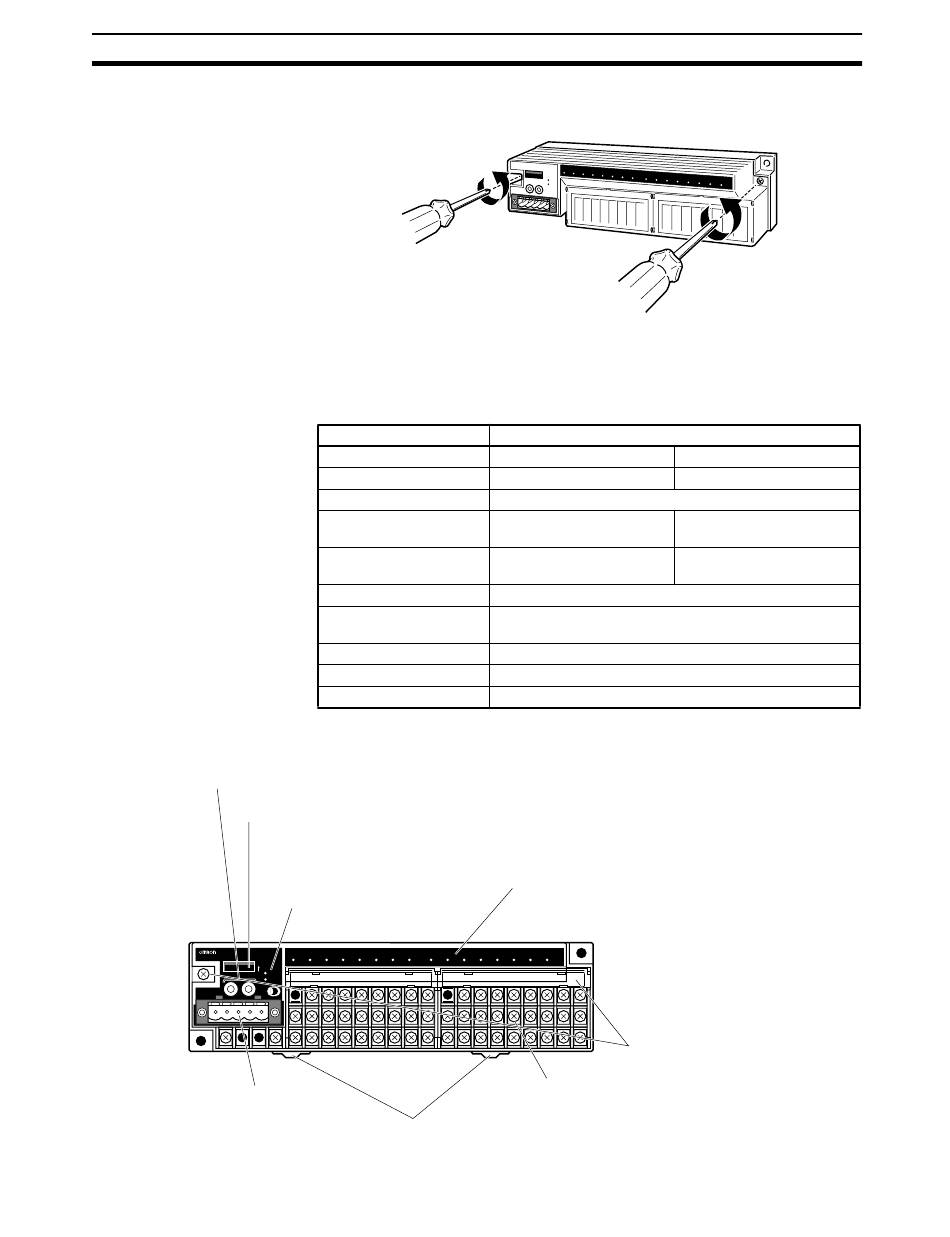

Input Specifications
Components of the DRT1-ID16TA and DRT1-ID16TA-1
Rotary switches (Refer to page 62.)
Set the node address.
DIP switch
Pins 1 and 2: Baud rate setting
Pins 3 and 4: Reserved (Always OFF.)
DRT1-ID16TA
REMOTE TERMINAL DC24V
ON
MS
DR0 DR1 NC NC
NS
Communications
connector
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Always turn OFF the communications, internal, and I/O power supplies before
removing or attaching the circuit section.
Item
Model
Internal I/O common
Input points
ON voltage
OFF voltage
OFF current
Input current
ON delay time
OFF delay time
Number of circuits
(Refer to page 62.)
DeviceNet Indicators
(Refer to page 312.)
0 1 2 3 4 5 6 7 8 9
DIN track mounting hooks
Specification
DRT1-ID16TA
NPN
16 points
15 V DC min. (between
each input terminal and V)
5 V DC max. (between
each input terminal and V)
1.0 mA max.
6.0 mA max./point at 24 V DC
3.0 mA min./point at 17 V DC
1.5 ms max.
1.5 ms max.
8 points with two commons
Input indicators
Indicate the input status of each contact.
(Lit when the input is ON.)
10 11 12 13 14 15
IN
Circuit removal screws.
Terminal block
Section 4-4
DRT1-ID16TA-1
PNP
15 V DC min. (between
each input terminal and G)
5 V DC max. (between
each input terminal and G)
67
