4-10-3 Mounting To Control Panels - Omron DeviceNet CV Series Operation Manual

CQM1 I/O Link Unit
Dimensions
(With the cover removed)

4-10-3 Mounting to Control Panels

174
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
001 for inputs and IR 100 for outputs. The following diagram shows a word
allocation example.
Inputs
From the Master's
output area
Outputs
To the Master's
input area

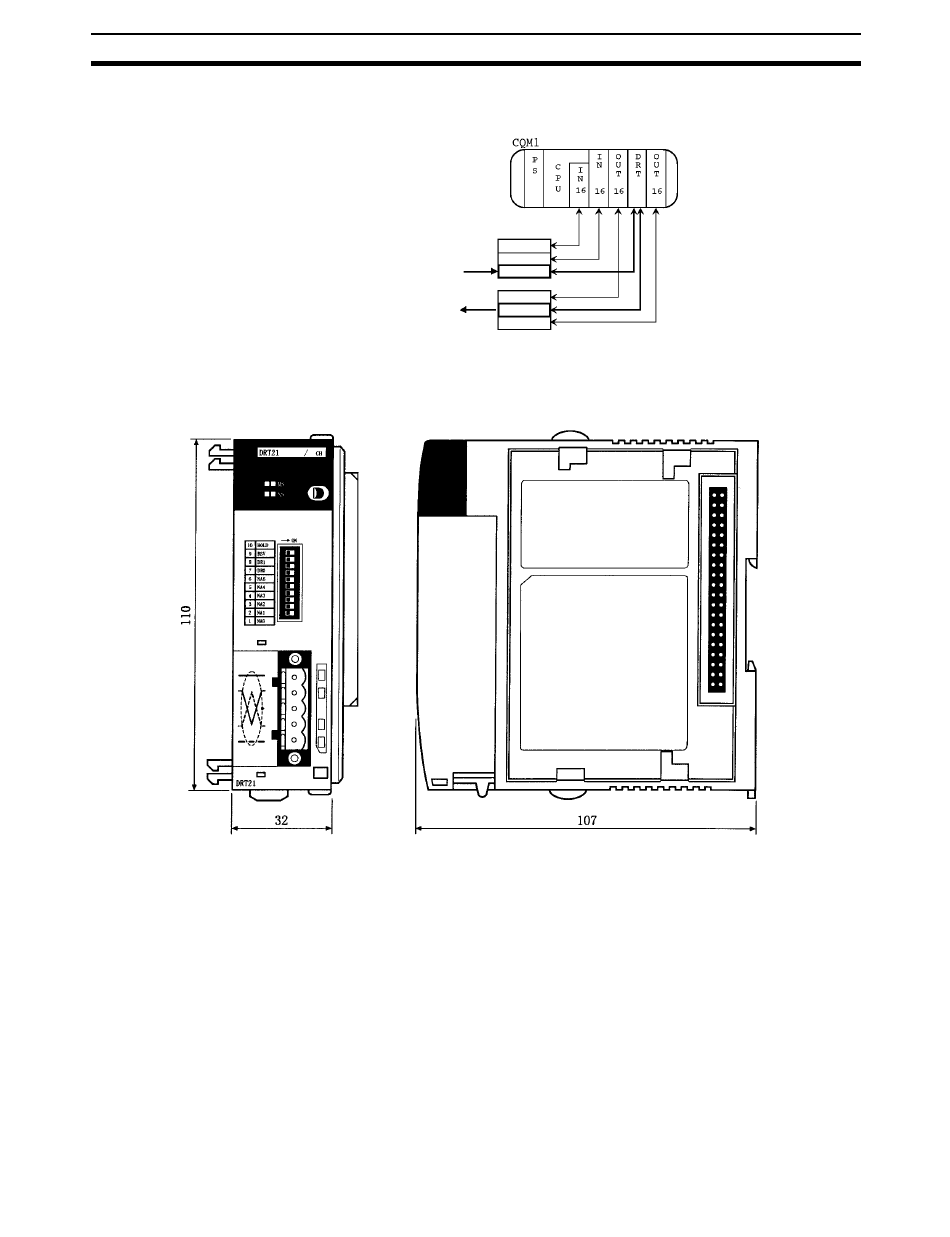

The following diagram shows the dimensions for the CQM1-DRT21 I/O Link
Unit. Refer to the PLC's Installation Guide for the dimensions of the Unit when
it is mounted to the Backplane. (All dimensions are in mm.)
The CQM1 I/O Link Unit is assembled with the rest of the Units in the CQM1
PLC for use as one assembled PLC. The CQM1 I/O Link Unit is connected to
the PLC just like any other PLC Unit. Refer to the operation manual for the
PLC for details.
Note No internal power, I/O power, or I/O wiring is required for the CQM1 I/O Link
Unit because it uses internal I/O bits in the CPU Unit to communicate with the
master.
Word allocation
IR 000
IR 001
IR 002
IR 100
IR 101
IR 102
Section 4-10
PS: Power supply unit
CPU: CPU Unit
IN: Input Unit/Terminals
OUT: Output Unit
DRT: I/O Link Unit
