Temperature Input Terminals

Wiring the Internal Power
Supply
Wiring I/O
4-9 Temperature Input Terminals
4-9-1

Node Address and Baud Rate Settings

Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

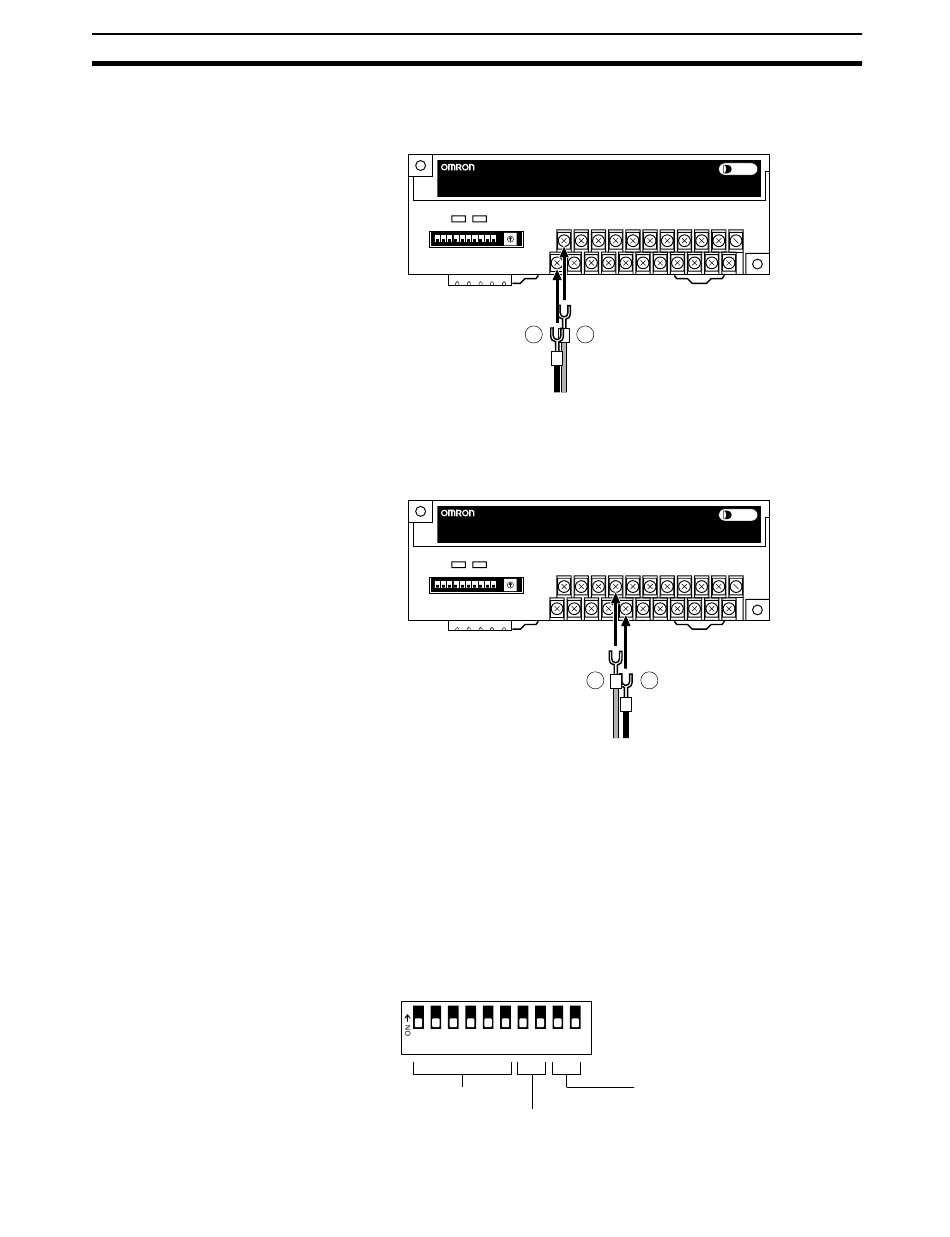

Refer to the wiring details for each Slave for information on the terminal
arrangement at the terminal block. The following example shows the internal
power supply for a DRT1-AD04 Analog Input Terminal.
DRT1-AD04
ANALOG TERMINAL
Refer to the wiring details for each Slave for information on the terminal
arrangement at the terminal block and external I/O wiring. The following
example shows the wiring to input 0 on a DRT1-AD04 Analog Input Terminal.
DRT1-AD04
ANALOG TERMINAL
This section describes the Slaves' node address setting, baud rate settings,
and hold/clear outputs for communications error setting. These settings are
made using the following pins on the DIP switch.
Node address setting: Pins 1 through 6
Baud rate setting: Pins 7 and 8
Slave-specific setting: Pins 9 and 10
(Refer to the descriptions of individual Slaves.)
1 2 3 4 5
Node address setting
0
−
+
0
−
V+
6 7 8 9 10
Slave-specific setting:
Refer to the descriptions
of individual Slaves.
Baud rate setting
Section 4-9
No.
No.
