Transistor Remote I/O Terminals with 3-tier I/O Terminal Blocks
4-4-4 Transistor Remote Output Terminals with 16 Points and 3-tier I/O
Terminal Blocks: DRT1-OD16T (NPN) and DRT1-OD16T-1 (PNP)
Output Specifications

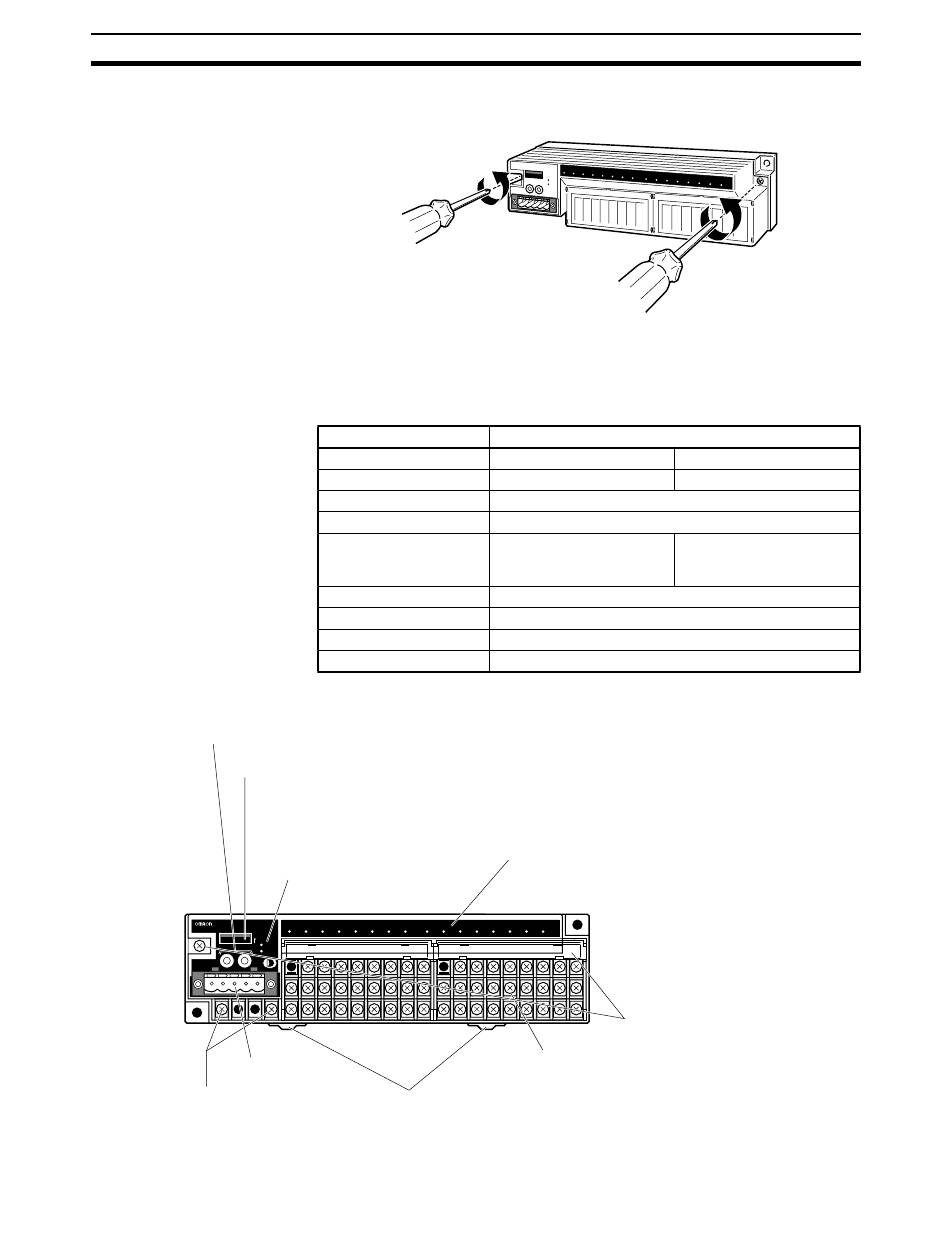

Components of the DRT1-OD16T and DRT1-OD16T-1
Rotary switches (Refer to page 62.)
Set the node address.
DIP switch
Pins 1 and 2: Baud rate setting
Pin 3: Reserved (Always OFF.)
Pin 4: Hold/Clear outputs for communications error
DRT1-OD16T
REMOTE TERMINAL DC24V
ON
MS
DR0 DR1 NC HOLD
NS
Communications
connector
Internal power supply terminals
70
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Always turn OFF the communications, internal, and I/O power supplies before
removing or attaching the circuit section.
Item
Model
Internal I/O common
Output points
Rated output current
Residual voltage
Leakage current
ON delay time
OFF delay time
Number of circuits
(Refer to page 62.)
DeviceNet Indicators
(Refer to page 312.)
0 1 2 3 4 5 6 7 8 9
DIN track mounting hooks
Specification
DRT1-OD16T
NPN
16 points
0.5 A/point
1.2 V max. (at 0.5 A,
between each output termi-
nal and G)
0.1 mA max.
0.5 ms max.
1.5 ms max.
8 points with two commons
Output indicators
Indicate the output status of each contact.
(Lit when the output is ON.)
10 11 12 13 14 15
OUT
Circuit removal screws.
Terminal block
Section 4-4
DRT1-OD16T-1
PNP
1.2 V max. (at 0.5 A,
between each output termi-
nal and V)
