Waterproof Terminals (IP67)

5-4 Waterproof Terminals (IP67)
5-4-1

Node Address, Baud Rate, and Output Hold/Clear Settings

200
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Tighten the connector by hand to a torque of 0.39 to 0.49 N ⋅ m. If the connec-
tor is not tightened sufficiently, it will not provide the expected environmental
resistance and may come loose from vibration. Do not use pliers or other tools
to tighten the connectors, because the tools may damage the connectors.

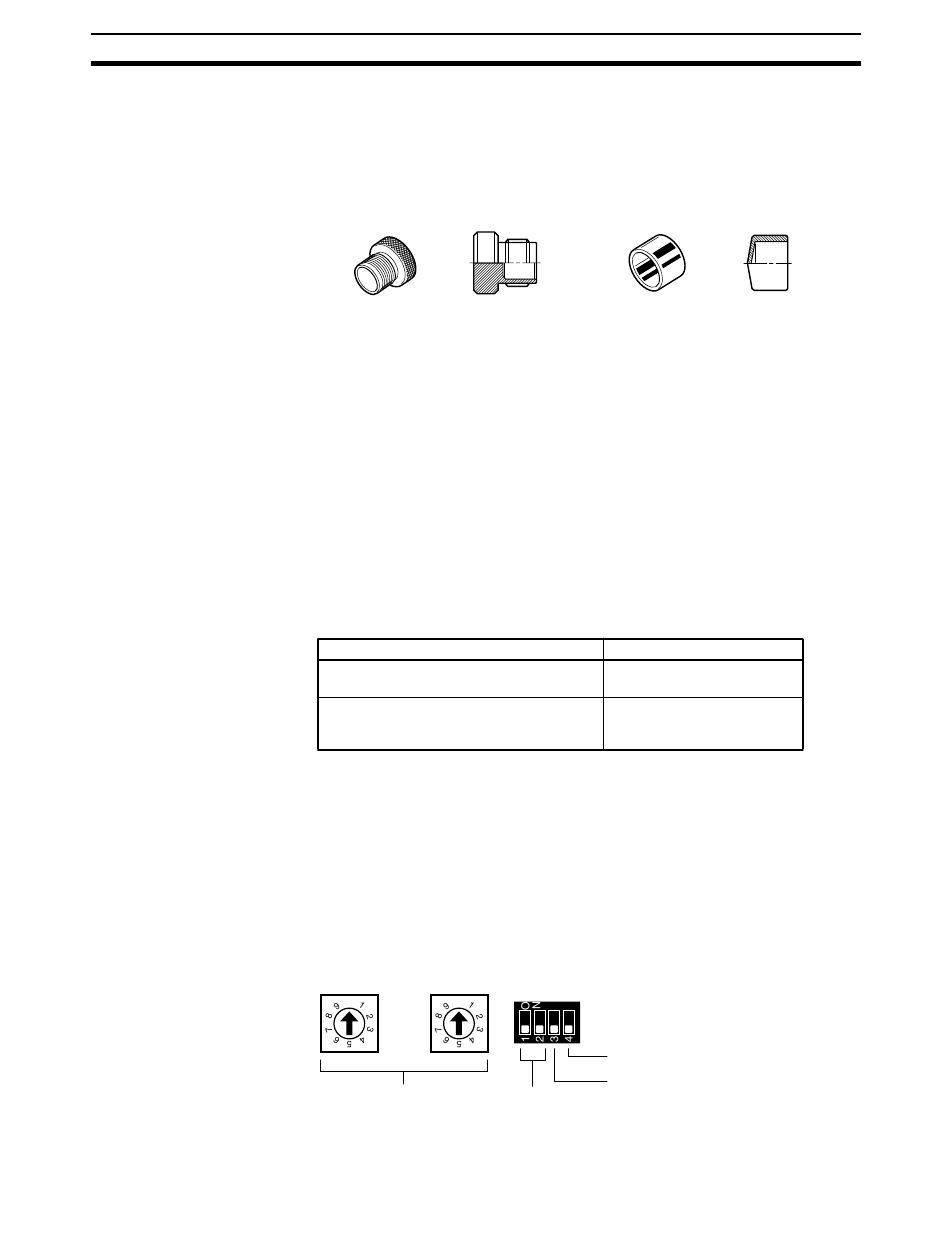

Always cap unused connectors with an XS2Z-12 Waterproof Cover or XS2Z-
15 Dust Cover, shown in the following diagram.
XS2Z-12 Waterproof Cover
The connector will meet IP66
standards if a Waterproof Cover is
attached. Tighten the connector by
hand to a torque of 0.39 to 0.49 N ⋅ m.
Maintaining Environmental Resistance
• The IP66 environmental resistance level will be lost if the surfaces where
the contact block and cover meet are subjected to excessive force. Pro-
tect the contact block and cover from excessive force or shock.
• The IP66 standard is lower than waterproof standards. Do not submerge
the system components.
• The body of the components is plastic resin. Do not place objects on the
components or allow the components to be stepped on.
There are two kinds of wiring for OMRON 2-wire Proximity Switches (pre-
wired with connector). One kind has IEC pin allocation (M1GJ type) and the
other has OMRON pin allocation (M1J type). Refer to the following table to
determine the appropriate Environment-resistive Terminal to use with each
kind of switch.
Proximity Switch
IEC pin allocation (M1GJ type)
OMRON pin allocation (M1J type)
This section describes the node address setting, baud rate setting, and the
hold/clear outputs for communications error setting. These settings are com-
mon to all of the Waterproof Terminals and are made on the shown in the fol-
lowing diagrams.
Node address setting:
Baud rate setting:
Output hold/clear setting:
0 0
Node address setting Baud rate setting
XS2Z-15 Dust Cover
Press the Dust Cover onto the
connector firmly. The Dust Cover
will protect the connector from dust,
but does not meet IP66 standards.
Compatible Terminals
DRT1-HD16C-1
DRT1-MD16C-1
DRT1-ID08C
DRT1-HD16C
DRT1-MD16C
Rotary switches
Pins 1 and 2
Pin 4 (affects only outputs)
Output hold/clear setting for
communications errors (for outputs)
Reserved (Always OFF.)
