Environment-resistive Terminals (IP66)

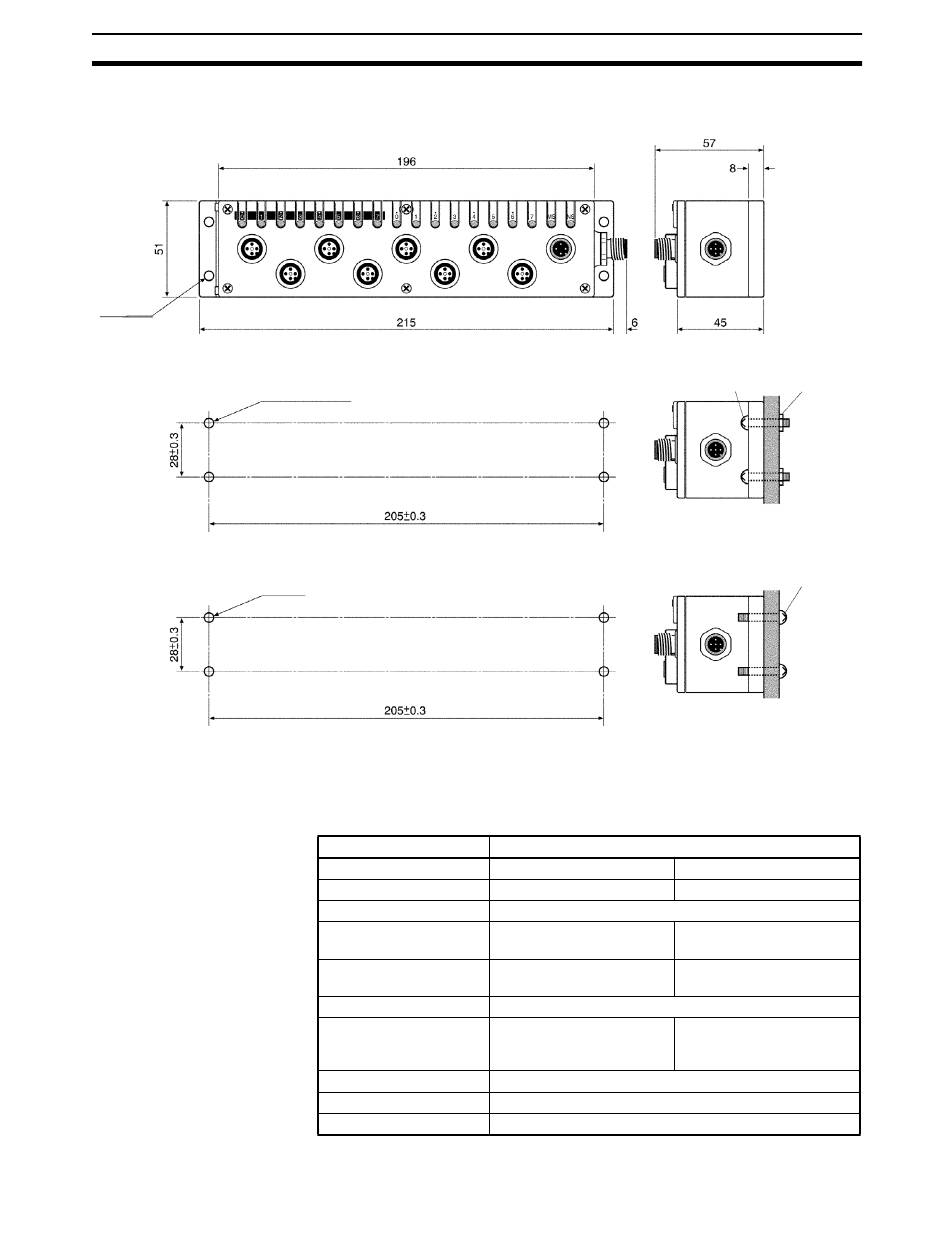

Dimensions
Four, M5
Mounting Holes
When screw mounting
from the front
When screw mounting
Four, 5.4 dia.
from the rear
5-3-3 Environment-resistive Terminal (IP66) with 16 Transistor Inputs:
DRT1-HD16C (NPN) and DRT1-HD16C-1 (PNP)
Input Specifications
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
The following diagram shows the dimensions for the DRT1-ID08C Environ-
ment-resistive Terminal. All dimensions are in mm.
Four, 4.2 dia. or M4
Item
Model
Internal I/O common
Input points
ON voltage
OFF voltage
OFF current
Input current
ON delay time
OFF delay time
Number of circuits
Mounting screw
Specification
DRT1-HD16C
NPN
16 points
15 V DC min. (between
each input terminal and V)
5 V DC max. (between
each input terminal and V)
1 mA max.
6 mA max./point at 24 V DC
(between each input termi-
nal and V)
1.5 ms max.
2.5 ms max.
16 points with one common
Section 5-3
Nut
Mounting
screw
DRT1-HD16C-1
PNP
15 V DC min. (between
each input terminal and G)
5 V DC max. (between
each input terminal and G)
6 mA max./point at 24 V DC
(between each input termi-
nal and G)
183
