Omron DeviceNet CV Series Operation Manual page 81

Transistor Remote I/O Terminals with 3-tier I/O Terminal Blocks
Components of the DRT1-ID16T and DRT1-ID16T-1
Rotary switches (Refer to page 62.)
Set the node address.
DIP switch
Pins 1 and 2: Baud rate setting
Pins 3 and 4: Reserved (Always OFF.)
DRT1-ID16T
REMOTE TERMINAL DC24V
ON
DR0 DR1 NC NC
Communications
connector
Internal power supply terminals
Internal Circuits
V−
CANL
Physi-
cal
DRAIN
layer
CANH
V+
SOURCE
24V DC
+
SOURCE
24V DC
−
64
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
(Refer to page 62.)
DeviceNet Indicators
(Refer to page 312.)
0 1 2 3 4 5 6 7 8 9
MS
NS
DIN track mounting hooks

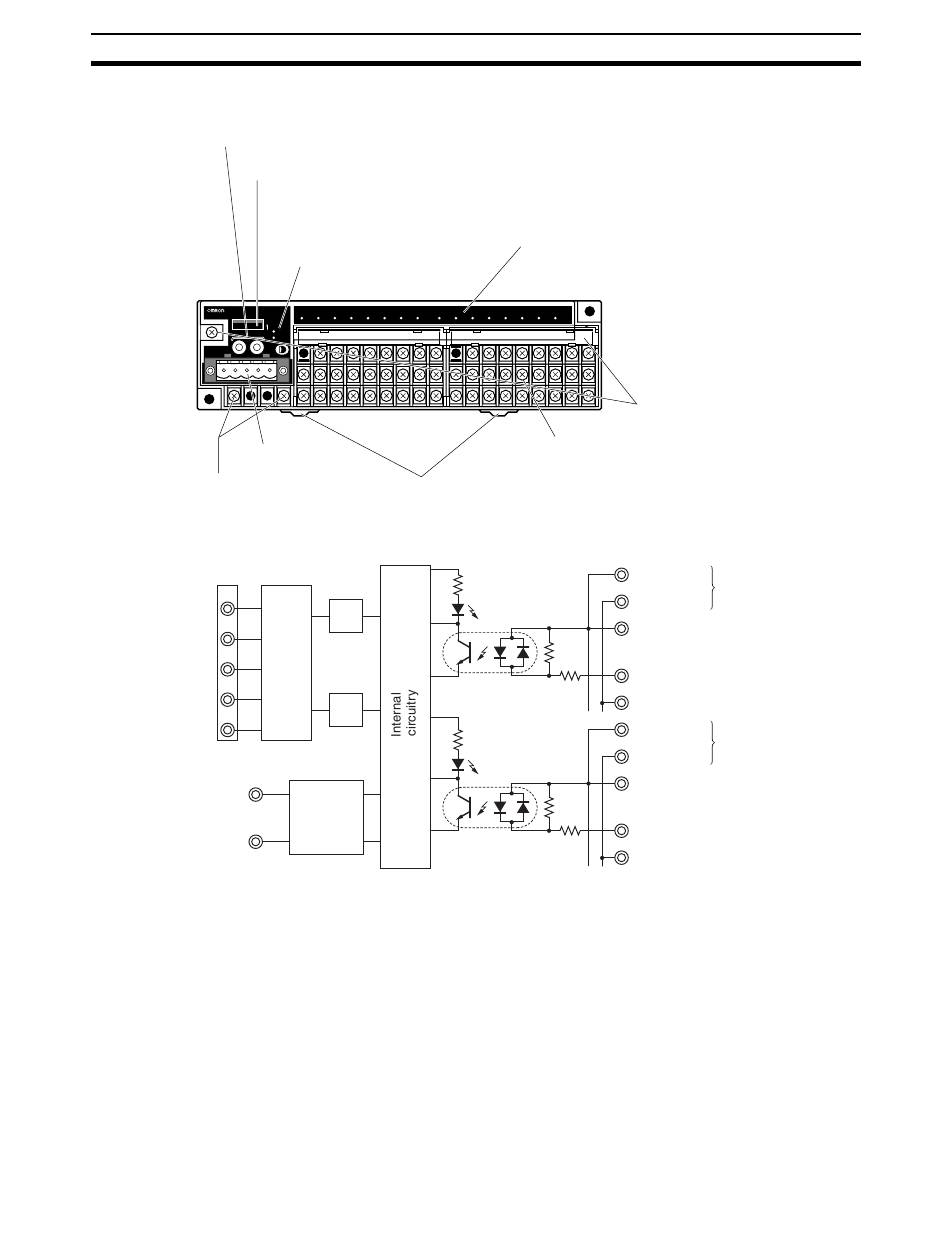

The following diagram shows the internal circuits for the DRT1-ID16T Remote
