Components - Omron DeviceNet CV Series Operation Manual

C200H I/O Link Units
Communications
Specifications
6-1-5

Components

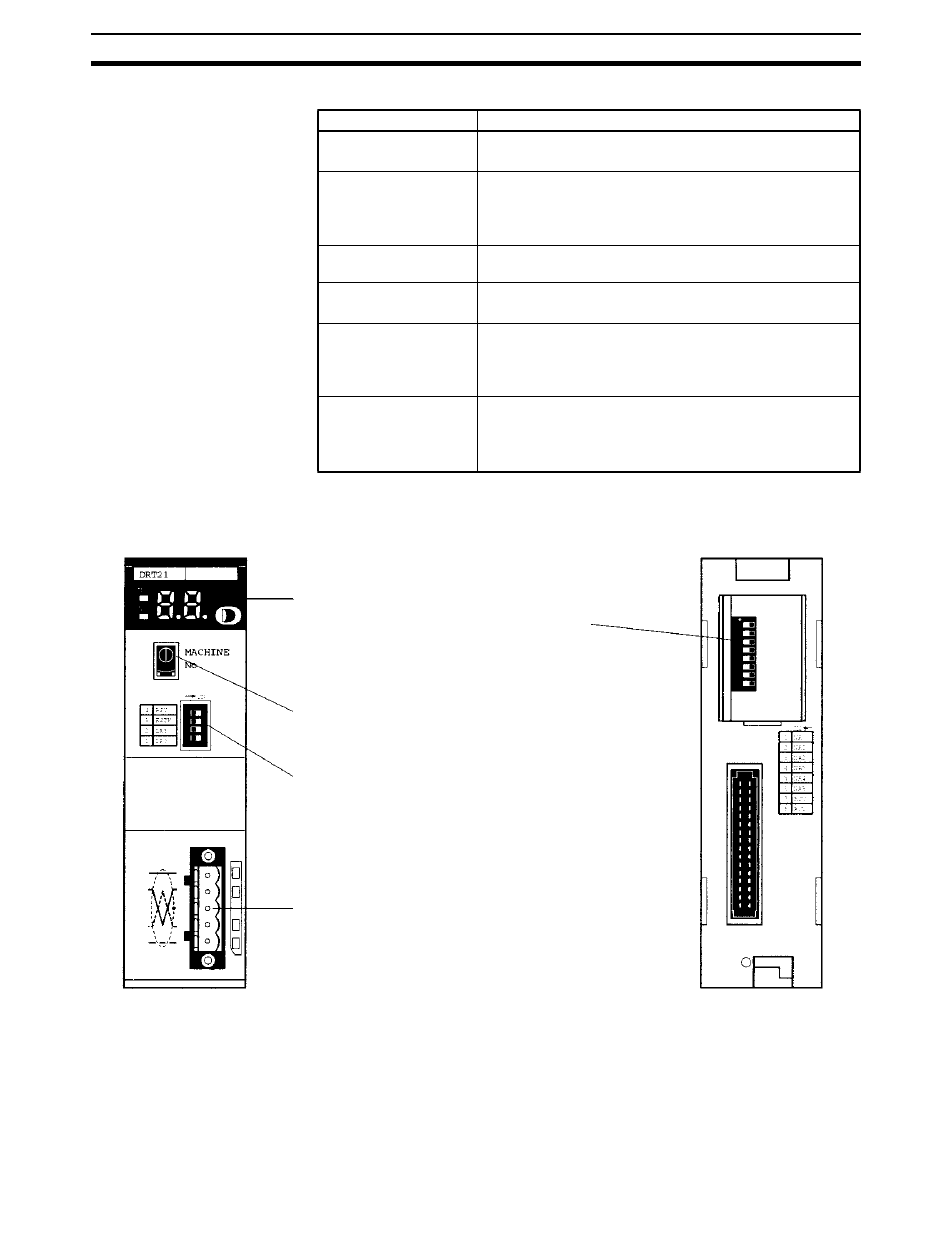

Front panel
232
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Item
I/O points
Memory areas that can
be allocated
Default allocation area
Maximum message
length
Settings
Indicators
Indicators
DIP switch (Rear panel)
Pins 1 to 6: Node address
Pins 7 and 8: Reserved (Always OFF.)
Rotary switch
Sets the Unit No. as a
single-digit hexadecimal
DIP switch (Front panel)
Pins 1 and 2: Baud rate
Pin 3: Hold/Clear Write Area data for communications error
Pin 4: Reserved (Always OFF.)
Communications connector
Specification
Input: 512 points max. (32 words)
Output: 512 points max. (32 words)
C200HX/HG/HE:
CIO, DM, HR, AR, LR, TIM/CNT, and EM (bank 0 only)
CS1H/CS1G:
CIO, D, H, T (PVs), and EM (bank 0 only)
Write area: One word, IR 350
Read area: One word, IR 50
Read: 200 bytes
Write: 200 bytes
Rotary switch: Unit number (Machine No.)
Rear panel DIP switch: Node address
Front panel DIP switch: Baud rate, Hold/Clear Write
Area data for communications error.
MS, NS indicators (2-color):
7-segment display (2-digit:):
Dot indicators:
Section 6-1
Unit status
Node address, error codes
Read/Write Area, default
settings
Rear panel
