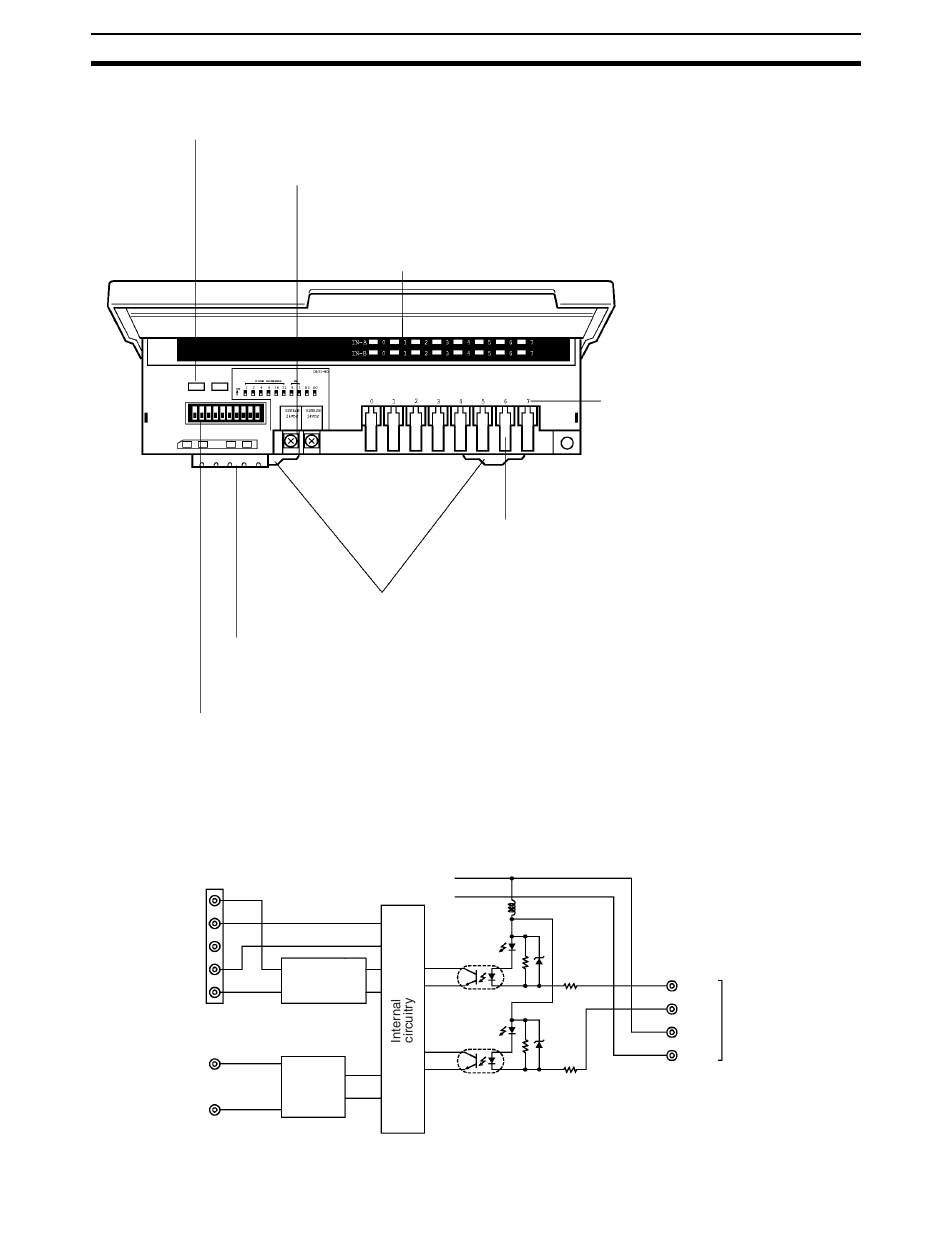

Sensor Terminals
Components
DeviceNet Indicators
(Refer to page 312.)
Power supply terminals
Communications connector
DIP switch
(Refer to page 40.)
Pins 1 to 6: Node address setting
Pins 1 to 6: Node address setting
Pins 7 and 8: Baud rate setting
Pins 7 and 8: Baud rate setting
Pin 9: Reserved (Always OFF.)
Pin 9: Reserved (Always OFF.)
Pin 10: Hold/clear o tp ts for comm nications error
Pin 10: Hold/clear outputs for communications error
Internal Circuits
V+
CAN H
DRAIN
CAN L
V–
SOURCE
24 V DC +
SOURCE
24 V DC –
130
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
I/O indicators
Indicate the status of each contact. (Lit when the input or output is ON.)
I/O connectors
Connect the special connectors from the sensors here.
(The special connectors are attached to the sensor's cable.)
DIN track mounting hooks
The following diagram shows the internal circuits for the DRT1-ND16S Sensor
Terminal.
V
G
Non-isolated
power supply
Isolated
power
supply
Section 4-7
Word address
Indicates the word which the
sensor uses.
IN
OUT
Terminals for
one sensor
V
G
