Remote Adapters
Note
Setting Pins 9 and 10
4-6-2

Remote Input Adapters with 16 Points:

DRT1-ID16X (NPN) and DRT1-ID16X-1 (PNP)

Input Specifications
112
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
1. Always turn OFF the Slave's power supply (including the communications
power supply) before changing the baud rate setting.
2. Set the same baud rate on all of the nodes (Master and Slaves) in the Net-
work. Any Slaves with baud rates different from the Master's rate won't be
able to participate in communications. Furthermore, a node with an incor-
rect baud rate may cause communications errors between nodes with cor-
rect baud rate settings.

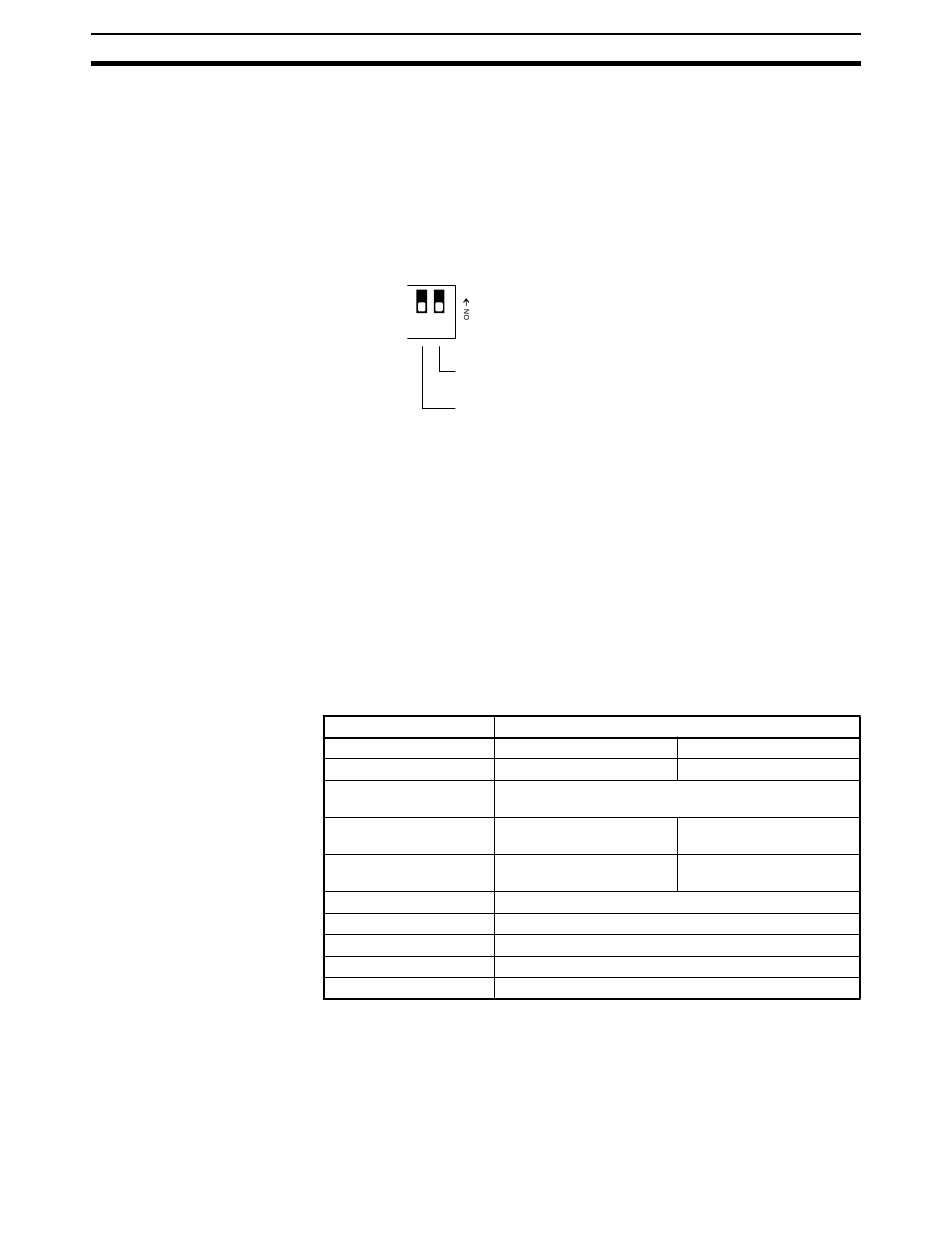

The functions of pins 9 and 10 differ for inputs and outputs, as shown in the
following diagram.
9 10
Input: Not used (Always OFF)
Output: Hold/Clear outputs for communications error
Reserved: Always OFF
Pin 9: Reserved (Always OFF)
Pin 10: As follows:
Inputs: No function (Always OFF)
Outputs: Hold/Clear outputs for communications error
OFF (Clear): All output data from the Master will be cleared to 0 when a
communications error occurs.
ON (Hold): All output data from the Master will be retained when a
communications error occurs.
Pins 9 and 10 are factory-set to OFF.
Item
Model
Internal I/O common
Input points
ON voltage
OFF voltage
OFF current
Input current
ON delay time
OFF delay time
Number of circuits
Specification
DRT1-ID16X
NPN
16 points (Try to use fewer than 8 points over an average
5 minute time span.)
15 V DC min. (between
each input terminal and V)
5 V DC max. (between
each input terminal and V)
0.8 mA max.
10 mA max./point
9 ms max.
14.5 ms max.
8 points with one common
Section 4-6
DRT1-ID16X-1
PNP
15 V DC min. (between
each input terminal and G)
5 V DC max. (between
each input terminal and G)
