RS-232C Units
25315
25315
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Delimiter code
ETX code: 03 Hex
Number of bytes received after delimiter:0
If any of the port parameters are changed, the changed settings will become
valid only when the port is reset or the RS-232C Unit is started up again. In
the following programming example, the ports are reset after the parameters
are set.

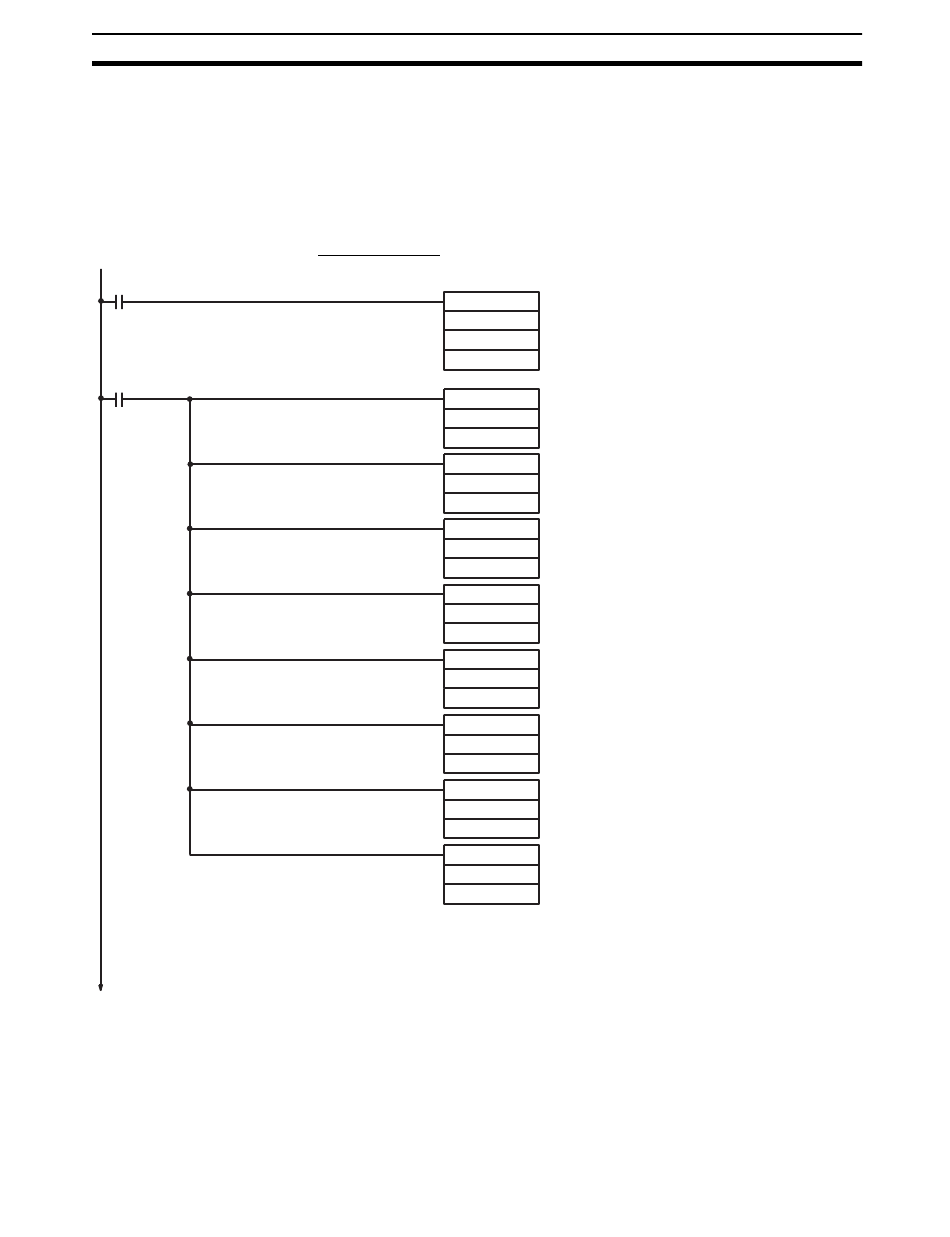

Ladder Program
BSET(71)
MOV(21)
MOV(21)
MOV(21)
MOV(21)
MOV(21)
MOV(21)
MOV(21)
MOV(21)
Clears the DM Area words being used when the
program starts.
#0000
DM0000
DM0999
Port 1 and 2 parameter setting common data
#8200
DM0000
Response storage word: DM 0100
(82 Hex: DM; 0064 Hex: word 100; 00 Hex: Word
data)
#6400
DM0001
Response monitoring time: 10 s
#0064
DM0002
Number of command data bytes: 15 bytes
#000F
DM0003
EXPLICIT MESSAGE SEND command code (FINS):
2801 Hex
#2801
DM0004
Slave node address: 08
PARAMETER SET command service code: 10 Hex
#0810
DM0005
Class ID: 94 Hex
#0094
DM0006
Instance ID: 01 Hex
#0001
DM0007
Section 6-2
289
