Analog I/O Terminals
Dimensions
Mounting holes
4-8-3

Analog Output Terminal: DRT1-DA02

Specifications
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

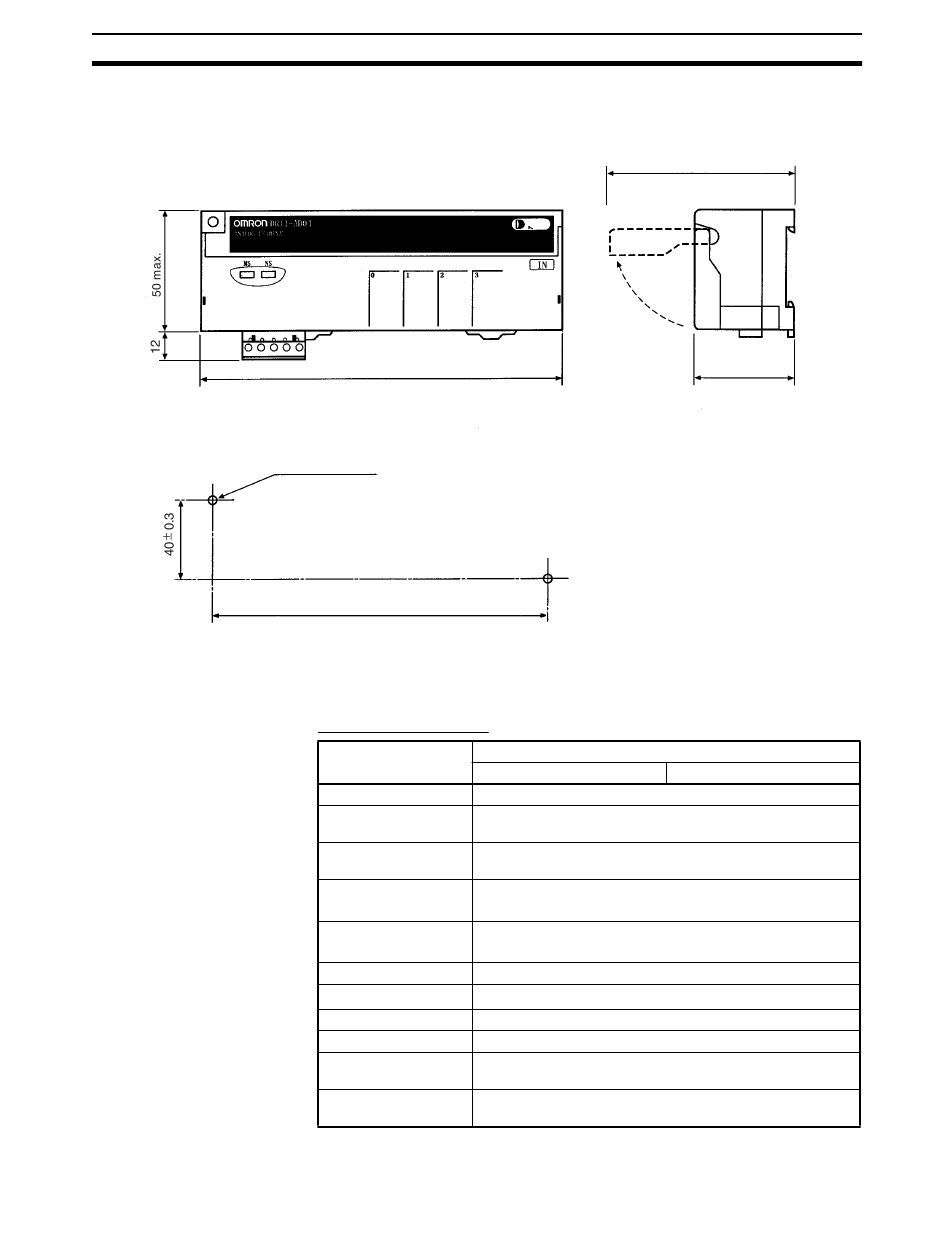

The following diagram shows the dimensions for the DRT1-AD04 and DRT1-
AD04H Analog Input Terminals. All dimensions are in mm.
(With connector attached)
150 max.
Two, 4.2 dia. or M4
±
140 0.3
General Specifications
Item
Output points
Communications
power supply voltage
Internal power supply
voltage
Current consumption
Noise immunity
Vibration resistance
Shock resistance
Dielectric strength
Insulation resistance
Ambient operating
temperature
Ambient operating
humidity
Specification
Voltage outputs
2 points (allocated two words in the Master Unit.)
11 to 25 V DC (supplied from the communications connec-
tor)
20.4 to 26.4 V DC (24 V DC −15% to 10%)
Communications: 30 mA max.
Internal circuit: 140 mA max.
±1.5 kV pulse width: 0.1 to 1 μs, pulse rise time: 1 ns (via
p-p,
noise simulator)
10 to 55 Hz, 1.0-mm double amplitude
2
200 m/s
500 V AC for 1 min (between insulated circuits)
20 MΩ min. at 250 V DC (between insulated circuits)
0 to 55°C
35% to 85% (with no condensation)
Section 4-8
Approx. 73
40 max.
Current outputs
