Environment-resistive Terminals (IP66)
Installation Direction
5-3-8

Wiring Internal Power Supplies, I/O Power Supplies, and I/O Lines

Wiring the Internal Power
Supply and I/O Power
Supply
Note
I/O Wiring
198
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

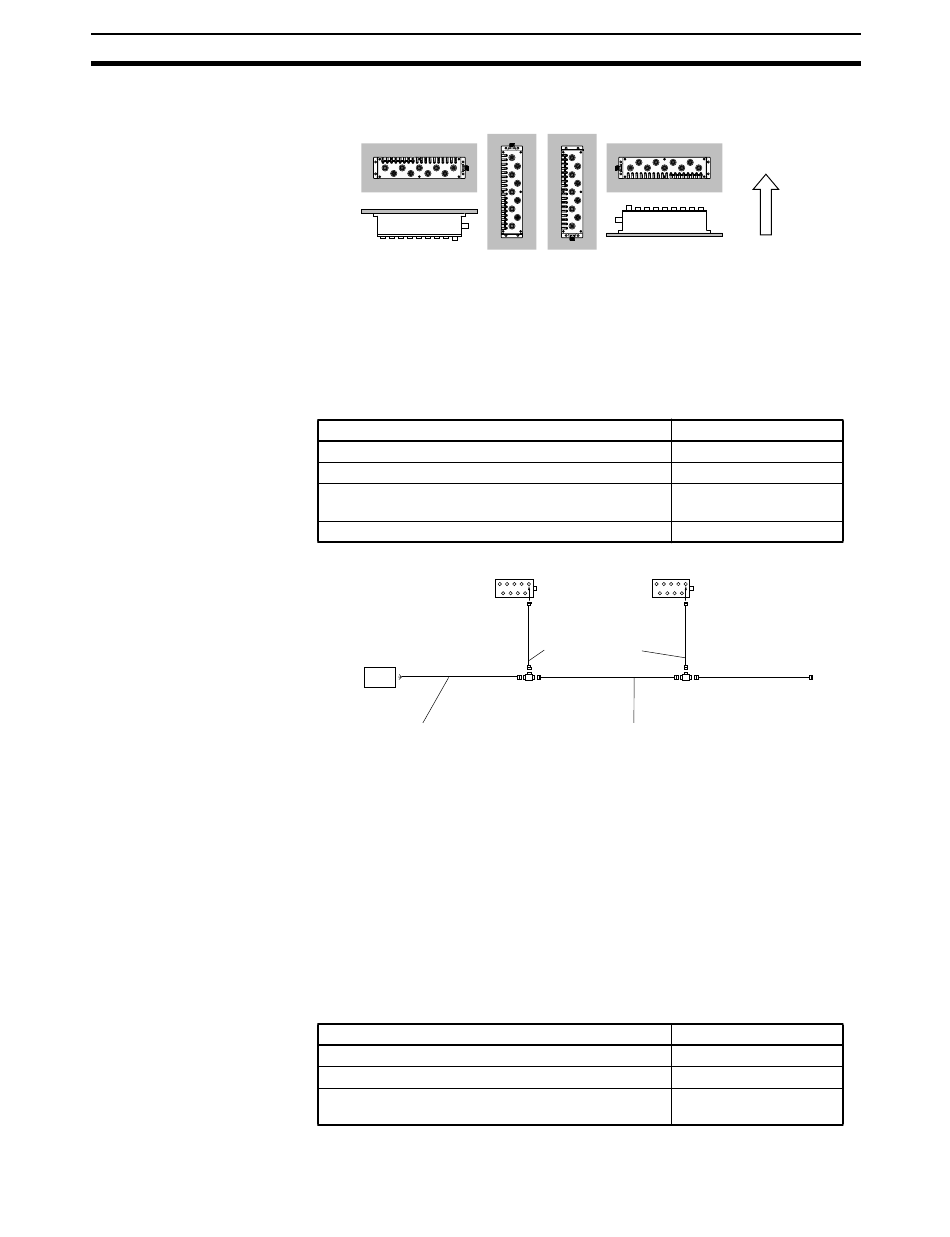

The Terminal can be mounted in any direction. Any one of the following 6
directions is acceptable.
The internal power supply and I/O power supply are supplied from the exter-
nal power supply connectors. Connect the external power supply to the Termi-
nal with an XS2-series Round Waterproof Connector listed in the following
table.
Compatible Connectors
Connector
Cable with connectors on both ends (socket and plug)
Cable with connector on one end (female socket)
Connector socket assembly (female)
(Crimp-connector or solder type)
T-joint
DRT1-OD08C
XS2R-D427-5
Power
T-joint
supply
XS2F-D42@-@80-@ Cable with
shielded socket on one end
1. Tighten the connector by hand to a torque of 0.39 to 0.49 N ⋅ m. If the con-
nector is not tightened sufficiently, it will not provide the expected environ-
mental resistance and may come loose from vibration. Do not use pliers or
other tools to tighten the connectors, because the tools may damage the
connectors.
2. The same I/O power supply can be used for both input and output devices,
but the noise from the output devices may cause the input devices to mal-
function. Use separate power supplies if possible.
Connect the I/O Wiring to the Environment-resistive Terminal with the XS2-
series Round Waterproof Connectors listed in the following table.
Compatible Connectors
Connector
Cable with connector on one end (male plug)
Cable with connectors on both ends (socket and plug)
Connector plug assembly (male)
(Crimp-connector or solder type)
Model number
XS2W-D42@-@81-@
XS2F-D42@-@80-@
XS2C-D4@@
CS2R-D427-5
DRT1-ID08C
Shared I/O and
Shared I/O and
internal power supply internal power supply
XS2W-D42@-@81-@
Cables with shielded
socket on one end
and plug on the other
XS2R-D427-5
T-joint
XS2W-D42@-@81-@ Cable
with shielded socket on one
end and plug on the other
Model number
XS2H-D421-@80-A
XS2W-D42@-@81-A
XS2G-D4@@
Section 5-3
Vertical
