Mounting In Control Panels - Omron DeviceNet CV Series Operation Manual

Transistor Remote I/O Terminals
Dimensions
REMOTE TERMINAL 24VDC
MS NS
0 1 2
Mounting holes
4-3-7

Mounting in Control Panels

Using Screws
Using DIN Track
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
2. Line colors have been changed accompanying changes in JIS standards
for photoelectric and proximity sensors. Previous colors are given in paren-
theses.

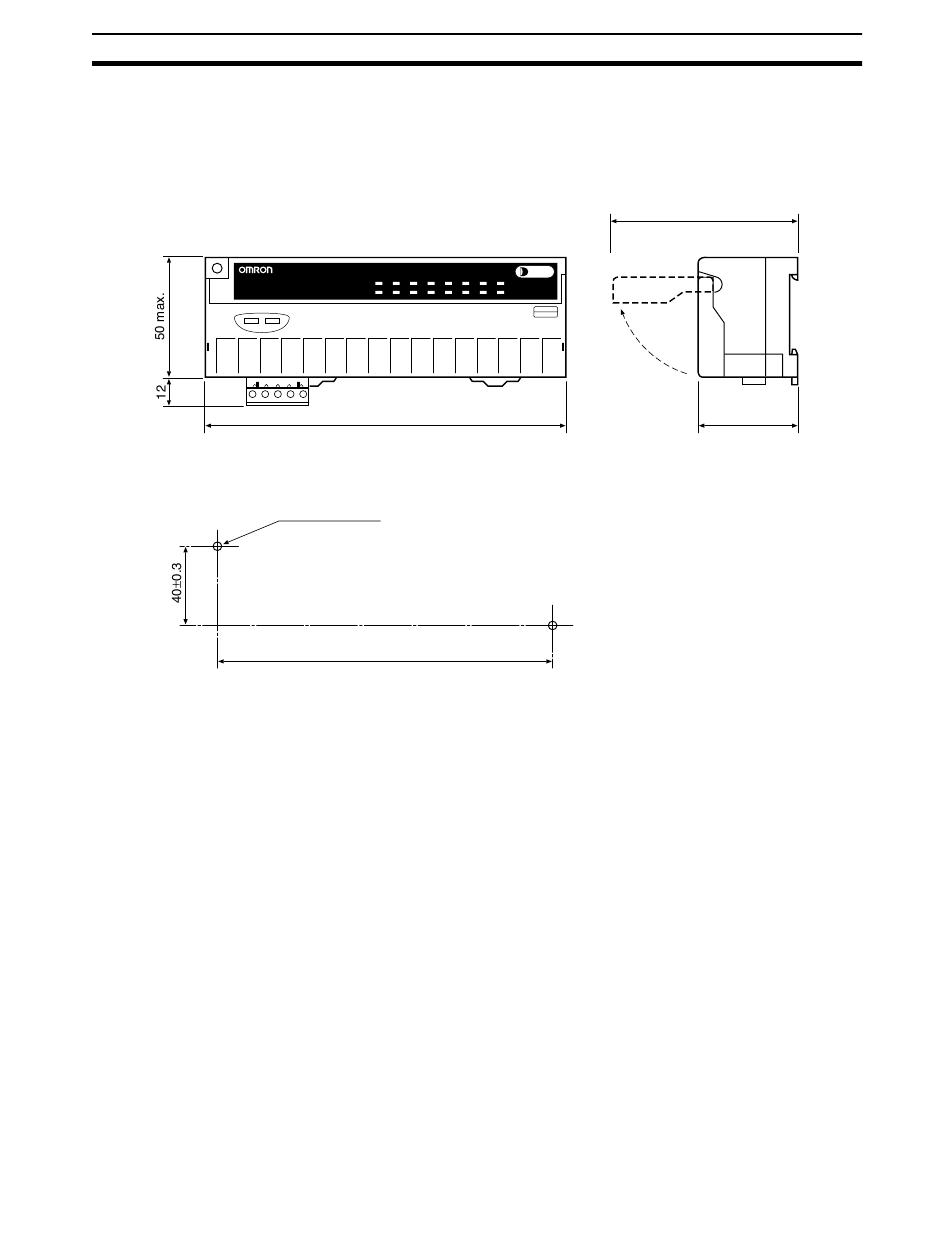

The following diagram shows the dimensions for the DRT1-MD16 Remote I/O
Terminals. All dimensions are in mm.
(With connector attached)
DRT1-MD16
1 3 5 7
0 2 4 6
3 4 5 6 7 0 1 2
150 max.
Two, 4.2 dia. or M4
140±0.3
Either of the following methods can be used to mount an Remote I/O Terminal
in a control panel.
Open mounting holes in the control panel according to the dimensions pro-
vided for mounting holes in the dimensions diagrams and then secure the
Remote I/O Terminal with M4 screws. The appropriate tightening torque is 0.6
to 0.98 N ⋅ m.
Mount the back of the Remote I/O Terminal to a 35-mm DIN Track. To mount
the Terminal, pull down on the mounting hook on the back of the Terminal with
a screwdriver, insert the DIN Track on the back of the Terminal, and then
secure the Terminal to the DIN Track. When finished, secure all Slaves on
both ends of the DIN Track with End Plates.
No.
1 3 5 7
0 2 4 6
IN
OUT
3 4 5 6 7
Section 4-3
Approx.73
40 max.
59
