Omron DeviceNet CV Series Operation Manual page 74

Transistor Remote I/O Terminals
Output Specifications
Model
Internal I/O common
Output points
Rated output current
Residual voltage
Leakage current
ON delay time
OFF delay time
Number of circuits

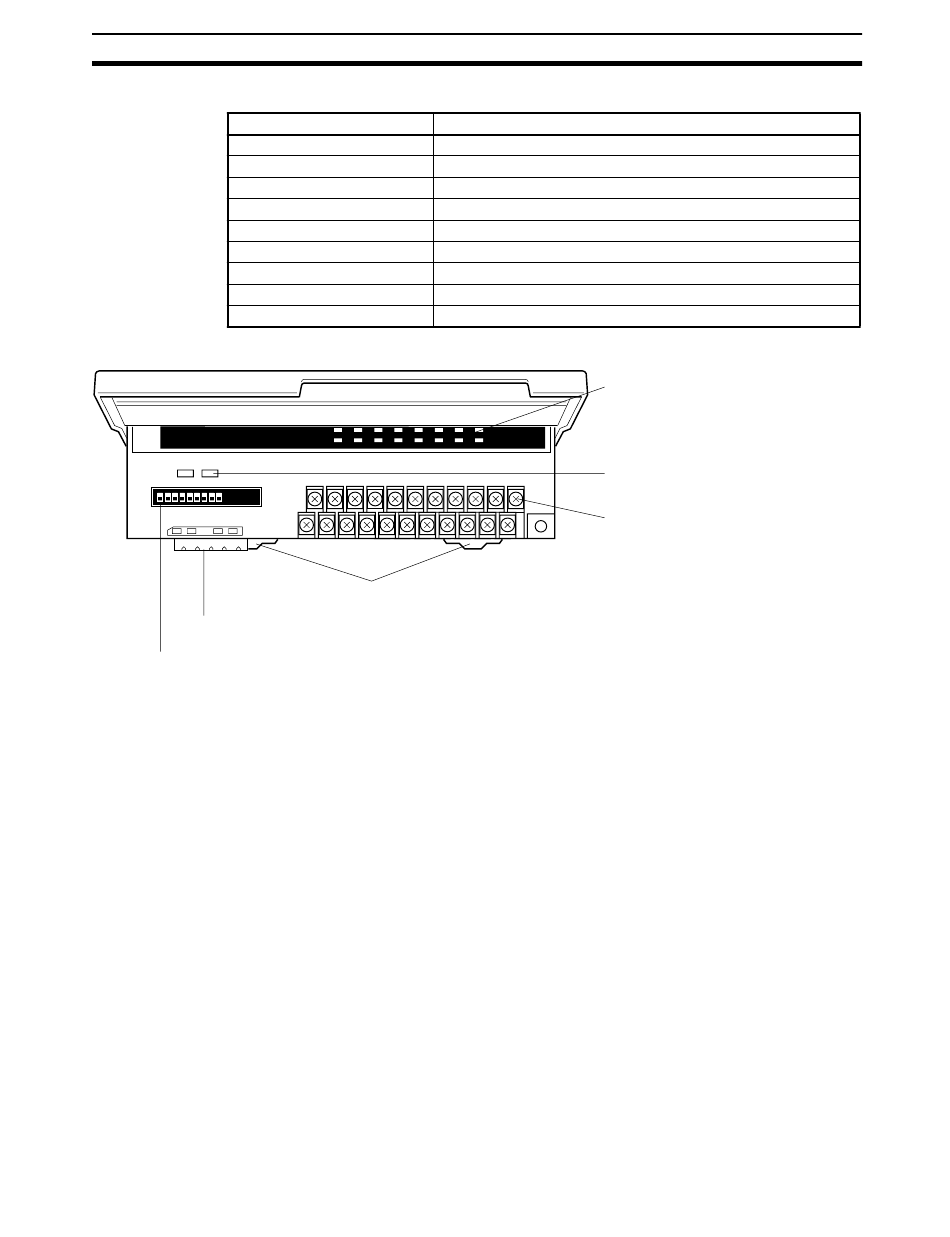

Components
Communications connector
(Refer to page 40.)
DIP switch
Pins 1 to 6: Node address setting
Pins 7 and 8: Baud rate setting
Pin 9: Reserved (Always OFF.)
Pin 10: Hold/Clear outputs for communications error
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Item
DRT1-MD16
NPN
8 points
0.3 A/point, 2.4 A/common
1.2 V max. (at 0.3 A, between each output terminal and OUT G)
0.1 mA max.
0.5 ms max.
1.5 ms max.
8 points with one common
1 3 5 7 9 11 13
0 2 4 6 8 10 12
DIN track mounting hooks
Specification
I/O Indicators
Indicate the status of each input and output.
The left half are for inputs; the right half are
for outputs. (Lit when the input or output is
15
ON.)
14
DeviceNet Indicators
(Refer to page 312.)
Terminal block
Section 4-3
57
