Overview of DeviceNet
1-1-2 Slaves
Type Cable Name
Transistor
Remote I/O Ter-
minals
Transistor
Remote I/O Ter-
minals with 3-
tier I/O Terminal
Blocks
8
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
DeviceNet Slaves are classified as follows:
• General-purpose Slaves
Slaves with I/O functions that use a normal connector to connect the com-
munications cable.
• Environment-resistive Slaves
Slaves with I/O functions that use a round, water-proof connector to con-
nect the communications cable.
• Special I/O Slaves
Slaves with functions other than I/O functions (such as message commu-
nications) that use a normal connector to connect the communications
cable.

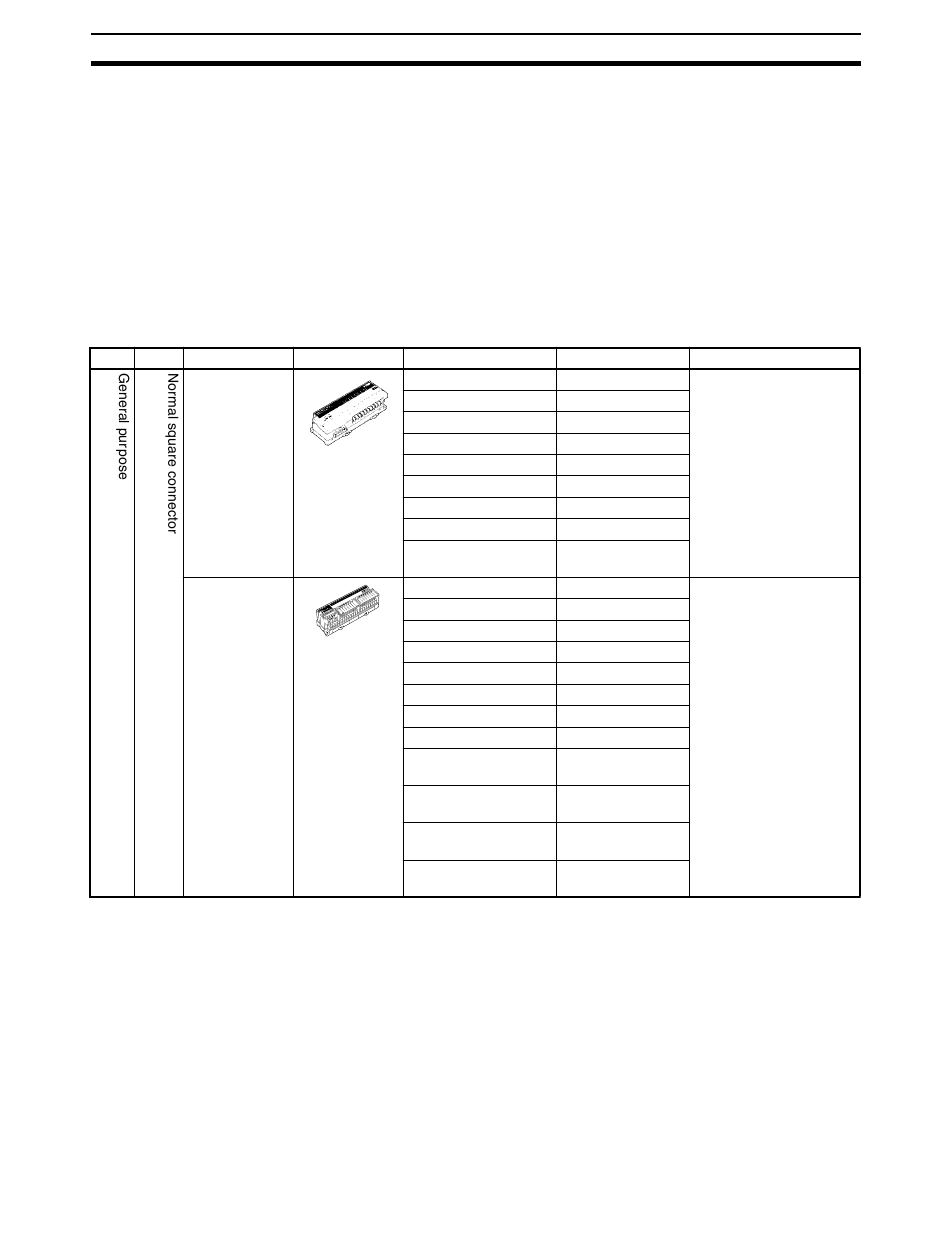

Appearance I/O points
8 input points, NPN
8 input points, PNP
16 input points, NPN
16 input points, PNP
8 output points, NPN
8 output points, PNP
16 output points, NPN DRT1-OD16
16 output points, PNP
8 input/8 output points,
NPN
16 input points, NPN
16 input points, PNP
16 input points, NPN
16 input points, PNP
16 output points, NPN DRT1-OD16T
16 output points, PNP
16 output points, NPN DRT1-OD16TA
16 output points, PNP
8 input/8 output points,
NPN
8 input/8 output points,
PNP
8 input/8 output points,
NPN
8 input/8 output points,
PNP
Model
DRT1-ID08 ---

DRT1-ID08-1

DRT1-ID16

DRT1-ID16-1

DRT1-OD08

DRT1-OD08-1

DRT1-OD16-1
DRT1-MD16
DRT1-ID16T Easy wiring (no need to
double-wire terminals
DRT1-ID16T-1
and wiring locations are
DRT1-ID16TA
easy to understand)
DRT1-ID16TA-1
Separate power supply
not needed for the DRT1-
@D16TA (same power
DRT1-OD16T-1
supply used as communi-
cations power supply).
DRT1-OD16TA-1
DRT1-MD16T
DRT1-MD16T-1
DRT1-MD16TA
DRT1-MD16TA-1
Section 1-1
Features
