Remote Adapters

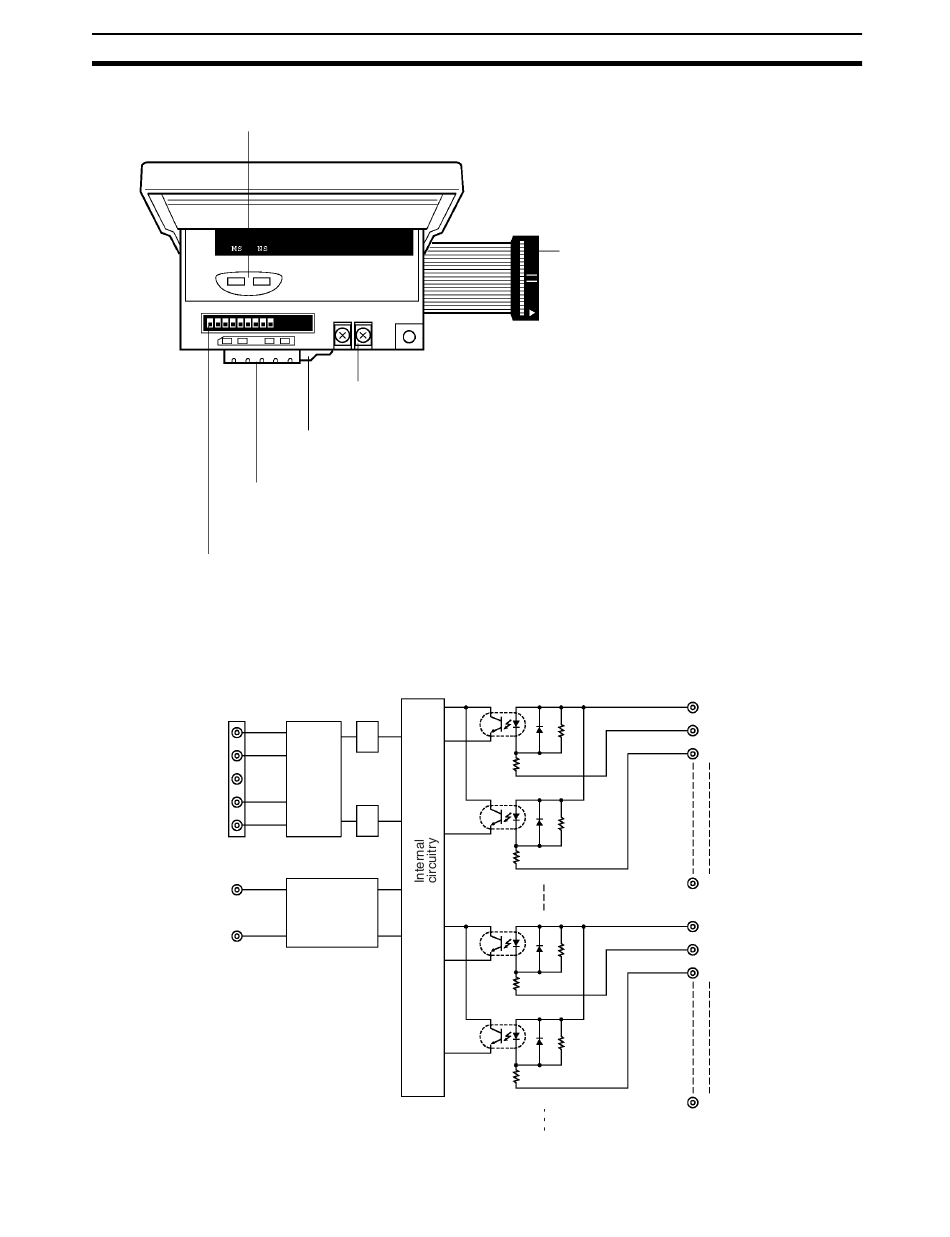

Components of the DRT1-ID16X and DRT1-ID16X-1
DeviceNet Indicators
Communications connector
DIP switch
(Refer to page 40.)
Pins 1 to 6: Node address setting
Pins 7 and 8: Baud rate setting
Pins 9 and 10: Reserved (Always OFF.)
Internal Circuits
V+
CAN H
DRAIN
CAN L
V–
SOURCE
24 V DC +
SOURCE
24 V DC –
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
(Refer to page 312.)
Power supply terminals
DIN track mounting hooks
The following diagram shows the internal circuits for the DRT1-ID16X Remote
Input Adapter.
Photo-
coupler
Physical
Photo-
layer
coupler
DC-DC
converter
(Isolated)
MIL socket flat cable connector
Connect the input power supply and input
devices such as switches and sensors
through an MIL-type flat cable connector.
Photocoupler
Photo-
coupler
Photocoupler
Photo-
coupler
Section 4-6
V0
24 V DC
0
1
G0
V1
24 V DC
8
9
G1
113
