Wiring Internal Power Supplies, I/O Power Supplies, and I/O Lines

Wiring the I/O Power
Supply
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Connecting End Plates

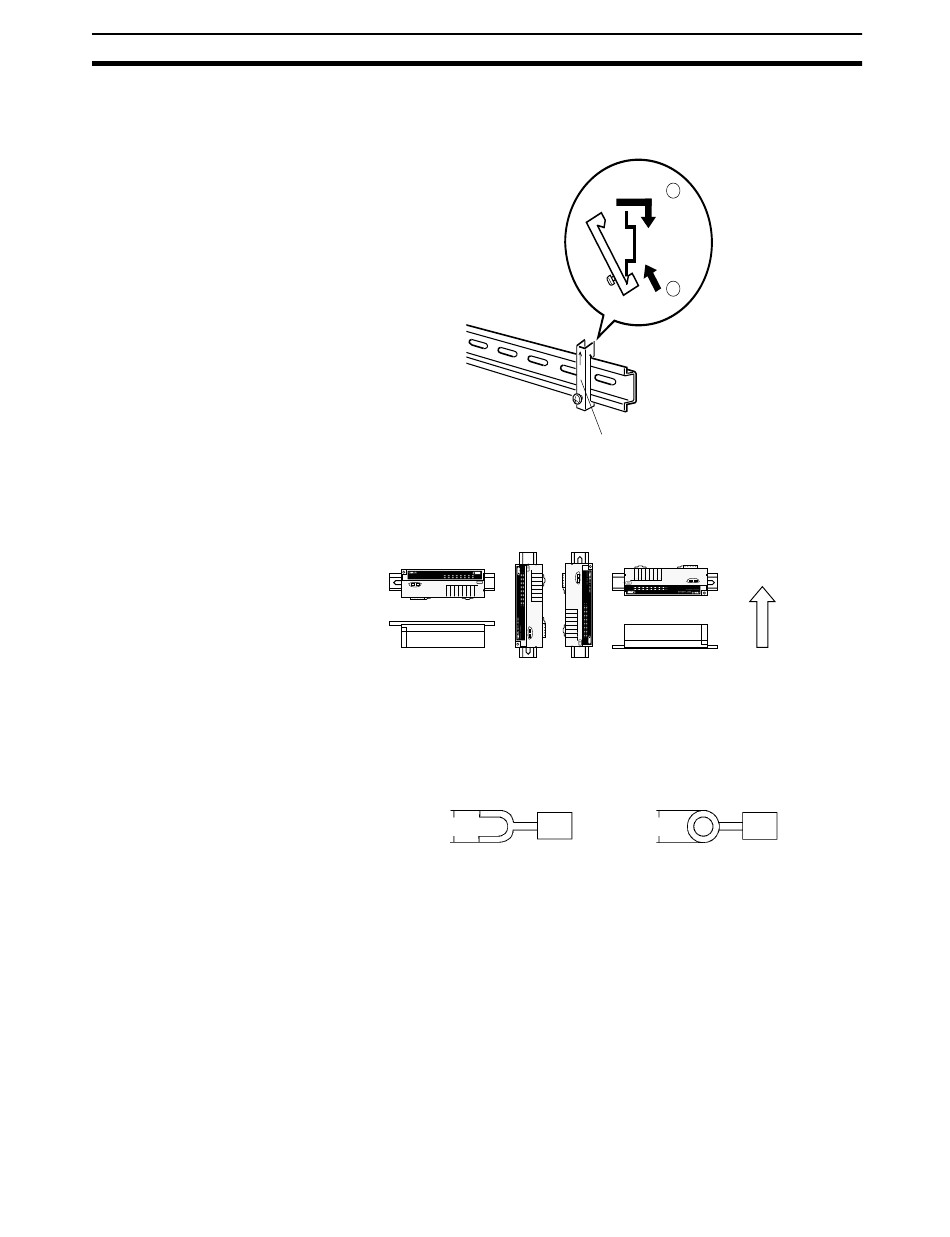

Hook the bottom of the End Plate onto the DIN Track, as shown at (1) in the
following diagram, then hook the top of the End Plate as shown at (2).
Note Always attach End Plate to both ends of Slaves connected to DIN Track.
Unless specific restrictions are given for the Slave, it can be mounted in any
direction. Any of the following directions are okay.
DRT1-HD16S
SENSOR TERMINAL
IN-A 0 1
IN-B 0 1
MS NS
0 1
The internal circuit power supplies, I/O power supplies, and I/O lines are all
wired to M3 screw terminals. Connect M3 crimp terminals and then connect
them to the terminal block. Tighten the screws fixing the crimp terminals to a
torque of 0.3 to 0.5 N ⋅ m.
6.0 mm max.
End Plate
No.
2 3 4 5 6 7
2 3 4 5 6 7
IN
2 3 4 5 6 7
6.0 mm max.
Section 4-7
2
1
Vertical
